1000 Watt Work Area LED Light Tower - Quadpod Mount - 7-12' Height - Temporary Construction Lighting


Sale price$14,821.99


Specifications / Additional Information
WAL-QP-2X500LTL-LED-100 Work Area LED Quadpod Quick Summary
Lamp Type: CREE LED 1000 Watt Metal Halide Replacement
Dimensions:  7` to 12` Extendible Tower 98% Transmission High Purity PMMA Optics
Weight: 105 Lbs Multiple LED Banks for Heat Dispersion
Voltage: 90-305 Volts AC, 50/60Hz or 127-431V DC 120 Lumens Per Watt Efficiency
Total Watts: 1,000W 70% Lumen Retention after 80,000 Hours
Total Lumens: 120,000 UL1012 Compliant
Luminous Efficiency: 120 Lm/W UL60950-1 Compliant
Lamp Life: 80,000+ Hours CE Certified & RoHS Compliant
Color Rendering Index: >75 CRI IP67 Rated Waterproof
Beam Angle:10° Spot, 24° Wide Spot, 38° Narrow Flood, 60° Flood, or 90° Wide Flood Dual 500 Watt, 120,000 Lumen LED Light Head
LED Color Temperature: Cool White - 5600K 70,000 Square Foot Coverage
Optics Efficiency: 98% - PMMA High Transmittance Optics Adjustable Tower Mount - 7`-12`
Power Efficiency: >90% Adjustable LED Light Head
Led Drive %: 90% 100` 6/3 SOOW Cord
Amperage: 8.34A @ 120V, 4.17 @ 240V, 3.61A @ 277V Multiple Plug Options Available
Ambient Operating Temp Range: -40° C to +80°C
Housing Materials: Die Cast Aluminum Housing, PMMA Optics
Mounting: 1/8" Thick, Aluminum Square Tube Quadpod - 168" Height Toll Free: 1-800-369-6671
Wiring: 100` 16/3 SOOW Cable Intl: 1-903-270-1187
Cord Cap: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail E-mail:
' Product Overview '

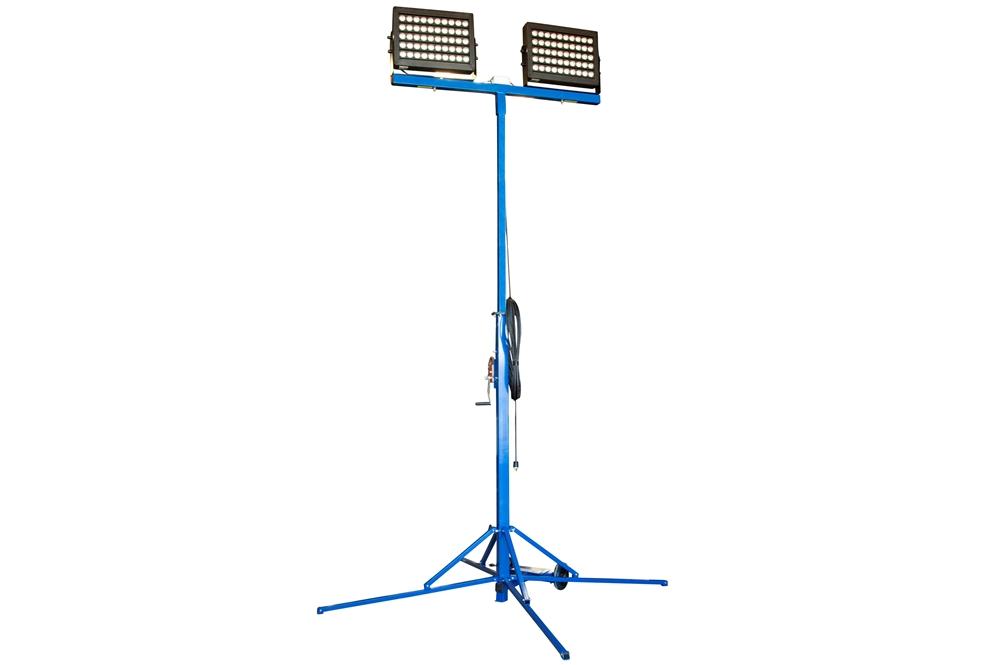

Made in Texas The WAL-QP-2X500LTL-LED-100 Quadpod Mounted LED Work Area Light from Larson Electronics produces 120,000 lumens and is equipped with 100 of SOOW cable. This LED light tower is designed for portability and durable operation and ideal for use in demanding conditions. Dual 500 Watt LED light heads cover up to 70,000 square footage. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS, LIGHT TOWERS, OR QUADPODS* The WAL-QP-2X500LTL-LED-100 is a quadpod mounted work area LED light and provides 120,000 lumens of light output. Dual LED light heads, each containing forty-eight CREE® high output LEDs producing 1250 lumens each are arranged in rows and paired with PMMA high purity optics to produce a well focused 25° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 38° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. This portable LED light is comprised of two adjustable LED light heads mounted atop a four leg quadpod fabricated from powder coated aluminum. This adjustable and collapsible quadpod can be extended to twelve feet, collapsed to seven feet, and includes solid wheels allow the operator to tilt the unit back and simply roll the entire assembly to a new location when fully deployed. The LED light fixture assembly can be removed by releasing the hand knob and sliding the light and mounting bracket off of the center support while the legs can be collapsed, aiding in deployment, storage and transport. The lamp can be easily adjusted vertically and locked into position. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Lights: The lighting system on this unit is comprised of two 500 watt LED lamps producing 120,000 lumens of light attached to the top of the mini light tower. The GAU-LTL-500W-LED LED lights are ideal replacements for fragile and hot running 1000 watt metal halide lamps, offering increased durability, longer lamp life, and lower power consumption. The fixtures are IP67 rated waterproof. The LED assembly is comprised of multiple LED "strips" within the housing. This design allows for in-the-field serviceability without the need for special tools or equipment. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours. In addition, should an LED failure occur, these LED flood lights are field serviceable. Each bank of six LEDs can be replaced with the fixture installed. This allows for the tower to stay in operation until repairs can take place, and eliminates the need to remove and disassemble the entire fixture for repairs. Durability: As well as unparalleled heat control, the GAU-LTL-500W-LED series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The CREE® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,0000 hours of use. We use these LED lights for applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.
Click Photo to Enlarge
Mounting: This portable LED light is comprised of an adjustable LED light head assembly mounted atop a four leg quadpod fabricated from light weight aluminum tubing. The quadpod is adjustable in height, from 7` to 12` telescoping, and included solid wheels allow the operator to tilt the unit back and simply roll the entire assembly to a new location when fully deployed. The LED light fixture assembly can be removed by releasing the hand knob and sliding the light and mounting bracket off of the center support while the legs can be collapsed, aiding in deployment, storage and transport. The lamp can be easily adjusted vertically and locked into position. The light head is equipped with a stainless steel trunnion style mounting bracket that allows the light to be attached to be adjusted through 360° of vertical movement. Voltage: The drivers in this unit provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These light towers can operate on current ranging from 90 to 305V AC or 127 to 431V DC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring and Plug: This tower mounted LED flood lighting system is equipped with 100` of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. The LED light head on this unit is small enough to allow it to fit through large manholes and entry points. The LED light head can also be removed from the quadpod, the quadpod collapsed and the entire assembly passed through a manhole and reassembled once inside. This unit is multi-voltage capable and configured to operate on 120-277 volts 50/60 Hz. This LED light head retains 70% of its lumen output after 80,000 hours of use, far longer than incandescent or fluorescent lamps.
Made in USA Quality Superior LED Benefits
1.Heavy duty aluminum tube tower construction. 2. Led lamp head requires no lamping and simply slides on the quadpod and is locked into place with a hand tightened set screw.  3. Quadpod constructed of heavy duty 1/8" thick steel. 4. No ballast box. No ballast to replace.  5. Extreme long life LEDs reduce maintenance and replacement costs. 6. Solid rubber tires. No flats or tube replacements.  7. LED Light Output Comparable to 500 Watt Metal Halide. 8. 120,000 Lumens produced from only 500 watts. 9. Mercury free shock proof  LED lamp light head. 1. 80,000+ hour lifespan. 2. Can SAVE 50% or more on energy. 3. 100% recyclable. 4. No toxins-lead, mercury. 5. No UV light, infrared radiation or CO2 emissions. 6. Bright, even light maintains consistent color over time. 7. Instant on/off – No flickering, delays or buzzing. 8. Very good color rendering. 9. Vibration/impact resistant. 10. Significantly cooler operation. 11. Less frequent outages, higher output improves workplace safety.
