Portable LED Tower-Spot/Flood- (4) White (2) IR - Rechargeable Li-ion Battery - Tower Mount

LARSON ELECTRONICSSKU: PL3-WAL-QP-RPS-6XLED-8EVIR-2XIR.4XVW
filler

Price:
Sale price$25,683.99

Description

Specifications / Additional Information
WAL-QP-RPS-6XLED-8EVIR-2XIR.4XVW Portable LED Tower Ratings/Features
Unit Type: Portable LED Tower (4) White Lamps, (2) IR Lamps
Dimensions: 6.25"-L 3"-H 3.56"-D (Lamp Only) Native IR (No Cut-off Filters)
Weight: 85 Lbs 70% Lumen Retention @ 65,000 hours
Voltage: 9-46V DC RoHS Compliant
Watts: 144 (24W per Lamp) IP68 Waterproof to 3 Meters
Lamp Configuration: (4) Visible White Lamps [Top], (2) Infrared Lamps [Bottom] Independent Flood/Spot Selection
Lumens: 8,640 (1,440 lm per Lamp) Vertical/Horizontal Adjustment
LED Life Expectancy: 50,000+ Hours Travel Case for Battery Pack
IR Wavelength Options: 750 nm, 850 nm or 940 nm Low Amp Draw, Low Heat
Beam Configuration: Flood (Top 4 Lamps), Spot (Bottom 2 Lamps)
IR Beam Distance: 500` - Flood, 1000` - Spot
Optics Efficiency: 90%
Amps: 12A/hr @ 12V
Ambient Operating Temp: -40C to +80C
Materials: Aluminum, Polycarbonate
Mount: 7` to 12` Quadpod w/ (4) 4` Legs, (2) Solid Wheels
Battery Type: Rechargeable Lithium-ion
Battery Capacity: 160aH
Runtime: 12+ Hours
Charger: Integrated 120V or 240V charger
Receptacles: (2) 5-15R/5-20R Outlets, (2) USB outlets
Wiring: 15` 16/3 SOOW from battery box
Cord Cap: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail
CE Certified 3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.
' Product Overview '

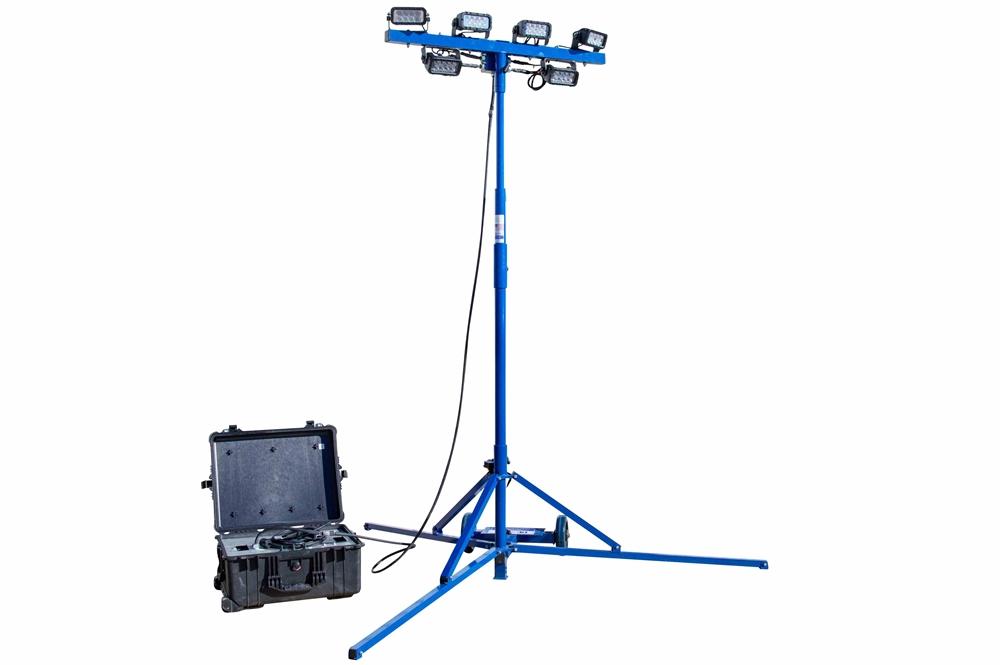

Buy American Compliant The Larson Electronics WAL-QP-RPS-6XLED-8EVIR-2XIR.4XVW Portable LED Tower is a superior visible light/infrared lighting solution for rugged environments. This unit features six LED lamps (four visible white LED lamps on top, two infrared LED lamps at the bottom) mounted on a quadpod, which is capable of reaching heights between 7` and 12`. The LED lamps are powered by a rechargeable lithium-ion battery pack, which provides a runtime of 12 hours when fully charged. Infrared wavelength options include: 750 nm, 850 nm or 940 nm. The WAL-QP-RPS-6XLED-8EVIR-2XIR.4XVW offers both visible white light and infrared illumination in various positions and elevations. Consisting of four visible white LED lamps on top and two infrared LED lamps at the bottom (total of six LED lamps), the battery-powered unit produces 8,640 lumens and consumes 144 watts during operation. The top four white LED lamps emit a flood beam configuration, capable of reaching 500`. The bottom two infrared LED units emit a spot beam configuration, capable of reaching 1,000`. All LED lamps can be adjusted vertically or horizontally and support independent operation. This LED light tower is powered by a rechargeable lithium-ion battery pack. In a fully charged state, the power cells can sustain all six lamps for 12+ hours. The 160aH battery pack comes with an integrated charger and a rugged travel case. Unlike low-quality infrared LED lamps on the market today, the infrared lights on this unit support native infrared features. As a result, cut-off filters are not needed and reliability is greatly enhanced. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
WAL-QP-RPS-6XLED-8EVIR-2XIR.4XVW 35° Flood Beam (Opt) WAL-QP-RPS-6XLED-8EVIR-2XIR.4XVW 10° Spot Beam (Stnd)
Durability: The luminaries can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters (IP68) and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are unbreakable polycarbonate. The Edixeon® LEDs offer inherent LED resistance to shocks and vibrations contributing to these units 15.6Grms rating of vibration tolerance. We recommend these LED lights for high stress - high vibratory conditions, high humidity climates, very cold areas and rough saltwater conditions. They are also well suited for environments where equipment is used in one temperature extreme and stored in another temperature extreme. Mount: The WAL-QP-RPS-6XLED-8EVIR-2XIR.4XVW features a four-leg quadpod mount, fabricated from powder coated aluminum. This adjustable and collapsible quadpod can be extended to twelve feet, collapsed to seven feet, and includes solid wheels that allow operators to tilt the unit back and simply roll the entire assembly to a new location when fully deployed. Applications: Outdoor security systems, surveillance, law enforcement, industrial operations, surveying, nighttime monitoring, camera systems, rescue operations, military, covert operations, construction and more.
