General Area Use LED String Light - (6) 160W LED Fixtures - 115,200 Lumens - Inline Transformer

General Area Use LED String Light - (6) 160W LED Fixtures - 115,200 Lumens - Inline Transformer

$15,370.00 CAD
$15,370.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
WAL-SL-6X.2FT-GAU48-160W-54V-20C-TXF LED String Light Unit Features
Lamp Type: LED 1:1 Direct Replacement for 4` 4L T5HOs
Dimensions (Per Fixture):50"-L x 9"-W x 4"-H 50,000+ Hour LED Life Span
Weight: 75 lbs 80% Lumen Retention after 50,000 Hours
Weight (Per Fixture): 10 lbs Reduced Energy Consumption With Improved Output
Total Watts: 960 watts (160 per lamp) Vapor Proof
Voltage: 120-277V AC 50/60 Hz Stepped Down to 54V DC Vibration Shock Resistant
LED Qty: 448 LEDs IP65 Rated Waterproof
LED Rows: 7 Outdoor Approved
LED per Rows: 64 Daisy Chain Operation
LED Lamp Life Expectancy: 50,000+ Hours
Beam Angle: 160°
Luminous Efficiency: 160 lm/w
Total Lumens: 115,200 (19,200 per lamp)
Color Temp: 6000K
Ambient Temp Range: -30°C to +60°C
Power Efficiency: >90%
Power Factor: >0.95
Mounting: Eyehooks for Mounting
Wiring: 2` 10/4 SOOW Backbone b/t Each Light, 10` 16/3 SOOW b/t Transformer & Cord Cap, 20` 10/4 SOOW b/t Transformer & First Fixture Toll Free: 1-800-369-6671
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist. UK BS1363, Intl. Schuko, Pigtail Intl: 1-903-270-1187
Materials: Aluminum Housing / Polycarbonate Lens E-mail:
' Product Overview '

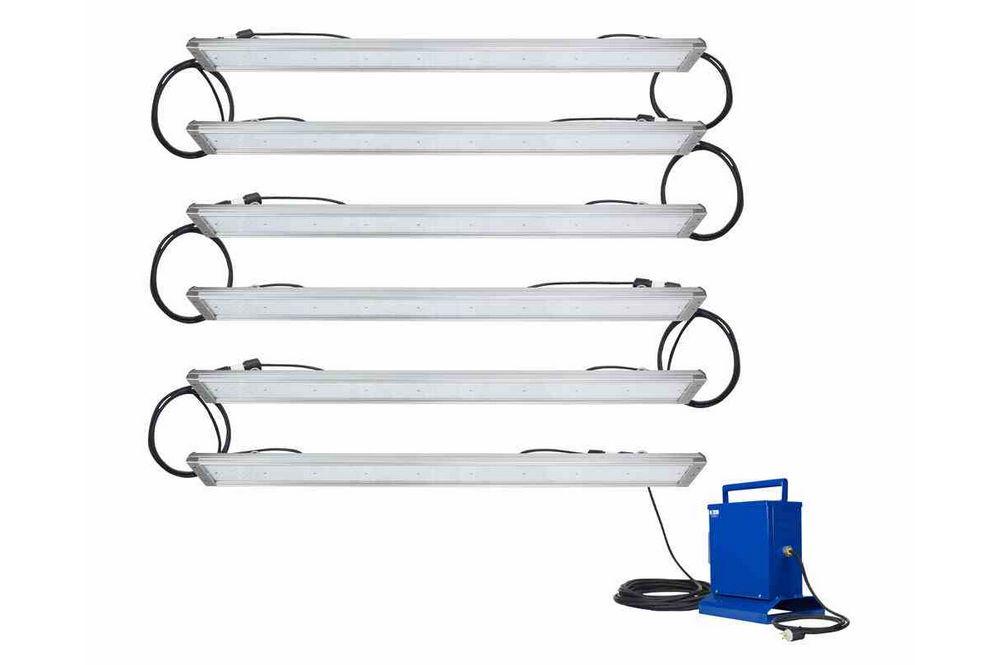

The WAL-SL-6X.2FT-GAU48-160W-54V-20C-TXF from Larson Electronics is a General Use LED String Light Fixture that offers operators six high-intensity LED light fixtures connected in a string light format for temporary or permanent wide area illumination. The WAL-SL-6X.2FT-GAU48-160W-54V-20C-TXF produces a total of 115,200 lumens of bright LED light and features an inline transformer that steps down 120-277V AC input voltage down to 54V DC voltage which each included fixture operates on. There is two feet of spacing between each fixture and twist lock connecters between each light fixture make for simple and fast disconnects. The WAL-SL-6X.2FT-GAU48-160W-54V-20C-TXF from Larson Electronics features six of our LED Light Fixtures. The GAU-48-160W-LED is a 4` linear integrated LED light fixture that provides 19,200 lumens of illumination. This low profile, highly efficient LED light fixture is a direct replacement for existing four lamp T5HO fixtures, providing twice the lamp life, increased durability, and less energy consumption. The energy efficiency and longevity of LEDs make this light option ideal for use in places requiring temporary or permanent high bay illumination such as warehouses and other similar environments. Each lamp is equipped with a diffused lens. The GAU-48-160W-LED integrated 160 Watt LED light fixture is a low profile linear light fixture that provides 19,200 lumens of bright light in a 160° wide flood beam spread. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. The GAU-48-160W-LED is housed in aluminum casing and the LED assembly is protected by a shatter resistant polycarbonate lens.
We have eliminated the ballast box normally associated with fluorescent fixtures which reduces overall weight and creates a slimmer unit profile. There is no ballast in this unit and the integrated LED assembly has a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. The solid state design of LED technology give this fixture superior resistance to damage from vibration, extremes in temperature, and a lamp life over twice that of standard fluorescent bulbs. The integrated heat sink allows for efficient heat dissipation, preventing the LEDs from overheating and keeping the overall temperature of the fixture relatively low. Solid state LED technology eliminates the need for a ballast box and lamps, a cumbersome feature of fluorescent fixtures that add weight and require frequent repairs. This low profile light fixture features two adjustable brackets, providing operators with easy installation and allowing for adjustments of the light assembly.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This general use high bay LED string light fixture is equipped with 10 feet of 16/3 chemical and abrasion resistant SOOW cord between the cord cap and inline transformer that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. The WAL-SL-6X.2FT-GAU48-160W-54V-20C-TXF also features 20 feet of 10/4 SOOW cable from the other side of the inline transformer to the first light fixture. This LED string light unit is equipped with a 10/4 SOOW backbone cable of which there is two feet between each light fixture. Twist lock connectors make it easy for operators to quickly disconnect and reconnect the LED fixtures. Mounting: The WAL-SL-6X.2FT-GAU48-160W-54V-20C-TXF LED fixtures are equipped with eyehooks which provide operators with flexibility in their mounting options. Suitable mounting techniques include operator provided straps, zipties, hooks or chains. The WAL-SL-6X.2FT-GAU48-160W-54V-20C-TXF light fixture is ideal for indoor-outdoor applications and suitable for use as general area lighting, shop lighting, work space lighting, garage and warehouse lighting, and anywhere a dependable and low maintenance fixture with high output and efficiency is needed.
Superior LED Benefits
1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off - No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
