LED Self Righting Light - 48 watts - 360° flood light - 120-277V Stepped Down to 24VDC - 100' SOOW


Sale price$3,085.99


Specifications / Additional Information
WAL-SRL-4X4LED-100-X24I Self Righting Flood Light System WAL-SRL-4X4LED-100-X24I  Features
Lamp Type: 4X LED Light Bars IP68 Rated Weatherproof & Waterproof
Dimensions: 3.5x2 Low Amp Draw
Total Watts: 48 Long 50,000 Hour LED Life
Lumens: 1,440 Single or Dual Switch Options
Voltage: 120-277 VAC stepped down to 24V DC CE Certified
Amps: 0.4A @ 120V AC
Lighting Configuration: 360° flood light
LED Light Color: 6000K
LED Life Expectancy: 50,000 Hours
Wiring:  100’ SOOW cable Toll Free: 1-800-369-6671
Unit Weight: 145lbs Total
Spot Beam: 120`L x 75`W
Flood Beam: 80`L X 90`W
' Product Overview '

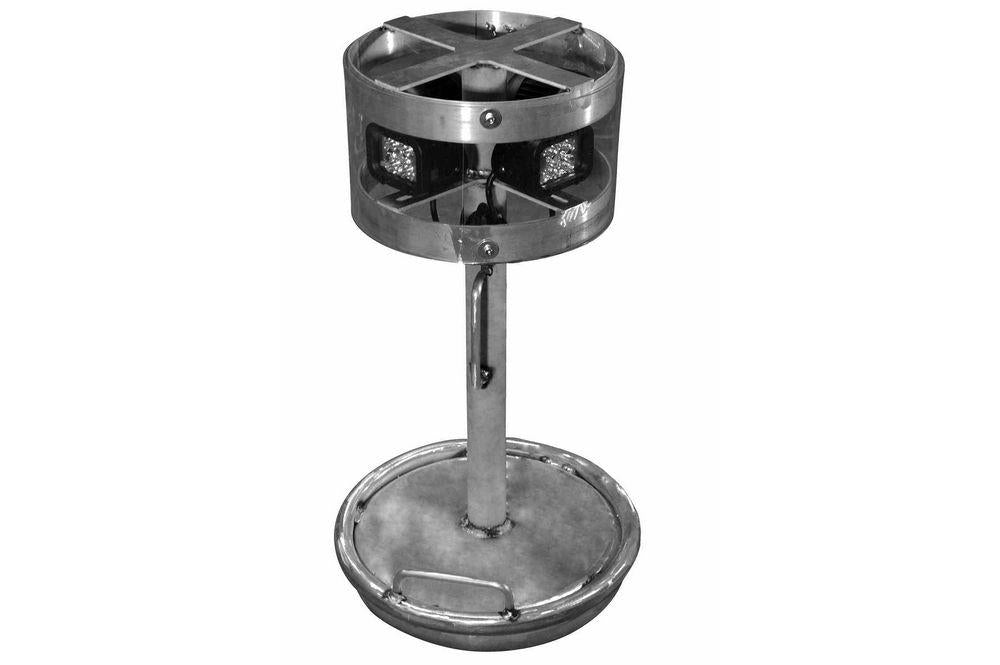

Buy American Compliant The Larson Electronics WAL-SRL-4X4LED-100-X24I Self-Righting Light consists of four LED lights with machined aluminum housing  mounted on the top of the frame to give a full 360° range of light. With its low center-of-gravity, the frame is built so that vibrations or solid knocks won`t tip this self-righting light over. This LED light system has an inline switch for on/off control and can be operated with 24 VDC The WAL-SRL-4X4LED-100-X24I Self-Righting Light contains four LED light heads that produce 720 lumens each with a combined 48 watts while drawing 2 amps from a 24 volt DC power source. Each light contains Four Seoul P4 3-Watt LEDs producing 180 lumens each are arranged in rows to produce high purity floodlights with 35 degree optics to produce a wider beam spread and more light over a larger area nearer the fixture, making flood versions ideal for use as work and area lights. We also offer 10 degree optics with a tightly focused spot beam with limited spread or light spillage. Choose your beam option when ordering. These LED lights are waterproof and have IP68 rated construction that is designed to withstand demanding environmental and operating conditions. These units can withstand frigid temperatures, are waterproof to three meters, and resist the ingress of dust, dirt and humidity. The housings on these units are formed from thick aluminum and the lenses are unbreakable polycarbonate. The Seoul P4 3-Watt LED Emitters offer high resistance to shocks and vibrations and are rated at 70% lumen maintenance after 50,000 hours of use. Durability:  These weatherproof LED lights have a durable powder coat finish, are IP68 rated waterproof to 3 meters, sealed against intrusion by dust and dirt, and very ruggedly constructed to withstand the most demanding environments, conditions and applications. Mounting: The heavy base of this self-righting portable flood light means that if the light is hit it or gets jarred, it will bounce back to its upright position. The weighted base and curved design provides operators with the assurance that they can work uninterrupted and not be concerned with accidentally knocking over the light source. Additionally, each LED light can be adjusted independently of the other to provide maximum coverage or maximum intensity. The aluminum construction and self-righting abilities makes this flood light system durable, reliable, and is ideal for construction and work site lighting. Power: The WAL-SRL-4X4LED-100-X24I is multi-voltage capable and configured to operate on 120-277 volts 50/60 Hz with inline transformer. The encapsulated AC to DC transformer steps 120-277V AC down to 24V DC. This transformer has 100 feet of oil and chemical resistant SOOW cable  on the output side that connects the LED light to the stepdown transformer, and 6 feet of SOOW cable on the input side of terminated in an industrial grade 5-15 plug. The inline transformer must be plugged in outside of the hazardous location.  Versatility: The easy deployment and multi-voltage capability of this self righting light makes it ideal for rapid deployment as a scene light for first responders to downed lines, main breaks or accidents. Other applications include temporary maintenance operations, tank cleaning, power washing and other maintenance applications where general area lighting is not available. Unlike our larger metal halide towers, these LED lights can be positioned next to the users. While our larger WAL-C-2XM 2000 watt metal halide lights on telescoping tripods cover more area, they are typically paired with large portable electrical distribution panels, transformers or diesel generators. The noise, fumes, heat and high wattage electrical cabling usually requires that the operator positions the portable light tower at some distance from the work area or event. While these LED lights produce less light coverage than the large metal halide lights, they can be placed right next to the work area, event or operators, so the overall effective illumination will be greater.
