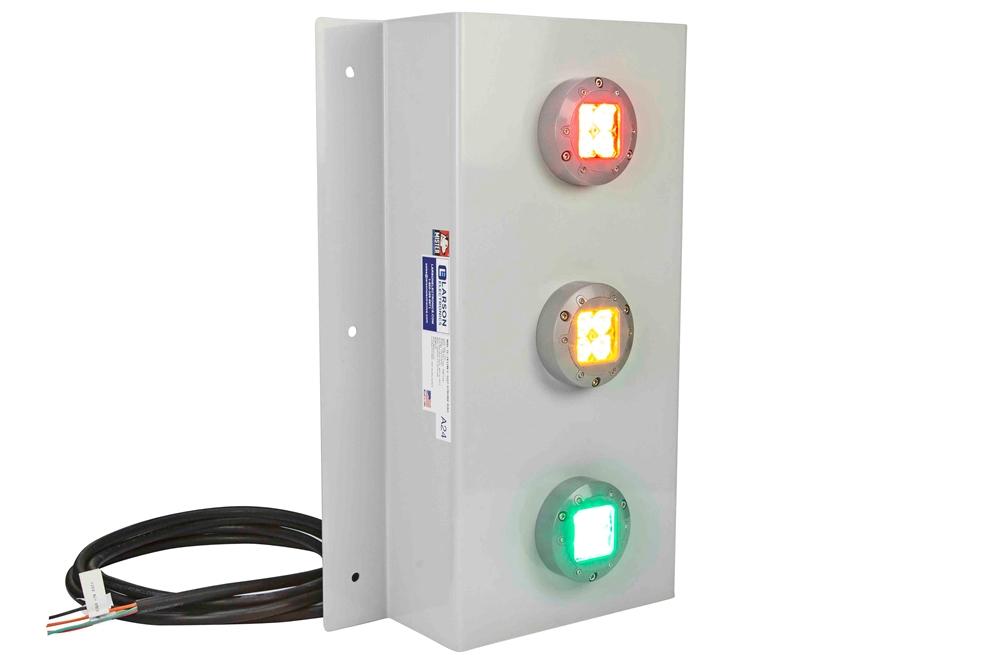

36 Watt LED Signal Stack Light - Red Yellow Green - NEMA 4X - Corrosion Resistant - 120-277

LARSON ELECTRONICSSKU: PL3-WAL-TL-3X12W-C-1227
filler

Price:
Sale price$2,689.99

Description

Specifications / Additional Information
WAL-TL-3X12W-C-1227 Features
Lamp Type: LED Red, Amber, and Green Lights
Colors: Red, Amber, and Green Low Profile
Dimensions: 24"-H x 10.25"-W x 4.25"-D Durable Aluminum Construction
Watts: 12 Watts Per Lamp - 36W Total Low Amp Draw
Voltage: 120-277 Volts AC IP68 (Waterproof)
Lighting Configuration: Steady Burn NEMA 4X
Mounting: Ceiling, Wall, Flat Surface
Wiring: 16 AWG leads
Lamp Life: 50,000+ Hours
Mounting: Predrilled Aluminum Base
Ambient Operating Temp: -40°C to +65°C

' Product Overview '
Made in the USA The WAL-TL-3X12W-C LED Signal Stack Light from Larson Electronics is also approved for use in wet locations and marine environments. This waterproof LED equipped light is designed for routing traffic in industrial refueling stations and process status indication in manufacturing facilities. The WAL-TL-3X12W-C LED traffic light is an ideal indicator lighting solution for industrial, marine, and manufacturing facilities. The light housings are fully sealed within a waterproof aluminum chassis that features a very small profile for easy and unobtrusive mounting in tight and space limited areas. The mounting plate is also made from aluminum and can be custom built to customer specifications. This multi-colored indicator light provides red, amber, and green light outputs, has a 50,000 hour operational life, and is available in 120-277 VAC. We also offer a 12/24 VDC configuration for low voltage operation.
These LED lights are fully sealed, weatherproof, and constructed of aluminum with stainless steel hardware for durability and corrosion resistance. The LEDs are housed within a hard anodized and powder coated aluminum chassis that provides excellent strength and durability. Power is provided by individual conductors to allow independent operation of each lamp, making this unit ideal for fuel depots and manufacturing facilities where status indicators are necessary. This light can be operated on voltages ranging from 120 to 277 volts AC without the need for any extra hardware. The light will sense the voltage and adjust the current sent to the LED accordingly.  This signal light fixture is configured for red, yellow, and green output (one lamp each color). The WAL-TL series of lights offers exceptional lumen output, a 50,000+ hour life span, IP68 waterproof tested to 60 meters. The LED lamps in this traffic light are 12 watts each and offer cool operation and clean, bright output that surpasses that of 100 watt incandescent indicator lamps. Mounting is provided by a heavy gauge aluminum base with four predrilled holes designed to be bolted to walls and flat surfaces for permanent and secure attachment.
