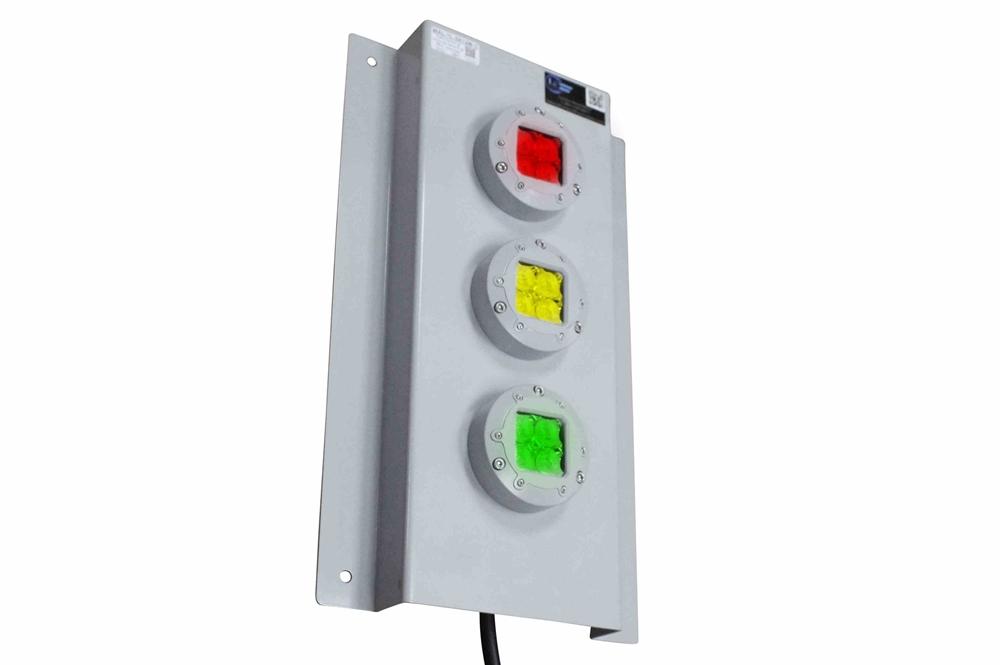

36W LED Signal Stack Light - (3) 12W LED Lamps - 120-277V - Corrosion Resistant - N4X
36W LED Signal Stack Light - (3) 12W LED Lamps - 120-277V - Corrosion Resistant - N4X
Sold by: LARSON ELECTRONICS
| WAL-TL-3X12W-C-1227-MOD1-1227 - LED Stack Light - NEMA 4X | Ratings/Features |
| Lamp Technology: LED | Low Profile |
| Lamp Qty: (3) | Durable Aluminum Construction |
| Dimensions: 24"-H x 10.25"-W x 4.25"-D | Low Amp Draw |
| Weight: - | IP68 (Waterproof) |
| Voltage: 120-277 Volts AC | NEMA 4X |
| Total Watts: 36W |  |
| Single-lamp Watts: 12W |  |
| Total Lumens: - |  |
| Single-lamp Lumens: - |  |
| Luminous Efficiency: - |  |
| Life Expectancy: 50,000+ hours |  |
| LED Color: (2) White, (1) Infrared |  |
| Infrared Wavelength: 850nm |  |
| Lamp Type: - |  |
| Lamp Base: - |  |
| Replacement Lamp: - |  |
| Beam Type: - |  |
| Lighting Configuration: (1) Steady Burn - White, (1) Strobe - White, (1) Strobe - Infrared |  |
| Efficiency: - |  |
| Power Factor: - | |
| Amp Draw: 0.3A @ 120V, 0.15A @ 240V, 0.12A @ 277V | |
| Ambient Operating Temp: -40°C to +65°C | |
| Housing Material: Copper-free Aluminum (Strobe Lamps), Fiberglass (Horn) | |
| Mounting: Ceiling, Wall and Flat Surface - Pre-drilled Aluminum Base | |
| Wiring: 16 AWG leads |
| The WAL-TL-3X12W-C-1227-MOD1 LED Signal Stack Light from Larson Electronics is approved for use in wet locations and marine environments, as well as busy industrial sites. This solid-state, NEMA 4X rated unit contains three lamps and operates on 120-277V AC. The waterproof LED light is designed for routing traffic in industrial refueling stations and process status indication in manufacturing facilities. The WAL-TL-3X12W-C-1227-MOD1 is an ideal indicator lighting solution for industrial, marine and manufacturing facilities. This multi-colored indicator light features two white and one infrared lamps. The 36-watt unit contains the following light configurations: lamp 1- steady burn/white, lamp 2- strobe/white and lamp 3- strobe/infrared 850 nm. The LED lamps in this traffic light are 12 watts each and offer cool operation and clean, bright output that surpasses 100-watt incandescent indicator lamps. |
| These LED lights are fully sealed and weatherproof. The LEDs are housed within a hard anodized and powder coated aluminum chassis that provides excellent strength and durability. IP68 waterproof tested to 60 meters, the WAL-TL series of lights offers exceptional lumen output and a 50,000+ hour lifespan. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Wiring: Power is provided by individual conductors to allow independent operation of each lamp, making this unit ideal for fuel depots and manufacturing facilities where status indicators are necessary. This light can be operated on voltages ranging from 120 to 277 volts AC without the need for any extra hardware. The light will sense the voltage and adjust the current sent to the LED accordingly. We also offer a 12/24V DC configuration for low voltage operation. Mount: Mounting is provided by a heavy-duty base with four pre-drilled holes that is designed to be bolted to walls and flat surfaces for permanent and secure attachment. The mounting plate is also made from aluminum and can be custom built to customer specifications. |
