Portable Panel - 208Y/120V 3PH - 200A Panel - Hospital-grade Red Receptacles - Female Cam-loks
Portable Panel - 208Y/120V 3PH - 200A Panel - Hospital-grade Red Receptacles - Female Cam-loks
| WALSB-208Y.120-CMLK-18X20A.HR Spider Box | Ratings |
| Primary Voltage: 208Y/120V AC 3PH 50/60 Hz | UL 1640 |
| Line-In Cable: - | NEMA 3R Weatherproof |
| Line-In: (1 Set) 150A 600V Rated E1015 Female Cam-loks [Black, Red, Blue, White, Green] | Top mounted push handle for portability |
| Panel: 208Y/120V 3PH 200A N3R | Hospital-grade Red Receptacles |
| Voltage: 208Y/120V AC 3PH | Yellow Powder Coated Finish |
| Breakers: (18) 20A 1P [125V] | |
| Receptacles: (10) 20A 5-20R Duplex Red [125V], (8) 20A 5-20R Simplex Red [125V] | |
| Dimensions: 32.19"L x 21"W x 40.44"H | Toll Free: 1-800-369-6671 |
| Weight: 150 lbs | Intl: 1-214-616-6180 |
| Mounting: Portable / Base Stand w/ Polyurethane Swivel Casters | |
| Max OCP: 200A @ 208V | |
| Larson Electronics manufacture a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |

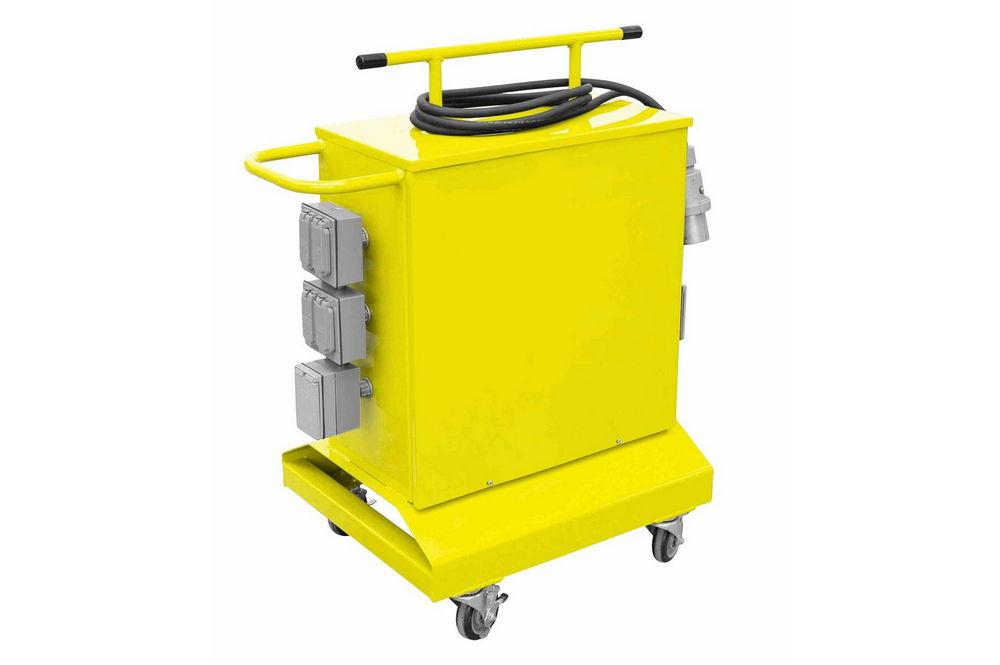

| This unit is Made In USA - Manufactured in Texas The Larson Electronics WALSB-208Y.120-CMLK-18X20A.HR portable power distribution provides operators with a primary and secondary three-phase voltage of 208Y/120V. This 200-amp portable power distribution unit is equipped with hospital-grade red receptacles and a yellow powder coated cart. The WALSB-208Y.120-CMLK-18X20A.HR portable wheeled spider box from Larson Electronics is built to provide operators with a reliable source of three-phase 120V power. This compact spider box is designed for portability and convenience as well as durability. Featuring an elevated base platform for protection from standing water and weatherproof construction, the WALSB-208Y.120-CMLK-18X20A.HR is ideal for powering 120V equipment and lighting in construction, entertainment, job-site, marine, and outdoor locations where 120V generators are providing the power. This portable spider box features ten 5-20R red duplex receptacles and eight 5-20R red simplex receptacles that provide sealed and secure connections for up to 18 devices. Each receptacle features a hinged watertight cover protecting the face from rain, water, and moisture when not in use. The WALSB-208Y.120-CMLK-18X20A.HR power distribution unit features short circuit and overload protection. In the instance of circuit overload, the unit automatically shuts down to protect the spider box from damage and restarts after 30 seconds. The housing on the WALSB-208Y.120-CMLK-18X20A.HR is constructed from powder coated steel with a NEMA 3R enclosure rating. The angled base and low center of gravity ensure this low voltage transformer does not tip over when in the field. The entire unit is powder coated with yellow finish for corrosion resistances and aesthetics. The assembly is mounted atop four swivel polyurethane casters, two standard swivel and two locking swivel, aiding in transportation within the job site. A top located adjustable push handle allows operators to guide this unit through the workspace. Primary voltage of three-phase 208Y/120V is brought into the portable spider box system via one set of 150-amp, 600V-rated E1015 female cam-loks (black, red, blue, white, green). The 200-amp portable spider box is equipped with eighteen 20-amp, 1-pole, 125V breakers protecting ten 20-amp, 125V, 5-20R red duplex receptacles and eight 20-amp, 125V, 5-20R red simplex receptacles. A top located cord management system allows operators to roll up line-in cord when not in use and roll up the extra slack in the power cable during use. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or . |
