Larson Spider Box - 240 Volts AC to 120 Volts AC - 6 120V 20A GFCI Protected Duplex Outlets - Weatherproof

Larson ElectronicsSKU: PL3-WALSB-240.50A-6X120.20A-WP
filler

Price:
Sale price$3,209.99

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
This unit is Made In USA - Manufactured in Texas

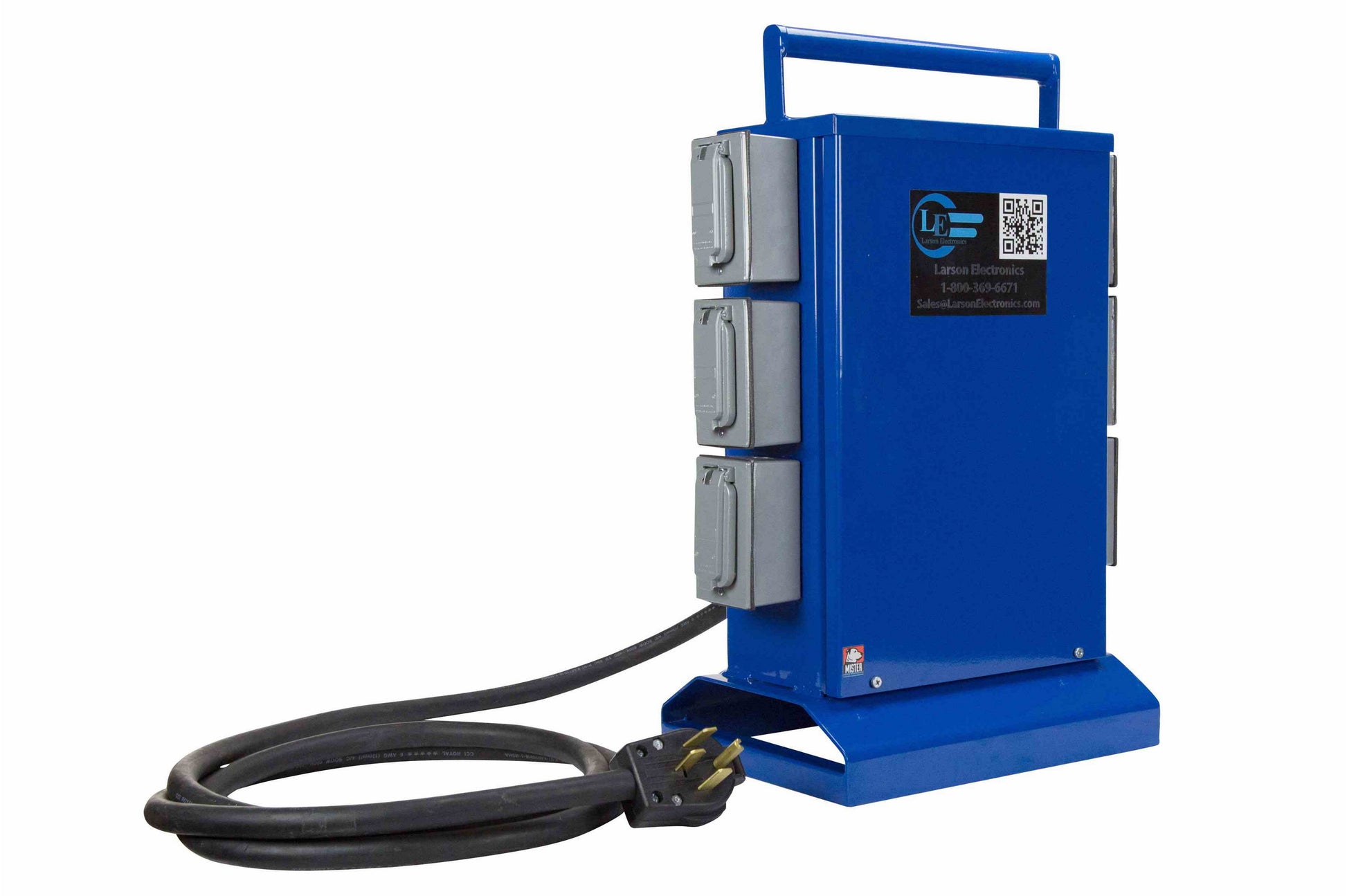

The Larson Electronics WALSB-240.50A-6X120.20A-WP 600 portable spider box converts 240V AC 50/60 Hz input voltage and steps it down to 120V AC output voltage. This weatherproof portable spider box allows operators to plug into 240V generators and welding outlets via an L14-50P cord cap.
The WALSB-240.50A-6X120.20A-WP portable spider box from Larson Electronics is built to provide operators with a reliable source of low voltage 120V power. This compact spider box is designed for portability and convenience as well as durability. Featuring an elevated base platform for protection from standing water and weatherproof construction, the WALSB-240.50A-6X120.20A-WP is ideal for powering 120V equipment and lighting in construction, entertainment, job-site, marine, and outdoor locations where 240V generators are providing the power.
This portable spider box features six duplex 120V 20A GFCI protected outlets that provide sealed and secure connections for up to 12 devices. In addition, the GFCI duplex receptacles provide 120V for powering high voltage lighting and equipment without the need for running additional extension cords. Each receptacle features a hinged watertight cover protecting the face from rain, water, and moisture when not in use. The WALSB-240.50A-6X120.20A-WP spider box features short circuit and overload protection. In the instance of circuit overload, the unit automatically shuts down to protect the spider box from damage and restarts after 30 seconds
The housing on the WALSB-240.50A-6X120.20A-WP is constructed from powder coated steel with a NEMA 3R enclosure rating. The top of the unit features a convenient carrying handle that doubles for cable management when not in use. The angled base and low center of gravity ensure this low voltage transformer does not tip over when in the field. The entire unit is powder coated with glossy blue finish for corrosion resistances and aesthetics.
The WALSB-240.50A-6X120.20A-WP portable spider box system converts primary 240V AC into 120V AC primary voltage is brought in via 10` of four-conductor no. 6 chemical and abrasion resistant SOOW cable that is fitted with an industrial grade male 14-50 cord cap. Secondary voltage is distributed via the six duplex 120V 20A GFCI protected outlets.
Larson Electronics is a manufacturer and as such can build transformers to your Specifications. Although we carry several models of power distribution systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-844-787-5483 or
Contact info@purilite.ca
.

Specifications
Primary Voltage: 240V AC 50/60 Hz
Line-In Cable: 10` 6/4 SOOW Cable w/ Cord Cap
Line-In Cord Cap: Industrial Grade 14-50P
Secondary Voltage: 120V AC
Secondary Receptacles: (6) 120V 20A GFCI Protected Duplex
Secondary Protection: Ground Fault Circuit interrupter
Dimensions: 15"L x 10.25"W x 25.38"H
Weight: 24lbs
Mounting: Portable / Base Stand
