Portable Camlock Splitter Box - (4) 200A Camlock Inputs - 2 Sets of (4) 150A Camlock Outputs

LARSON ELECTRONICSSKU: PL3-WALSB-480D-CMLK-200AI-100A-2XO
filler

Price:
Sale price$2,954.00
 More payment options

Description

Specifications / Additional Information
WALSB-480D-CMLK-200AI-100A-2XO Portable Camlock Splitter Box Ratings/Approvals
Input: (4) 16 Series 200A Male Camlocks [Brown, Orange, Yellow, Green] NEMA 3R Weatherproof
Voltage: 480V
Breakers: -
Output: Two Sets of (4) 15 Series 150A Female Camlocks [Brown, Orange, Yellow, Green]
Protection: -
Housing Material: 16-gauge Steel
Mounting: Portable/Base Stand
Dimensions: -
Weight: -
Color: Yellow
Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

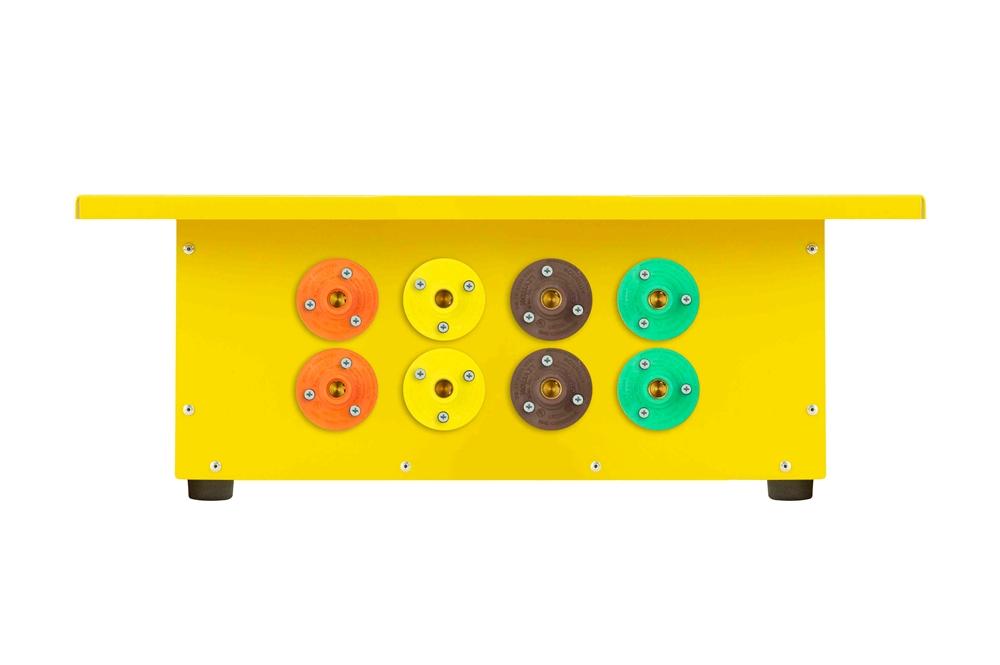

This unit is Made In USA - Manufactured in Texas The Larson Electronics WALSB-480D-CMLK-200AI-100A-2XO is a Portable Splitter Box for indoor, outdoor and rugged applications. The device supports one set of four camlocks on the input side and two sets of four camlocks on the output side for powering 480V AC equipment. For robust protection, the power distribution box is NEMA 3R rated. This portable camlock splitter box is equipped with one set of four, 200-amp camlock inputs (brown, orange, yellow and green) for bringing 480V power into the unit. The device supports two sets of four, 150-amp camlocks on the output side (brown, orange, yellow and green). The housing on the WALSB-480D-CMLK-200AI-100A-2XO is constructed of 16-gauge steel with a NEMA 3R enclosure rating. This device is approved for wet locations. Two angled legs at the base of the unit and low center of gravity ensures this splitter box does not tip over in the field. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request. Applications: Indoor or outdoor applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits and shipyard operations. These units are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments. Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
