480V-120V Portable Panel - 8 120V 20A GFCI 5-20R 2 120V 30A L5-30 - Overload Protection ACP6034 Plug

LARSON ELECTRONICSSKU: PL3-WALSB-480V.120V-8X20A-2XL5.30A-6034-OLP-WC
filler

Price:
Sale price$9,356.00

Description

Specifications / Additional Information
WALSB-480V.120V-8X20A-2XL5.30A-6034-OLP-WC Spider Box Ratings
Primary Voltage: 480V AC 50/60 Hz UL 1640
Line-In Cable: 10` 12/4 SOOW Cable w/ Cord Cap NEMA 3R Weatherproof
Line-In Cord Cap: Industrial Grade ACP6034 GFCI Outlets
Primary Protection: 13A Circuit breaker Portable Casters
Transformer: 5KVA 480 to 120V N3R Top mounted push handle for portability
Secondary Voltage: 120V AC Top located cord management
Secondary Receptacles: (8) 120V 20A GFCI 5-20R Duplex and (2)120V 30A L5-30 Twist Lock Receptacles Overload Protection
Secondary Protection: Ground Fault Circuit interrupter (20A receptacles)
Dimensions: 33.57"L x 21"W x 40.32"H
Weight: 150 lbs
Mounting: Portable / Base Stand w/ Polyurethane Swivel Casters Toll Free: 1-800-369-6671
  Intl: 1-214-616-6180
Fax: 1-903-498-3364
  E-mail:

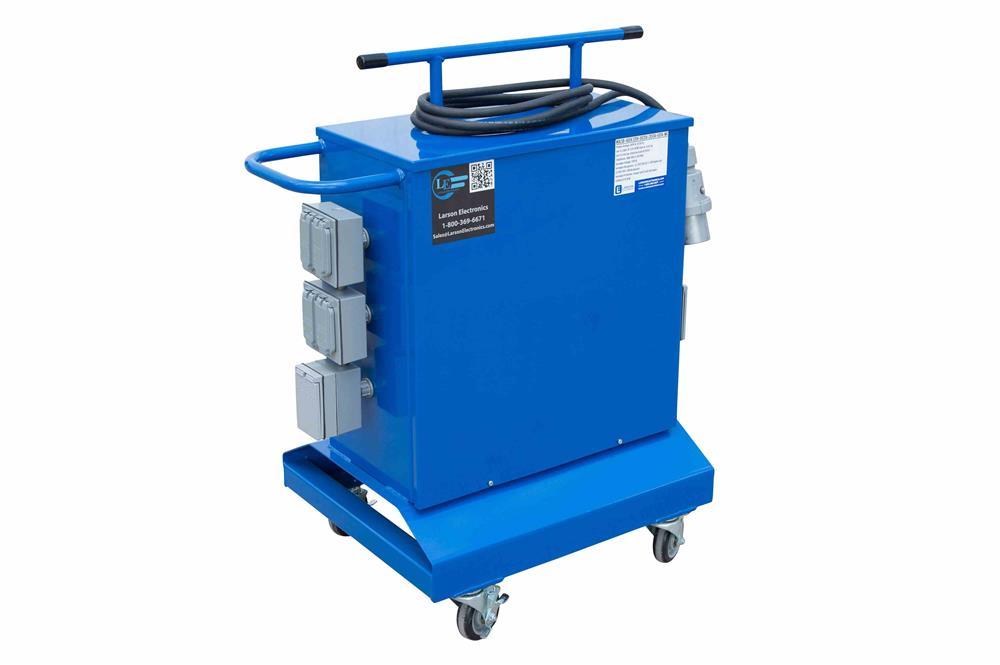

Larson Electronics manufacture a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
This unit is Made In USA - Manufactured in Texas The Larson Electronics WALSB-480V.120V-8X20A-2XL5.30A-6034-OLP-WC portable power distribution converts 480V AC 50/60 Hz input voltage and steps it down to 120V AC output voltage. This weatherproof portable power distribution unit allows operators to plug into 480V generators and welding outlets via an ACP6034 male pin and sleeve cord cap. The WALSB-480V.120V-8X20A-2XL5.30A-6034-OLP-WC portable wheeled spider box from Larson Electronics is built to provide operators with a reliable source of 120V power. This spider box is designed for portability and convenience as well as durability. Featuring an elevated base platform for protection from standing water and weatherproof construction, the WALSB-480V.120V-8X20A-2XL5.30A-6034-OLP-WC is ideal for powering 120V equipment and lighting in construction, entertainment, job-site, marine, and outdoor locations where 480V generators are providing the power. This portable spider box features eight 120V, 20A GFCI 5-20R duplex receptacles and two 120V, 30A, L5-30 twist lock receptacles that provide sealed and secure connections for up to 10 devices. The maximum voltage for all 10 receptacles is 1500W. In addition, the receptacles provide 120V for powering high voltage lighting and equipment without the need for running additional extension cords. Each receptacle features a hinged watertight cover protecting the face from rain, water, and moisture when not in use. The WALSB-480V.120V-8X20A-2XL5.30A-6034-OLP-WC power distribution unit features short circuit and overload protection. In the instance of circuit overload, the unit automatically shuts down to protect the unit from damage and operators manually restart the system. The housing on the WALSB-480V.120V-8X20A-2XL5.30A-6034-OLP-WC is constructed from powder coated steel with a NEMA 3R enclosure rating. The angled base and low center of gravity ensure this low voltage transformer does not tip over when in the field. The entire unit is powder coated with glossy blue finish for corrosion resistances and aesthetics. The assembly is mounted atop four swivel polyurethane casters, two standard swivel and two locking swivel, aiding in transportation within the job site. A top located adjustable push handle allows operators to guide this unit through the workspace. The WALSB-480V.120V-8X20A-2XL5.30A-6034-OLP-WC portable spider box system converts primary 480V AC into 120V AC. Primary voltage is brought in via 10` of 12/4 chemical and abrasion resistant SOOW cable that is fitted with an industrial grade male ACP6034 pin/sleeve cord cap. Secondary voltage is distributed via the eight 120V, 20A GFCI 5-20R duplex receptacles and two 120V, 30A, L5-30 twist lock receptacles. A top located cord management system allows operators to roll up line-in cord when not in use and roll up the extra slack in the power cable during use. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or .
