Larson 30' Portable Grow Light Tower - 14' to 30' Mast - (8) Magnetic Induction Lamps, Blue/Red Spectrum - Diesel Generator

Larson ElectronicsSKU: PL3-WCDE-4-30FT-IDC-GWL-8X300W-M1
filler

Price:
Sale price$59,330.99

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in Texas

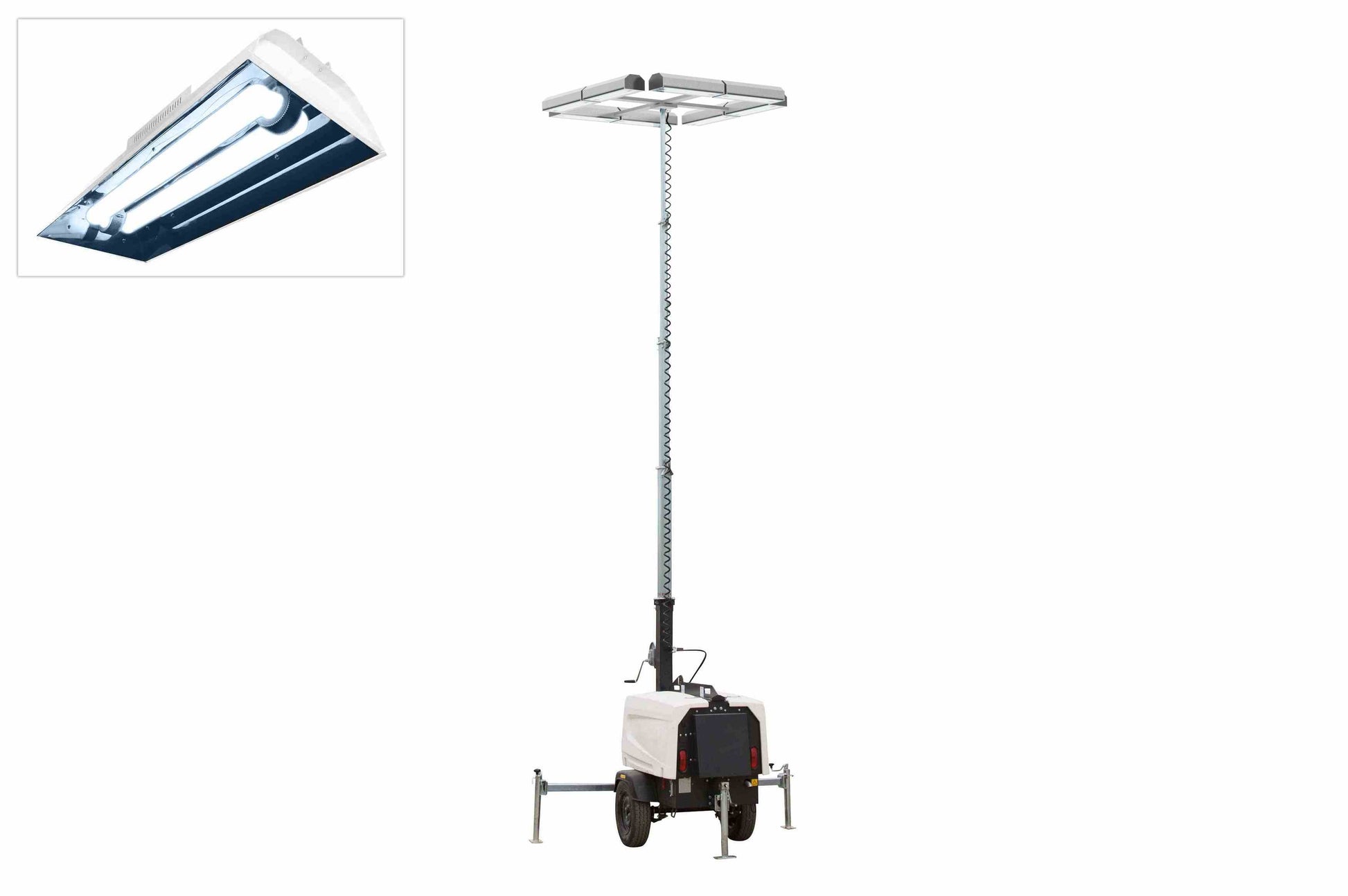

The Larson Electronics WCDE-4-30FT-IDC-GWL-8X300W-M1 Portable Grow Light Tower consists of a towable induction lighting package powered by a water cooled diesel engine turning a single bearing 7,500 watt generator. This unit is equipped with eight, magnetic induction grow lamps secured at the top of the mast in a box configuration (tower head at the center). The telescoping, three-stage mast is capable of reaching heights up to 30 feet and retracting to 14 feet. With an expected lifespan of 100,000 hours, the energy efficient grow lamps consume 70% less power than incandescent lights and 50% less power compared to HPS lamps.
The WCDE-4-30FT-IDC-GWL-8X300W-M1 is a self-contained towable grow light tower package for large-scale plant growing operations. This unit contains a water cooled diesel engine powering a 7,500 watt generator, which supplies the current to eight, 300-watt magnetic induction lamps producing 460 nm blue spectrum (400 nm to 500 nm) and 660 nm red spectrum (600 nm to 700 nm). This unit can run uninterrupted for set durations without refueling and includes a telescoping light mast which can elevate the eight magnetic induction grow lights to a maximum height of 30 feet (and lowered to 14 feet).
The three-stage, fold-over tower is constructed of square steel tubing with a lower section 12` in length and 4" by 4" by 1/8" thick, middle section 11` in length and 3" by 3" by 1/8" thick, and an upper section 10` and 2" by 2" by 1/8" thick. Each section has a 1` overlap. The mast is elevated using an included 1,000 lbs hand winch with 3/16" cable and extended to its full height using a second 1,000 lbs hand winch.
The WCDE-4-30FT-IDC-GWL-8X300W-M1 mobile light tower incorporates a long list of impressive features. The diesel engine is a water cooled Kubota that operates at 3600 rpm. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. A 28 gallon fuel tank allows the engine to operate continuously. The 7,500 watt generator is a single bearing design and produces 120/240 volt current at 60 Hz. The generator uses a four wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems.
Lights:
The lighting system on this unit is comprised of eight, 300-watt magnetic induction lamps. Arranged in a box configuration with the mast head at the center, the lights feature a 100,000 expected lifespan with low luminance depreciation. The high output lamps provide 460 nm (400 nm to 500 nm, blue spectrum - suitable for vegetative stage) and 660 nm (600 nm to 700 nm, red spectrum - suitable for flowering stage) during use. A 90% efficient reflector promotes light distribution in a flood beam pattern over the target area. Remote ballasts are included with the lamps, mounted at the top of each fixture. The grow lights are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom.
Constructed of lead-free glass and solid amalgam, these magnetic induction grow lamps are environmentally friendly and designed to support plant photosynthesis. The energy efficient lamp consumes 70% less power than incandescent lights and 50% less power compared to HPS lamps. When it comes to expected lifespan (at 100,000 hours), the induction grow lamps last 100 times longer than incandescent lights and 8 times longer than HPS lamps. These powerful grow lights also provide instant startup, taking less than 0.5 seconds to reach full output.
Controls:
The operations system for this unit is a centrally located control panel within the light tower enclosure. Four circuit breaker protected switches allow individual control of the lights while an individual hour meter tracks unit operating time. Also included is an alternator warning light, fuel primer system, preheating switch, and a 120 volt GFCI duplex receptacle for auxiliary power takeoff.
Telescoping Boom:
The mast is powder coated for corrosion resistance and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 14`, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand.
The stabilizing outriggers are a four-point design with one located under the trailer tongue, two on the sides and one on the back of the unit. The two side outriggers are adjustable and include 1,000 lbs swivel jacks for leveling and stabilizing the tower.
Housing:
All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. A spillage free frame with an external drain system will contain all fluids to prevent road hazards or damage to the environment. Side wing doors provide access to the interior while latches provide secure closing when the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 73 Db noise level @ 23 ft. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the top section of the light mast. The entire unit is mounted onto a two-wheel trailer with a 2,000 lbs leaf spring axle. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing.
The entire light tower assembly is shipped via common freight carrier and weighs approximately 1,600 lbs. Larson Electronics can customize these units to customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Engine: Kubota Z482 EPA Tier 4
Engine Type: Vertical, liquid-cooled, 4-cycle diesel engine
Engine Speed: 3600 RPM
No. of Cylinders: 2
Generator: Sincro EK 2 MCT
Voltage: 120V Single Phase 100-300V, 50/60 Hz
Battery: 12V
Fuel Cell Capacity: 28 Gallons
Fuel Delivery: Electric
Noise Level: Db level 73 @ 23 ft
Mast Type: Telescoping, Fold Over
Boom Height: 14` to 30`
Materials: 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis
Finish: Industrial Grade Paint
Operation: (2) 1,000lbs Manual Winches, Electric Optional
Cable: 3/16" Aircraft Cable
Stages: Three
Lamp Technology: Magnetic Induction Lamp
Lamp Quantity: (8)
Dimensions: -
Voltage: 120V Single Phase 100-300V, 50/60 Hz
Total Watts: 2,400W
Single-lamp Watts: 300W
Total Lumens: -
Single-lamp Lumens: -
Luminous Efficacy: 45 lm/w
Expected Lifespan: 100,000+ Hours
Output Spectrum: 460 nm (Blue Spectrum) and 660 nm (Red Spectrum)
Color Rendering Index: >80
Lamp Type: Induction
Lamp Base: -
Replacement Lamp: -
Beam Angle: 180°
Lighting Configuration: Flood Pattern
Power Efficiency: -
Power Factor: 0.98
Ballast Type: External
Amps: 20A @ 120V, 10A @ 240V
Operating Temp Range: -40°F to 159°F (-40°C to 70°C)
Surface Temp: <80°C
Material: Lead-free Glass, Solid Amalgam
Mounting: Tower - Box Head Configuration
Materials: 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis
Hitch: 2in ball / pintle combo
Finish: Industrial Grade Paint
Axle: (1) 2,000 lbs
Suspension: 2,000 lbs Double Eye Leaf Springs
Outriggers: (4) Adjustable Outriggers w/ 2,500 lbs Manual Leveling Jacks
Lighting: DOT Approved tail, side, brake, and directional lights
Wheels: (2) 13" 5x4.5 Steel Rims
Tires: 155R13
Shipping Dimensions: -
Shipping Weight: -
