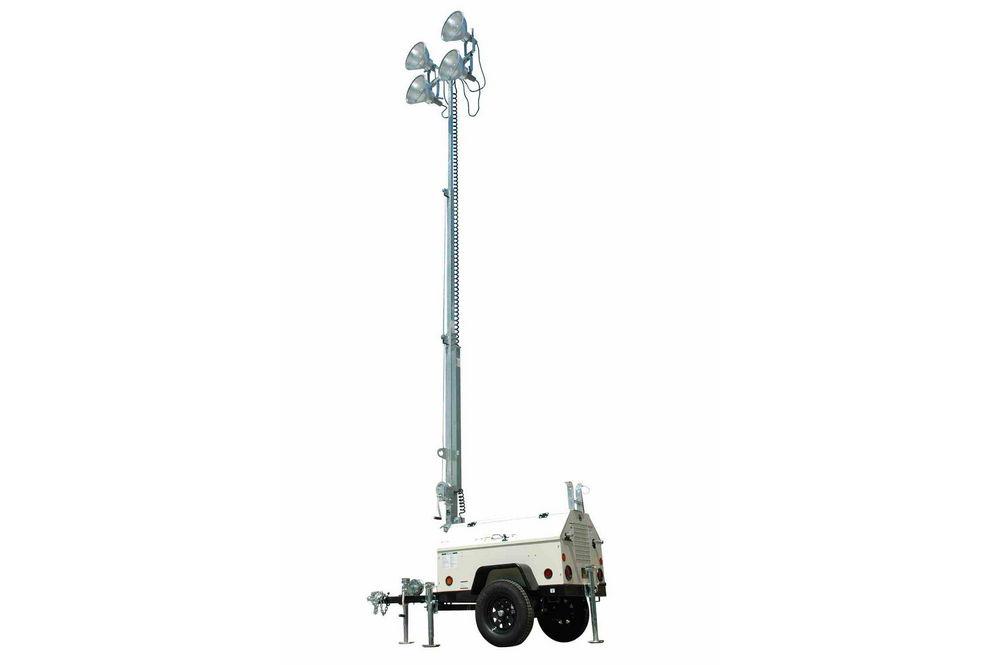

8,000 Watt Generator - Water Cooled Diesel Engine - 30' Telescoping Tower - 4 Metal Halide Fixtures


Sale price$49,385.99


Specifications / Additional Information
Specifications / Additional Information
WCDE-4-8KW-MH Mobile Light Tower Protection
Genset Specs: Kubota Genset
Engine: Kubota 30 Gallon Fuel Cell
Engine Speed: 3600 RPM Up to 20+ Hour Continuous Operation
No. of Cylinders: 3 External Grounding
Generator: 8KW Marathon Pancake Brushless Alternator Low Oil, High Engine Temp Auto Shut-Off
Voltage: 120/240V Single Phase 60Hz Hour Meter - Alternator Warning
Battery 12V High Output MH Lamps
Fuel Cell Capacity: 30 Gallons 440,000 Total Lumen Output
Fuel Delivery: Electric Independently Adjustable Light Heads
Noise Level: Db level 71 @ 23 ft Individual Light Switch Circuit Breakers
Dial-in Adjustability per light head
110 Lumens Per Watt Efficiency
Light Mast Specs: Steel Trailer w/ Hot Dipped Galvanized Finish
Mast Type: Manual Crank-Up Four Point Outrigger System
Boom Height: Up to 30` Withstands 50Mph Winds at Full Extension
Materials: Galvanized Steel
Operation: Manual Hand Crank Winch
Winch: 3500lb, Self-Braking
Stages: Four
Light Specs:
Lamp Type: Metal Halide
Lamp Qty: 4
Total Lumens: 440,000 (110,000 per lamp)
Luminous Efficacy: 110 lm/w
Color Temperature: Neutral White - 4100K
Life Expectancy: 10,000 hours
Coverage: 6 to 7 Acres
Trailer Specs
Materials: 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis
Hitch: 2in ball / pintle combo
Finish: Hot-dipped and Galvanized Finish
Axle: (2) 1,750 lbs Each
Suspension: 2,000 lbs Double Eye Leaf Springs
Outriggers: (2) Adjustable Outriggers w/ 3,000 lbs Manual Leveling Jacks
Lighting: DOT Approved tail, side, brake, and directional lights
Wheels: (2) 15" Blackwall Tubeless Tires
Tires: 155R13
' Product Overview '
Made in Texas The WCDE-4-8KW-MH mobile light tower from Larson Electronics is a towable lighting package powered by a water cooled diesel engine turning a single bearing 4 pole generator which produces 8,000 watts and 120/240V@60Hz. With four 1,000 watt metal halide lamps producing 440,000 lumens this unit will illuminate a 5-7 acre area continuously without refueling for 60 hours. The WCDE-4-8KW-MH mobile light tower is a self contained towable light tower package that produces enough light to illuminate an area up to 7 acres in size. This unit contains a water cooled diesel engine powering a 6,000 watt generator, which supplies the current to four 1,000 watt metal halide lamps producing 110,000 lumens each for a combined total of 440,000 lumens of light. This unit can run uninterrupted for 60 hours straight without refueling and includes a telescoping light mast which can elevate the four metal halide lamps to a height of 30 feet. This mobile floodlight package is ideal for emergency services, large scale event illumination, construction, mining, industrial operations and anywhere an extended operation capable mobile lighting solution is needed. The WCDE-4-8KW-MH mobile light tower incorporates a long list of impressive features. The diesel engine is a water cooled Kubota that operates at 3600 RPM. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoff`s, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. A 30 gallon fuel tank allows the engine to operate for 60 hours continuously without refueling. The 8,000 watt generator is a single bearing design and produces 120/240 volt current at 60Hz. The generator uses a four wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems. Lights: The lighting system on this unit is comprised of four 1,000 watt metal halide lamps producing 110,000 lumens of light each attached to the end of the telescoping light boom. These floodlights produce a wide flood light pattern capable of illuminating 7 acres with a combined total of 440,000 lumens of light. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom.
Controls: The operations system for this unit is a centrally located control panel within the light tower enclosure. Four circuit breaker protected switches allow individual control of the lights while an individual hour meter tracks unit operating time. Also included is an alternator warning light, fuel primer system, preheating switch, 120 volt GFCI duplex receptacle for auxiliary power takeoff and a 240V twist lock power receptacle. Telescoping Boom: The telescoping boom consists of three sections extending up to 30 feet through the use of two manual self braking winches and allows for rotating the lights 360 degrees. One winch is mounted to the trailer tongue and acts to raise the tower into a vertical position while the other is mounted to the boom and is used to extend the tower to the desired height. The telescoping boom is constructed of galvanized steel to resist rusting and corrosion and is capable of withstanding 65 mph winds when extended to its full height and the stabilizing outriggers are deployed. The stabilizing outriggers are a three point design with one located under the trailer tongue and two on the rear sides of the unit. The two side outriggers are adjustable and include 3,000 lbs swivel jacks for leveling and stabilizing the tower. Housing: All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. Side doors provide access to the interior while latches provide secure closing while the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 63 Db noise level @ 23 ft. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the outer section of the light mast. The entire unit is mounted onto a two wheel trailer with a 3,500 lbs leaf spring axle. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing. Engine Kubota liquid cooled diesel engine 60 Hz engine/generator Industrial engine exhaust system Rubber engine mounts isolate engine and generator from trailer frame Cooling system capable of operating at 120°F ambient temperature Full flow spin on oil filter Fuel filter w/ replaceable filter element Dry type cartridge air filter 30 Gal. Polyethylene fuel tank with 3 1/2" fill port Trailer Mast Supports: 5" x 3/16" square tube Tongue: 47" removable tongue w/ 2" ball hitch Chassis: Tubular 2.5" x 3/16" steel chassis Leveling Jack: (3) 3000lb adjustable leveling jacks Outriggers: Side outriggers provide 8` 3" span Side Fenders: 14 gauge steel Axle: 3500 lb leaf spring axle Tires: P205/75L15 Safety chains w/ s-hooks DOT approved tail, side, brake, and directional lights Recessed rear and side lights License plat holder w/ license plate lights 51" axle span Mast 3 section tubular galvanized steel mast - 30` maximum extension UHMW glide pads on all sides of mast tubes Horizontal Automatic locking system for transport 1500 lb automatic self-braking winch 359° mast rotation w/ locking system Retractable coil cord w/ galvanized cord protection housing
