25' Telescoping Tower - 4 Metal Halide Fixtures - No Genset/Fuel Tank

LARSON ELECTRONICSSKU: PL3-WCDE-4-MHL-4G
filler

Price:
Sale price$28,245.99

Description

Specifications / Additional Information
WCDE-4-MHL-4G Mobile Light Tower Quick Summary
Light Mast Specs: External Grounding
Mast Type: Manual Crank-Up DOT Approved Trailer Lights
Boom Height: Up to 25` Enclosure for Generator
Materials: Galvanized Steel High Output MH Lamps
Operation: Manual Hand Crank Winch 440,000 Total Lumen Output
Winch: 2500lb, Self-Braking Independently Adjustable Light Heads
Stages: Five Individual Light Switch Circuit Breakers
Dial-in Adjustability per light head
Light Specs: Withstands 50Mph Winds at Full Extension
Lamp Type: Metal Halide 110 Lumens Per Watt Efficiency
Lamp Qty: 4 Steel Trailer w/ Industrial Grade Paint Finish
Total Lumens: 440,000 (110,000 per lamp) Four Point Outrigger System
Luminous Efficacy: 110 lm/w
Color Temperature: Neutral White - 4100K
Life Expectancy: 20,000 hours
Coverage: 6 to 7 Acres
Trailer Specs:
Materials: 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis
Hitch: 2in ball / pintle combo
Finish: Industrial Grade Paint
Axle: (1) 2,000 lbs
Suspension: 2,000 lbs Double Eye Leaf Springs
Outriggers: (4) Adjustable Outriggers w/ 2,500 lbs Manual Leveling Jacks
Lighting: DOT Approved tail, side, brake, and directional lights
Wheels: (2) 13" 5x4.5 Steel Rims
Tires: 155R13
' Product Overview '

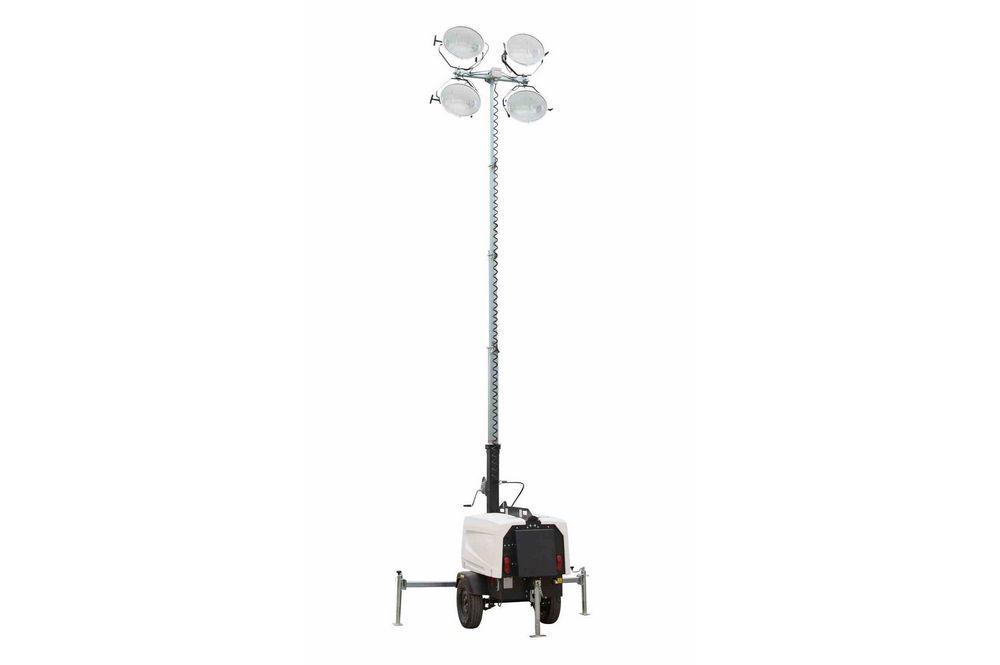

Made in Texas The WCDE-4-MHL-4G mobile light tower from Larson Electronics is a towable lighting package that can be deployed in outdoor locations and large spaces. With four 1,000 watt metal halide lamps producing 440,000 lumens, this unit is capable of illuminating an area of 6-7 acres. An enclosure is available for operators to provide their own generator. The space may also be used to store equipment. The WCDE-4-MHL-4G mobile light tower is a self-contained towable light tower package that produces enough light to illuminate an area up to 7 acres in size. This unit features four 1,000 watt metal halide lamps producing 110,000 lumens each for a combined total of 440,000 lumens of light. An enclosure is provided for operators to install their own generator. Alternatively, the space may be used to store equipment. The lighting package includes a telescoping light mast which can elevate the four metal halide lamps to a height of 25 feet. This mobile floodlight package is ideal for emergency services, large scale event illumination, construction, mining, industrial operations and anywhere an extended operation capable mobile lighting solution is needed.
Lights: The lighting system on this unit is comprised of four 1,000 watt metal halide lamps producing 110,000 lumens of light each attached to the end of the telescoping light boom. These floodlights produce a wide flood light pattern capable of illuminating a minimum of 5 acres with a combined total of 440,000 lumens of light. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom.
Click Photo to Enlarge
Controls: The operations system for this unit is a centrally located control panel within the light tower enclosure. Four circuit breaker protected switches allow individual control of the lights while an individual hour meter tracks unit operating time. Telescoping Boom: The telescoping boom consists of five sections extending up to 25 feet through the use of a manual self braking winch and allows for rotating the lights 360 degrees. The telescoping boom is constructed of galvanized steel to resist rusting and corrosion and is capable of withstanding 50 mph winds when extended to its full height and the stabilizing outriggers are deployed. The stabilizing outriggers are a four point design with one located under the trailer tongue, two on the sides and one on the back of the unit. The two side outriggers are adjustable and include 1,000 lbs swivel jacks for leveling and stabilizing the tower. Housing: All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. A spillage free frame with an external drain system will conatain all fluids to prevent road hazards or damage to the environment. Side wing doors provide access to the interior while latches provide secure closing when the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 73 Db noise level @ 23 ft. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the top section of the light mast. The entire unit is mounted onto a two wheel trailer with a 2,000 lbs leaf spring axle. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing.
