Larson 25' Telescoping Mobile Security Light Tower - 7.5 kW Diesel Generator - 4 MH, 4 Cameras - 2TB NVR - WiFi Access Point

Larson ElectronicsSKU: PL3-WCDE-4-MHL-4X3MP-2TB-WF

Sale price$49,471.99


PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in Texas

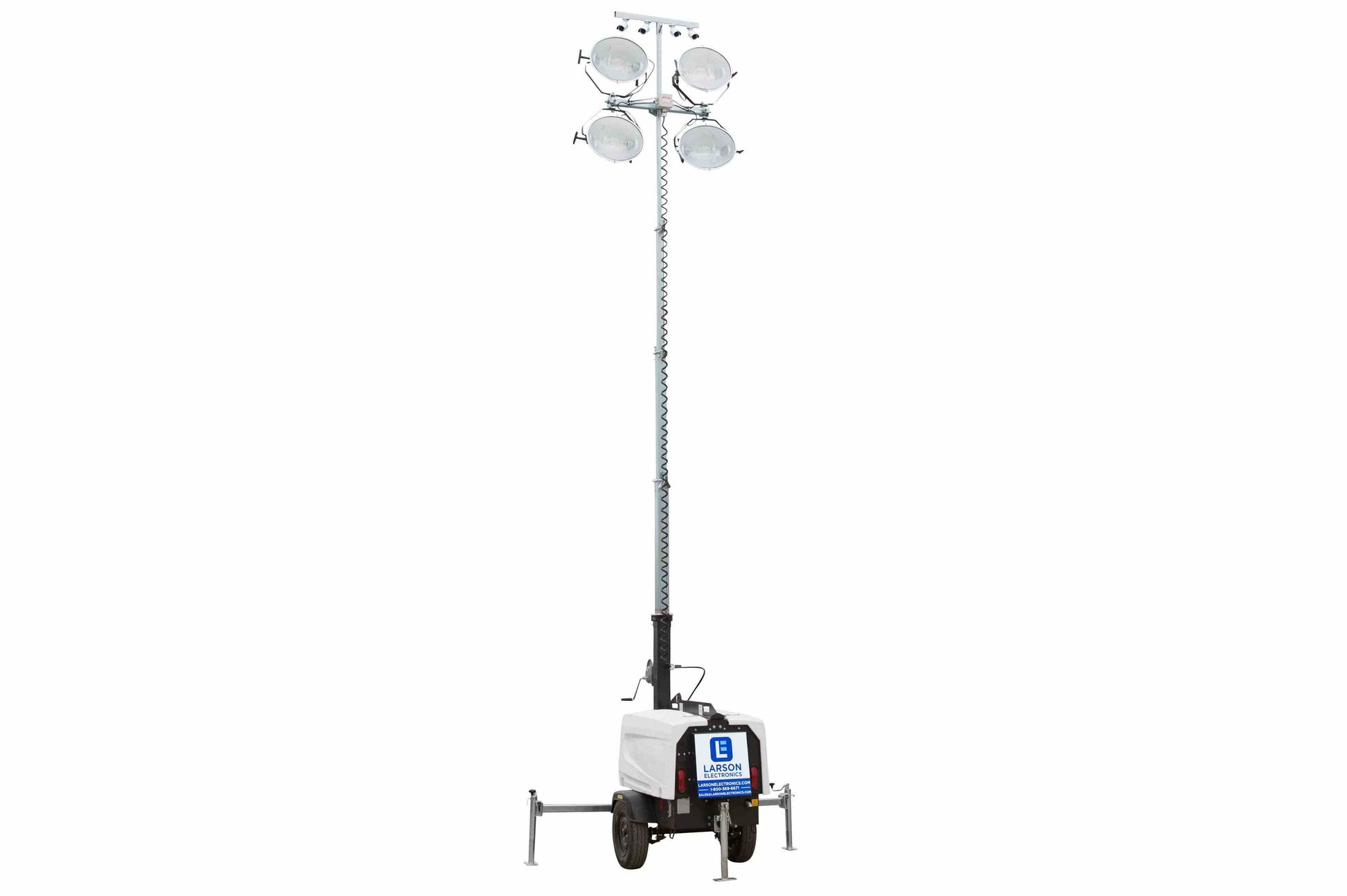

The WCDE-4-MHL-4X3MP-2TB-WF mobile security light tower from Larson Electronics is a towable lighting package powered by a water cooled diesel engine turning a single bearing 7,500 watt generator. There are four, PoE powered IP cameras mounted on this unit, supported by a 2TB NVR at the base of the tower. With four 1,000 watt metal halide lamps producing 440,000 lumens this unit will illuminate a 6-7 acre area continuously without refueling for up to 50 hours. This mobile security light tower may be used to monitor remote locations, such as construction sites, outdoor events, military bases, emergency camps, agricultural operations, commercial farming properties and anywhere an extended operation capable mobile lighting solution is needed. The WCDE-4-MHL-4X3MP-2TB-WF is equipped with a WiFi access point that allows people within WiFi range to connect to the cameras.
The WCDE-4-MHL-4X3MP-2TB-WF mobile security light tower is a self contained towable light tower package that produces enough light to illuminate an area up to 7 acres in size. This unit contains a water cooled diesel engine powering a 7,500 watt generator, which supplies the current to four 1,000 watt metal halide lamps producing 110,000 lumens each for a combined total of 440,000 lumens of light. This unit can run uninterrupted for 50 hours straight without refueling and includes a telescoping light mast which can elevate the four metal halide lamps to a height of 25 feet.
This mobile security light tower features four, PoE powered IP cameras, fix mounted on the tower. Glare shields can be found on the unit, which prevents light from interfering with the camera. Each camera supports up to 3 megapixels (2048 x 1536 resolution), 4mm lens with a 79-degree viewing angle, a CMOS sensor, and an infrared LED array with automatic cutover for low light recording. The camera may be used with a RJ-45 10/100Mb ethernet slot.
Frame Rate
Record Time
16 Days
6 Days
7 Days
4 Days
7 Days
3 Days
4 Days
3 Days
For video recording options, the tower comes with a NVR, mounted at the base of the unit. This component is locked to prevent tampering or theft. The 3300 Series 8-Channel NVR supports 2TB of storage and 80/160 Mbps incoming/outgoing bit rate. This unit features four recording modes (Schedule, Continuous, Motion Detection and Event) with MP4 video offload format. One RCA input and four output (VGA, HDMI, USB 2.0 and USB 3.0) slots can be found on the NVR.
Note: Reviewing footage must be done by connecting a monitor and mouse to the unit (supplied separately).
The WCDE-4-MHL-4X3MP-2TB-WF mobile light tower incorporates a long list of impressive features. The diesel engine is a water cooled Kubota that operates at 3600 rpm. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. A 28 gallon fuel tank allows the engine to operate for 50 hours continuously without refueling. The 7,500 watt generator is a single bearing design and produces 120/240 volt current at 60 Hz. The generator uses a four wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems.
The lighting system on this unit is comprised of four 1,000 watt metal halide lamps producing 110,000 lumens of light each attached to the end of the telescoping light boom. These floodlights produce a wide flood light pattern capable of illuminating a minimum of 5 acres with a combined total of 440,000 lumens of light. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom.
The operations system for this unit is a centrally located control panel within the light tower enclosure. Four circuit breaker protected switches allow individual control of the lights while an individual hour meter tracks unit operating time. Also included is an alternator warning light, fuel primer system, preheating switch, and a 120 volt GFCI duplex receptacle for auxiliary power takeoff.
WiFi Access Point:
The WCDE-4-MHL-4X3MP-2TB-WF can generate its own WiFi network via the equipped WiFi access point. Operators within WiFi range can remotely connect to the unit for access to the cameras.
Telescoping Boom:
The telescoping boom consists of five sections extending up to 25 feet through the use of a manual self braking winch and allows for rotating the lights 360 degrees. The telescoping boom is constructed of galvanized steel to resist rusting and corrosion and is capable of withstanding 50 mph winds when extended to its full height and the stabilizing outriggers are deployed. The stabilizing outriggers are a four point design with one located under the trailer tongue, two on the sides and one on the back of the unit. The two side outriggers are adjustable and include 1,000 lbs swivel jacks for leveling and stabilizing the tower.
All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. A spillage free frame with an external drain system will conatain all fluids to prevent road hazards or damage to the environment. Side wing doors provide access to the interior while latches provide secure closing when the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 73 Db noise level @ 23 ft. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the top section of the light mast. The entire unit is mounted onto a two wheel trailer with a 2,000 lbs leaf spring axle. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing.
Contact for more information about our custom options tailored to meet your specific industry needs.

Engine: Kubota Z482 EPA Tier 4
Engine Type: Vertical, liquid-cooled, 4-cycle diesel engine
Engine Speed: 3600 RPM
No. of Cylinders: 2
Generator: Sincro EK 2 MCT
Voltage: 120V Single Phase
Battery 12V
Fuel Cell Capacity: 28 Gallons
Fuel Delivery: Electric
Noise Level: Db level 73 @ 23 ft
Mast Type: Manual Crank-Up
Boom Height: Up to 25`
Materials: Galvanized Steel 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis
Operation: Manual Hand Crank Winch
Winch: 2500lb, Self-Braking
Stages: Five
Lamp Type: Metal Halide
Lamp Qty: 4
Total Lumens: 440,000 (110,000 per lamp)
Luminous Efficacy: 110 lm/w
Efficacy Luminous : 110 lm/w
: Kubota Z482 EPA Tier 4 Vertical, liquid-cooled, 4-cycle diesel engine 3600 RPM 2 120V Single Phase 28 Gallons Electric Db level 73 @ 23 ft Manual Crank-UpUp to 25` Galvanized Steel Manual Hand Crank Winch 2500lb, Self-Braking Five Metal Halide 4 440,000 (110,000 per lamp)Luminous Efficacy 110 lm/w Neutral White - 4100K 20,000 hours 6 to 7 AcresInfrared IP Camera 12V DC CMOS 79 Degrees IP/Network Wired 4mm @ F2.0 0.07 Lux RJ-45 10/100Mb Ethernet Slot 3MP Mini CCTV Camera 2048 x 1536 ONVIF, PSIA, CGI, ISAPI H.264/M-JPEG3300 Series 8-Channel Network Video Recorder2TBX1 10 /100/1000 Mbps Self-Adaptive Ethernet Interface x8 10 /100 Mbps PoE Ethernet Interfaces80 Mbps Incoming, 160 Mbps OutgoingH.265/H.264/H.264 OVCUp to 8 MPUp to 60fps Per ChannelSchedule, Continuous, Motion Detection and EventMP410% ~ 90%14°F ~ 131°F(1) RCA(1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (front), (1) USB 3.0 (rear)1.8" H x 15" W x 11.4" D6.6 Lbs 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis2in ball / pintle combo Industrial Grade Paint (1) 2,000 lbs 2,000 lbs Double Eye Leaf Springs(4) Adjustable Outriggers w/ 2,500 lbs Manual Leveling JacksDOT Approved tail, side, brake, and directional lights 1-800-369-6671 (2) 13" 5x4.5 Steel Rims 1-214-616-6180 155R13
Color Temperature: Neutral White - 4100K
Life Expectancy: 20,000 hours
Coverage: 6 to 7 Acres
Camera Type: Infrared IP Camera
Power Supply: 12V DC
Sensor: CMOS
Viewing Angle: 79 Degrees
Connectivity: IP/Network Wired
Lens: 4mm @ F2.0
Minimum Illumination: 0.07 Lux
Network Interface: RJ-45 10/100Mb Ethernet Slot
Pixels: 3MP Mini CCTV Camera
Image Resolution: 2048 x 1536
System Capacity: ONVIF, PSIA, CGI, ISAPI
Video Compression: H.264/M-JPEG
Video Recorder Type: 3300 Series 8-Channel Network Video Recorder
Storage Capacity: 2TB
Ethernet Speed: X1 10 /100/1000 Mbps Self-Adaptive Ethernet Interface x8 10 /100 Mbps PoE Ethernet Interfaces
Bit Rate: 80 Mbps Incoming, 160 Mbps Outgoing
Compression Type: H.265/H.264/H.264 OVC
Recording Resolution: Up to 8 MP
Frame Rate (fps): Up to 60fps Per Channel
Recording Modes: Schedule, Continuous, Motion Detection and Event
Video Offload: MP4
Operating Humidity: 10% ~ 90%
Operating Temp: 14°F ~ 131°F
Input: (1) RCA
Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (front), (1) USB 3.0 (rear)
Dimensions: 1.8" H x 15" W x 11.4" D
Weight: 6.6 Lbs
Materials: Galvanized Steel 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis
Hitch: 2in ball / pintle combo
Finish: Industrial Grade Paint
Axle: (1) 2,000 lbs
Suspension: 2,000 lbs Double Eye Leaf Springs
Outriggers: (4) Adjustable Outriggers w/ 2,500 lbs Manual Leveling Jacks
Lighting: DOT Approved tail, side, brake, and directional lights
Wheels: (2) 13" 5x4.5 Steel Rims
Tires: 155R13
