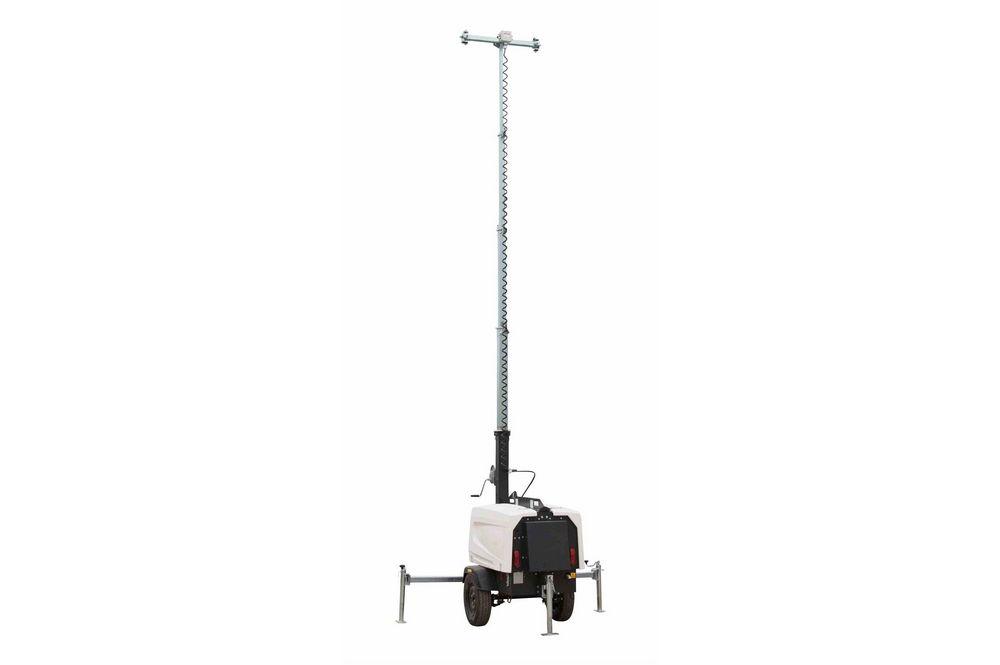

30' Telescoping Tower - 6 kW Generator - Water Cooled Diesel Engine - No Lamps

LARSON ELECTRONICSSKU: PL3-WCDE-6K-30-NL
filler

Price:
Sale price$44,093.99

Description

Specifications / Additional Information
WCDE-6K-30-NL Mobile Tower Protection
Genset Specs: 6KW Kubota Genset
Engine: Kubota Z482 EPA Tier 4 28 Gallon Fuel Cell
Engine Type: Vertical, liquid-cooled, 4-cycle diesel engine Up to 50+ Hour Continuous Operation
Engine Speed: 3600 RPM External Grounding
No. of Cylinders: 2 Low Oil, High Engine Temp Auto Shut-Off
Generator: Sincro EK 2 MCT Hour Meter - Alternator Warning
Voltage: 120V Single Phase Withstands 50Mph Winds at Full Extension
Battery 12V Four Point Outrigger System
Fuel Cell Capacity: 28 Gallons Steel Trailer w/ Industrial Grade Paint Finish
Fuel Delivery: Electric
Noise Level: Db level 73 @ 23 ft
Mast Specs:
Mast Type: Manual Crank-Up
Boom Height: Up to 30`
Materials: Galvanized Steel
Operation: Manual Hand Crank Winch
Winch: 2500lb, Self-Braking
Stages: Five
Trailer Specs
Materials: 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis
Hitch: 2in ball / pintle combo
Finish: Industrial Grade Paint
Axle: (1) 2,000 lbs
Suspension: 2,000 lbs Double Eye Leaf Springs
Outriggers: (4) Adjustable Outriggers w/ 2,500 lbs Manual Leveling Jacks
Lighting: DOT Approved tail, side, brake, and directional lights
Wheels: (2) 13" 5x4.5 Steel Rims
Tires: 155R13
Shipping Dimensions: 72"L x 48"W x 108"H
Shipping Weight: 1600 lbs
' Product Overview '
Made in Texas The WCDE-6K-30-NL Telescoping Tower from Larson Electronics is a towable package powered by a water cooled diesel engine turning a single bearing 6,000 watt generator. Capable of reaching heights up to 30 feet, operators can mount customer-provided lighting systems on the mast for elevated illumination. The entire assembly is mounted on a trailer. The WCDE-6K-30-NL is a self contained towable tower package for outdoor locations. This unit contains a water cooled diesel engine powering a 6,000 watt generator, which supplies the current to customer-provided lighting systems. This unit can run uninterrupted for 50 hours straight without refueling and includes a telescoping mast which can elevate equipment to a height of 30 feet. The WCDE-6K-30-NL mobile tower incorporates a long list of impressive features. The diesel engine is a water cooled Kubota that operates at 3600 rpm. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. A 28 gallon fuel tank allows the engine to operate for 50 hours continuously without refueling. The 6,000 watt generator is a single bearing design and produces 120/240 volt current at 60 Hz. The generator uses a four wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems. Telescoping Boom: The telescoping boom consists of five sections extending up to 30 feet through the use of a manual self braking winch and allows for rotating the mast 360 degrees. The telescoping boom is constructed of galvanized steel to resist rusting and corrosion and is capable of withstanding 50 mph winds when extended to its full height and the stabilizing outriggers are deployed. The stabilizing outriggers are a four point design with one located under the trailer tongue, two on the sides and one on the back of the unit. The two side outriggers are adjustable and include 1,000 lbs swivel jacks for leveling and stabilizing the tower. Controls: The operations system for this unit is a centrally located control panel within the tower enclosure. Also included is an alternator warning light, fuel primer system, preheating switch, and a 120 volt GFCI duplex receptacle for auxiliary power takeoff. Housing: All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. A spillage free frame with an external drain system will conatain all fluids to prevent road hazards or damage to the environment. Side wing doors provide access to the interior while latches provide secure closing when the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 73 Db noise level @ 23 ft. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the top section of the mast. The entire unit is mounted onto a two wheel trailer with a 2,000 lbs leaf spring axle. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing.
