25' Mobile Tower with Diesel Engine Generator - 50 Hours Runtime on One Tank - Durable Construction

LARSON ELECTRONICSSKU: PL3-WCDE-7.5K-NL
filler

Price:
Sale price$31,185.99

Description

Specifications / Additional Information
WCDE-7.5K-NL Tower and Generator Quick Summary
Tower Dimensions: 25` Raised / 8.2` Lowered IP56 Ingress Protection
Weight: 1527 lbs 360° Rotating Tower
Ambient Operating Temperature: -10°C to +49°C 50+ Hour Runtime on Single Tank
Tower Material: Galvanized Steel 20 units fit inside in a 53` Trailer
Generator: 7.5kW Sincro Generator
Fuel Capacity: 28 Gallons
Toll Free:1-800-369-6671

' Product Overview '

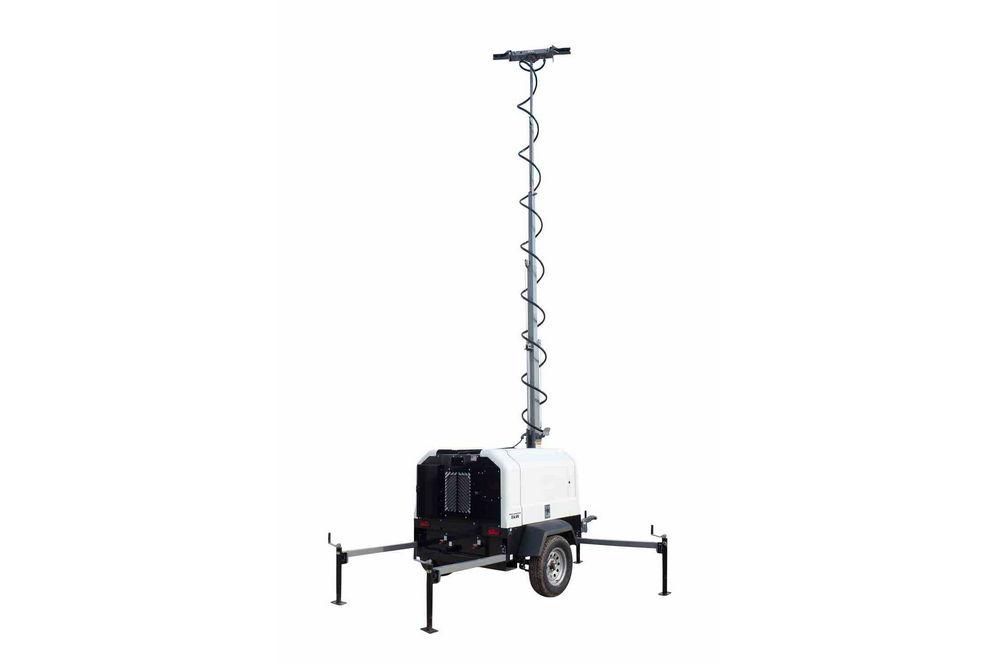

Made in the USA The WCDE-7.5K-NL metal halide tower and generator from Larson Electronics offers tough and durable construction and reliable and efficient performance in an easy to operate, self-contained portable unit. A 28 gallon generator mounted to a steel unibody trailer provides stand alone power for 50 hours on a single tank of fuel, allowing operators to keep working no matter how remote the location. Rugged IP56 rated construction designed to withstand the rigors of harsh outdoor conditions and grueling heavy duty use make this tower and generator combo an ideal choice for industrial applications, construction sites, marine use, mining, and emergency services. Operators can mount metal halide, high pressure sodium or LED light heads to the WCDE-7.5K-NL tower and generator for a remote area lighting solution. Tower & Trailer:The telescoping tower on this unit reaches 25` when fully extended and folds to a compact 8.2` for storage and transport. A rear operated manual winch allows operators to easily raise, lower, or rotate the mast through a full 360° of movement as needed. A stepping pad allows operators to make adjustments from the ground with ease.
Skid pockets allow the unit to be moved with a forklift
The unibody trailer features a formed and welded steel frame, 13" tires and wheels, a 4-point leveling system, and a foldable tongue with a reversible 2-inch ball coupling/pintle hitch. The 4-point base consists of three sliding outriggers each with a drop leg jack (one at the rear and one on each flank) and a 1,000lb stabilizing jack connected to the tongue. Both the main stabilizing jack and the outrigger jacks can be manually adjusted to the desired position using hand cranks. This 4-point design allows the unit to be operational in winds up to 51 mph. The reversible hitch consists of of a standard 2" ball on one end and a 3" pintle towing hitch on the other end. To switch ends, the operator simply unbolts the hitch attachment, flips it to the desired end, and reinserts the bolt. This trailer also features forklift pockets for easy lifting and loading/unloading of the unit. With compact stowing dimensions of 5.48` x 3.6` x 8.2`, a 48` truck trailer can hold 18 of these light towers, and a 53` trailer can carry 20 units.
Generator: An 7.5kW Sincro generator with a Kubota Z482 EPA Tier 4 engine provides stand alone power to this light tower. Equipped with a fuel level indicator and an easy to reach exterior fill neck, this generator has a 28 gallon tank and provides a minimum of 50 hours of continuous operation.
Click Photo to Enlarge
A Genset Protect system safeguards against the engine starting and stopping with the AC power as well as ensuring the lighting system is turned off at both the startup and shutdown of the unit. This model is equipped with a 12V electric starter and a glow plug cold starting system. All of the operating components are housed with a protective compartment with side lift up doors for easy access to the controls and engine/generator assembly. The gull-wing access doors and canopy is able to withstand dents, scratches, and corrosion and continues to look new for years. Applications:Construction, temporary lighting, road side illumination, plant turn arounds, outdoor events, military, road works, and public lighting.
