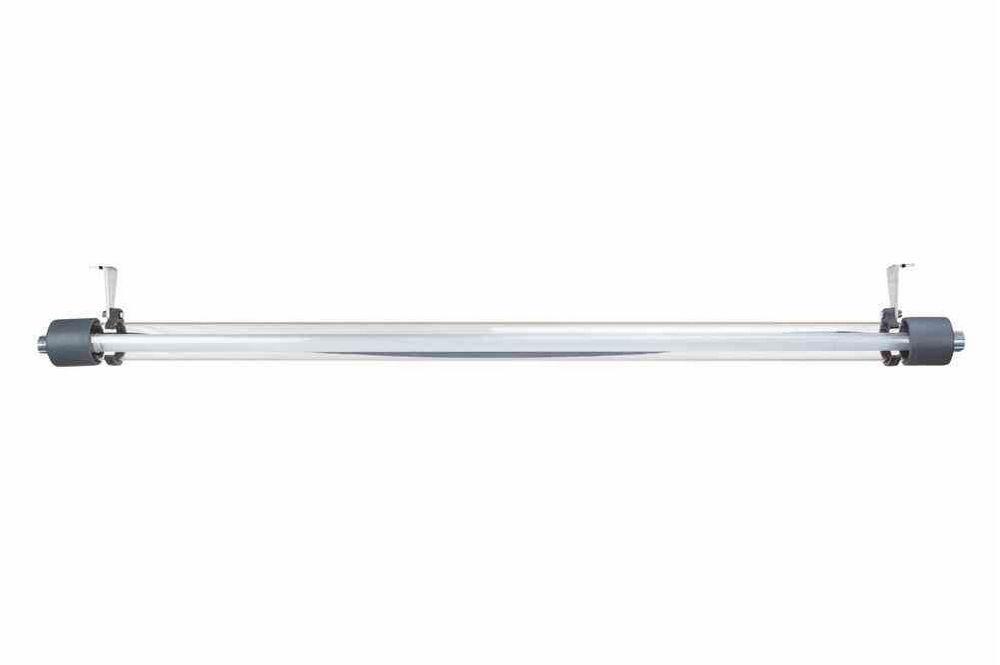

4' Wash Down Light - 28 Watts - 3500 Lumens - Food Preperation - Surface Mount - 120/277V or 12/24V


Sale price$1,127.99


Specifications / Additional Information
WDL-48-1L-LED Linear Light Ratings
Lamp Type: LED T8 Tube Wet Area Approved
Dimensions: 60"L x 3.6" Diameter IP66 Rated for High Pressure Jets in Washdown Environments
Weight: 3 lbs Corrosion Resistant
Voltage: Universal- 100-277vAC, 50/60Hz or 11-25 AC/DC 50,000 Hour LED life
Total Watts: 28W High Output LED Lamp
Total Lumens: 3,500 Internal LED Driver - No Ballasts
Luminous Efficacy: 125 Lm/W Fluorescent Style LED Tube
LED Lamp Life Expectancy: 50,000+
Color Temp:5600K
Color Rendering Index: >80
Beam Angle: 150°
Amp Draw: 0.23 amps @ 120 volts
Power Efficiency: 90%
Power Factor: >0.95
Ambient Operating Temperature: -20°C to +85°C
Operating Temperature Range: -40° to +85°
Minimum Operating Temperature: -20°C
Maximum Case Temperature: 160°C
Housing Material: Polycarbonate
Lens Material: Polycarbonate Toll Free: 1-800-369-6671
Gasket: Silicone Intl:1-903-270-1187
Mounting: Aluminum L-Brackets, Chain Hanging, or Safety Cable Hanging Fax:1-903-498-3364
Wiring Hub: 3/4" or 1/2"
' Product Overview '
Made in Texas Providing 3,500 lumens of clean, crisp white light with a CRI of >80 and a color temperature of 5600K, the WDL-48-1L linear LED light from Larson Electronics clearly and directly illuminates work areas while eliminating dark spots and shadows, making it ideal for work environments where bright uniform light and excellent color rendering are crucial to completing tasks safely. With an impact and shock resistant no-glass, polycarbonate T8 LED bulb, sealed polycarbonate end caps, and corrosion resistant aluminum hardware, this IP66 rated waterproof linear light is unrivaled in providing reliable, stable lighting under even the harshest of conditions. The WDL-48-1L-LED linear light is consists of one LEDT8-28W-V1 28 watt T8 tube style LED bulb that draws 0.23 amps at 120 volts AC, polycarbonate end caps, and aluminum L brackets for mounting. Because the T8 tube is a self-contained lighting fixture in itself and requires no additional housing, this unit is ultra compact and low profile. Instead of using a fragile glass bulb as with traditional fluorescent lighting, the housing on this LED fixture is made of impact and shock resistant polycarbonate, making it a much safer and more durable option than fluorescent bulbs. The WDL-48-1L Linear LED Light is the ideal replacement for outdated traditional fluorescent fixtures. While fluorescents require additional space for a ballast, contain fragile glass bulbs, and are notorious for annoying flickering and slow start up times, LED T8 tubes require no ballast, take up less space, provide instant full power illumination, and project a stable, no-flicker beam from a durable solid state lighting source. The T8 LED tube is lightly frosted and contains a built-in reflector to provide a wide, glare-free area of bright illumination. Providing 3,500 lumens of clean, crisp white light with a CRI of >80 and a color temperature of 5600K, the WDL-48-1L clearly and directly illuminates work areas while eliminating dark spots and shadows, making it ideal for work environments where bright uniform light and excellent color rendering are crucial to completing tasks safely. The WDL-48-1L-LED is built to withstand the challenges and rigors of wet environments and harsh conditions, including extreme temperature changes. With a tough, shatter resistant T8 LED tube sealed with polycarbonate end caps and equipped with corrosion resistant, non-sparking aluminum and nonmetal hardware, this compact and rugged IP66 rated light can withstand high pressure jets in washdown areas such as those found in food preparation and sanitation operations. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Mounting: This light is equipped with two heavy duty aluminum L brackets, each predrilled with a single hole, that allow for easy ceiling, wall, and surface mounting. Each bracket has a center screw that allows the operator to adjust the fixture position by simply loosening the screw, manually moving the lamp to the desired position, and retightening the screw. Alternative mounting options include chain hanging or safety cable hanging as well as wiring multiple units together end to end via conduit. Power/Wiring: Wiring for this unit is brought in through the ¾” or ½” hubs on either end. Multiple units can be wired together by bringing conduit to each fixture. The internal driver in the WDL-48-1L-LED provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. As a result, this light can operate on current ranging from 110 to 277V AC for high voltage models or 11 to 25V AC/DC for low voltage models with no modification necessary. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in premature LED failure. Applications: Food Processing and Preparation, Automation, Washdown lighting, Inspection, Emergency Shelter Lighting, Hallway Lighting
Made in the USA Quality Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Machined aluminum body. 4. Superior color rendering compared to fluorescent and incandescent illumination. 5. Retains 70% lumen output after 50,000 operating hours. 6. Low profile - Lightweight 7 3,500 Lumen output from only 28 watts. 1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off – No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
