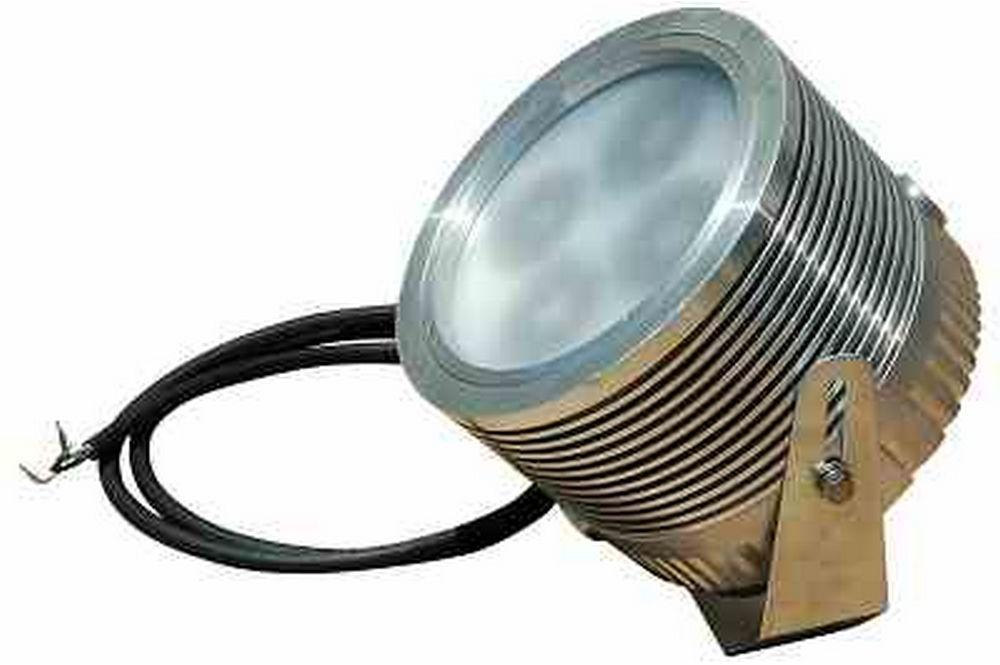

60 Watts Class 1 Division 2 LED Light for Hazardous Location Areas - 6' Cable w/ Flying Leads

LARSON ELECTRONICSSKU: PL3-XCANLEDAC-C1D2
filler

Price:
Sale price$3,314.00

Description

Specifications / Additional Information
XCANLEDAC-C1D2 Explosion Proof LED HAL-31L-LV Ratings/Approvals
Lamp Type: LED Class 1 Division 2 Groups A,B,C,D
Lamp Dimensions: 6.95" Diam"- 5.10"-Depth CSA 22.2 No. 250.0
Bracket Demensions: 4.63"H 7.25" W UL 1598
Weight: 9.5lb | 4.3 kg IP66 Ingress Protection
Watts: 60 T3 Temperature Rating
Voltage: 100-240 VAC, 50/60 Hz
Lumens: 2334
Lamp Life Expectancy: 100,000 Hours
CRI: CW: 75
Amps: 0.5 A @ 120 V
Light Color: CW: 6500K
Beam Type: 30° Spot or 100° Flood
Mounting: 3/4" Conduit, Aluminum 1" Yoke with 1/4"-20 Screws
Temp Range: -40°C – +85°C
Wiring: 5Ft Lead | White: + Black: - E-mail:

' Product Overview '
Buy American Compliant The XCANLEDAC-C1D2 is a multi voltage explosion proof lighting solution approved for Class 1 Division 2 environments and U.L. 1598 compliant for use in wet locations. This powerful LED light produces 2334 lumens, operates from 120-240 VAC, and is available in a variety of configurations to allow tailoring to the specific requirements of various applications. The XCANLEDAC-C1D2 is designed to provide a high output and ruggedly durable lighting solution for applications where Class 1 Division 2 compliance is required. This low voltage explosion proof light can be operated 120-240 volts AC current and includes 5 feet of connecting lead with standard two wire configuration. This light is constructed of precision machined aluminum for excellent strength and durability and is rated IP66 for ingress protection against direct exposure to high pressure water spray. The XCANLEDAC-C1D2 is also available in a 30 degree spotlight beam configuration for distance and a 100 degree configuration for wide area illumination and has a cool white color temperature for maximum illumination. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable metal halide and high pressure sodium lamps.
Durability/Mounting: The XCANLEDAC-C1D2 explosion proof LED light is constructed of machined aluminum for high strength and durability. The housing is IP66 rated, providing protection against intrusion into the housing from oils and water directly sprayed on the housing at high pressure. This design is weather resistant, suitable for indoor or outdoor applications, and ideal for areas where wet conditions are commonly encountered. The LEDs in this unit are Cree X-Lamp XR-E units that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 90 lumens per watt output and have a 80% lumen retention at 60,000 hours, giving them better efficiency and operational life than comparable LEDs. Mounting for this unit is provided by an included aluminum yoke that allows vertical adjustment of the light once installed. The mounting yoke is 1 inch wide and predrilled with two ¼ inch holes spaced 2 inches apart for easy and secure mounting to flat surfaces. The entire assembly weighs 4.5 lbs and measures only 6.9 inches in diameter and 3 inches deep, making it ideal for mounting in areas where space is limited and a heavy fixture cannot be installed due to lack of support. Wiring/Power: These explosion proof LED lights are equipped with 5 feet of cord containing a standard two wire (White+ Black-) connecting configuration. These lights operate from 100 to 240 volt AC current and draw 60 watts 0.5 amps on 120 VAC and 0.25 amps on 240 VAC. Versatility: The XCANLEDAC-C1D2 is approved for Class 1 Division 2 groups A,B,C and D locations. This unit carries an IP66 waterproof rating ensuring protection against ingress from oils and water sprayed at high pressure directly on the fixture. This light is ideal for indoor or outdoor applications and industrial operations with hazardous location classification where wet conditions are commonly encountered. These lights are also available in a 30 degree spotlight configuration for long beam length or 100 degree flood configuration for wide area coverage.
