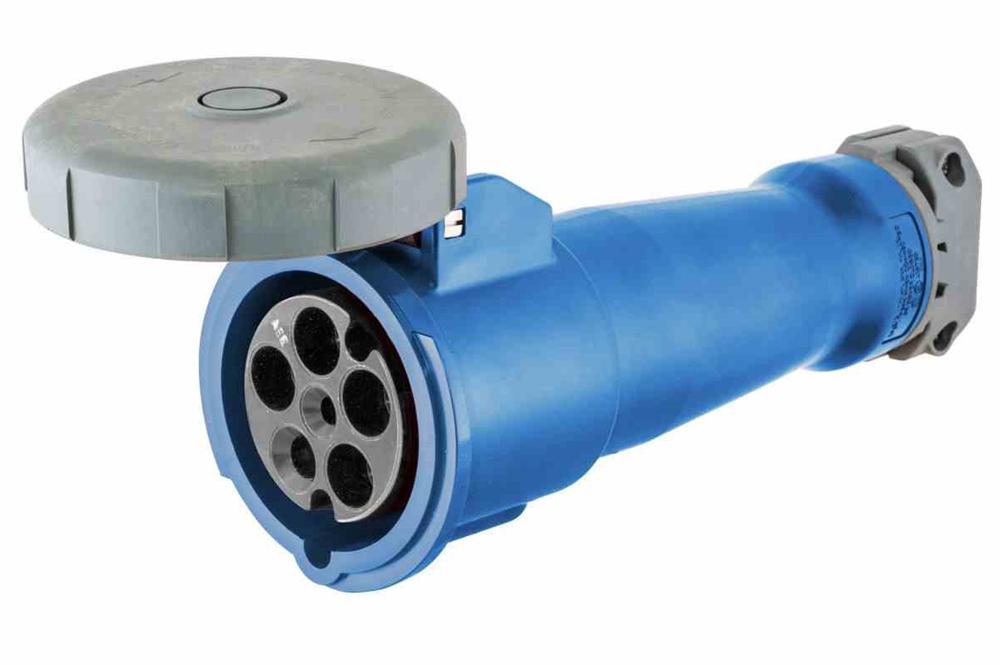

IEC 60309 Waterproof Connector, 100 Amps 3P+N+E, 208/120V 3PH 4P5W, Pin & Sleeve, IP67

LARSON ELECTRONICSSKU: PL3-XLE-PA-IP67-309.NA-3PH-100A-208Y.120-4P5W-C
filler

Price:
Sale price$1,458.99

Description

Specifications / Additional Information
GAU-120.208V-4P5W-32A-C-IP67 Water Tight Pin and Sleeve Connector Certifications - Compliance
Device Series: IEC 60309 (North American Standard) Certified for United States & Canada
Device Type: Connector NRTL Certified to UL 1682, UL 1686
Dimensions: - NRTL Certified to CAN/CSA C22.2 No 182.1
Weight: - CE Certified, Low Voltage Directive 73/23/EEC
Amperage Rating: 100A CE Certified, Low Voltage Directive 93/68/EEC
Voltage: 208/120 NRTL Certified to 60309-1, 60309-2
Frequency: 50/60 Hz RoHS Certified
Phase: 3-Phase Wye Compatible with IEC 60309 Compliant Products
Configuration: 4P5W (3P+N+E) IP67/IP69K Rated Weatherproof
# of Poles: 4-Pole IK07 Rated Drop Resistant
# of Wires: 5-Wire Flame Retardant (UL94 V2)
Max Voltage Rating: 250V 3PH Certified for Full Load Interrupting
Clock Hour: 9H Current Interrupting: Certified for current interrupting at full rated current
Cord Range: .950 - 1.875 Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
Dielectric Voltage: 2000V� for 1 min Flammability: Rated V-2 per UL 94
# of Operations: > 1000� connects/disconnects under load, at full rated current and voltage Ingress Protection Rating: IP67/IP69K
Minimum Withdrawal Force: 20lbs Moisture Resistance: Immersed for 24 hours in 5cm of 25°C water per UL 1682
Temperature Rise: Max +30°C at full-rated current after 50 cycles of OL at 150% rated current Crush Test: 250lbs for 1 min after -25°C for 6 hrs
Operating Temperature Range: -25°C to +65°C Impact Resistance: Drop from 30" 8 times after conditioning to -25°C for 6 hrs
Waterproof Rating: IP67, IP69K, NEMA 4X
Shock Resistance: IK09 Mating Plug: XLE-PA-IP67-309.NA-3PH-100A-208Y.120-4P5W-P
Flammability: V-2 Rated Mating Receptacle: XLE-PA-IP67-309.NA-3PH-100A-208Y.120-4P5W-R
Insulation Resistance: 500V for 1 min; >= 5MΩ Mating Connector: XLE-PA-IP67-309.NA-3PH-100A-208Y.120-4P5W-C
Cable Secureness: "Force: 150lb; Torque: 2.0 ft-lb; Max Disp: <= 3/32""" Mating Inlet: XLE-PA-IP67-309.NA-3PH-100A-208Y.120-4P5W-B
Seals: Neoprene
Material, Housing Body: Toughened PVC Cross Compatible: 5100C9W
Material, Housing Cover: Toughened PVC
Material, Contacts: Brass
Material, Contact Carrier: Nylon
Material, External Screws: Acid-Proof Stainless Steel
Material, Internal Screws: Zinc-plated steel
Material, Phase/Ground Sleeves: Brass
Material, Sleeve Spring: Stainless Steel
Material, Terminal Screws: Steel
Color: Blue Int'l: 1-214-616-6180
Shipping Dimensions: -
Shipping Weight: -
' Product Overview '
The Larson Electronics XLE-PA-IP67-309.NA-3PH-100A-208Y.120-4P5W-C is an IEC 60309 standard industrial use waterproof Connector for industrial work sites. The 100-amp pin/sleeve Connector is configured to operate on 3-Phase Wye 208/120V AC power and features an IP67 waterproof rating. Designed for rugged facilities, the %Pole%-pole %Wire%-wire unit can be disconnected under load up to 1000� times. The XLE-PA-IP67-309.NA-3PH-100A-208Y.120-4P5W-C is an industrial grade Connector with waterproof properties. This pin/sleeve unit is compatible with 3-Phase Wye 208/120V and holds a 100-amp rating. The IP67-rated Connector is constructed of toughened PVC, reinforced thermoplastic polyester and stainless steel. The XLE-PA-IP67-309.NA series from Larson Electronics complies with the IEC 60309 standard for North American equipment, is a direct cross for 5100C9W , and is cross compatible with other equipment designed to the same standard. The XLE-PA-IP67-309.NA-3PH-100A-208Y.120-4P5W-C is a Blue Connector with a grounding pin located at clock hour 9.
