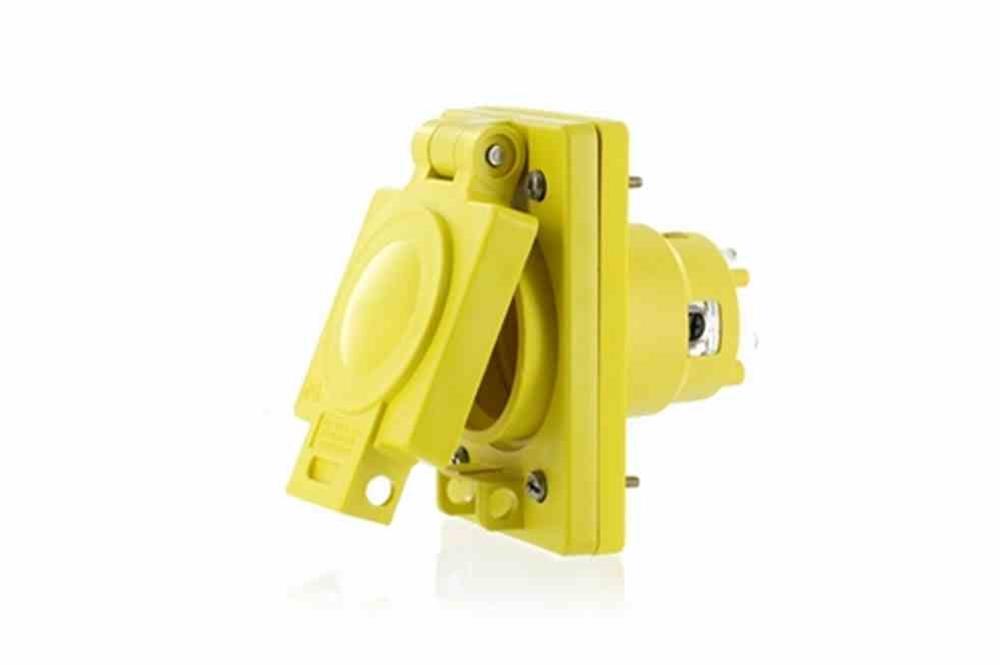

20A Weatherproof Receptacle w/ Face Plate and Flip Cover - 250V - IP67/IP69K

LARSON ELECTRONICSSKU: PL3-XLE-PA-IP67-N.SB-20A-250V-2P3W-RB
filler

Price:
Sale price$292.99

Description

Specifications / Additional Information
XLE-PA-IP67-N.SB-20A-250V-2P3W-RB Weatherproof Outlet Ratings
Device Type: Receptacle IP67/IP69K Rated Weatherproof
Dimensions: 4.63" x 3.13" x 2.9"
Weight: -
Amperage Rating: 20A
Voltage: 250V
Frequency: 50/60 Hz
Phase: 1-Phase
Configuration: 2P3W
# of Poles: 2-Pole
# of Wires: 3-Wire
Max Voltage Rating: 250V
Dielectric Voltage: 2000V for 1 min
Terminal Accommodation: #16 AWG to #10 AWG
Compatibility: XLE-PA-IP67-N.SB-20A-250V-2P3W-P
Operating Temperature Range: -40°C to +60°C
Waterproof Rating: IP67, IP69K
Shock Resistance: -
Flammability: V-2 Rated
Material, Housing Body: -
Material, Cover: Valox PBT, Santoprene TPV
Material, Contacts: Nickel-plated Brass
Material, Screws: Stainless Steel
Material, Compression Nut, Wiring Module: Nylon, Valox PBT
Material, Torsion Spring Mechanism (Flip Lids): Stainless Steel
Material, Contacts/Terminal Screws: Electro-less Nickel-coated Brass
Color: Yellow Int'l: 1-214-616-6180
Shipping Dimensions: -
Shipping Weight: -
' Product Overview '
The Larson Electronics XLE-PA-IP67-N.SB-20A-250V-2P3W-RB is an IEC 60309 standard industrial use weatherproof receptacle for rugged work sites. The 20-amp receptacle is configured to operate on 1-Phase 250V AC power and features IP67 and IP69K waterproof ratings. The XLE-PA-IP67-N.SB-20A-250V-2P3W-RB is an industrial grade receptacle with waterproof properties. This receptacle unit is compatible with single-phase 250V and holds a 20-amp rating. Protected by a flip cover and equipped with a face plate, the IP67 and IP69K rated device is constructed of valox PBT, nickel-plated brass and stainless steel. The XLE-PA-IP67-309.NA series from Larson Electronics complies with the IEC 60309 standard for North American equipment. The XLE-PA-IP67-N.SB-20A-250V-2P3W-RB is a yellow receptacle.
