RJ45 Breakout

SparkFunSKU: PL4-BOB-00716
filler

Price:
Sale price$8.99

Description

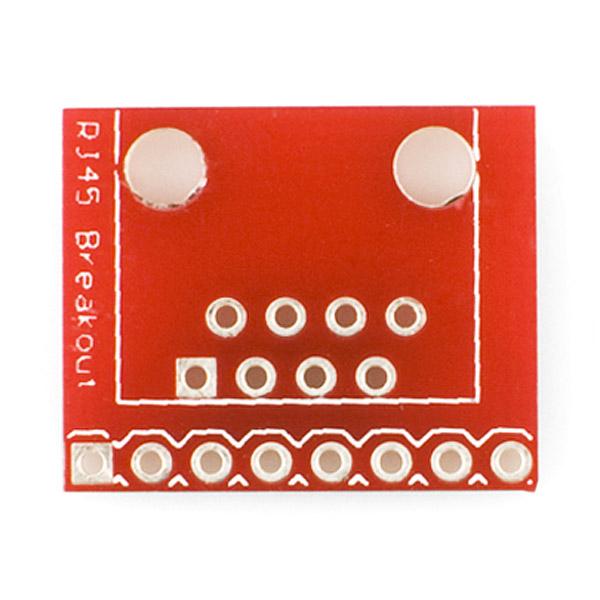

RJ45 connectors are the kind that are used for Ethernet jacks, but they make great general purpose connectors when you need a lot of conductors. This is a small PCB that brings out the pins of the RJ45 connector to an in-line 0.1" footprint. Use with break-away headers for breadboarding or create your own RJ45 cable. Check the related items for Ethernet cable and connectors to go with it!

We used these connectors extensively in the [Sound Squid](http://www.sparkfun.com/news/586) demo!

**Note:** This is the **PCB only** - You can get the specific [RJ45 8-Pin Connector here](https://www.sparkfun.com/products/643) or in the Hookup Accessories below!

**Features:**

* 0.7x0.8"

**Documents:**

* [Schematic](https://cdn.sparkfun.com/datasheets/BreakoutBoards/SparkFun_RJ45%20Breakout%20v11.pdf)
* [Eagle Files](https://cdn.sparkfun.com/datasheets/BreakoutBoards/SparkFun_RJ45%20Breakout%20v11.zip)
* [GitHub](https://github.com/sparkfun/RJ45_Breakout)
