Rotary Switch Breakout

SparkFunSKU: PL4-BOB-13098
filler

Price:
Sale price$9.99

Description

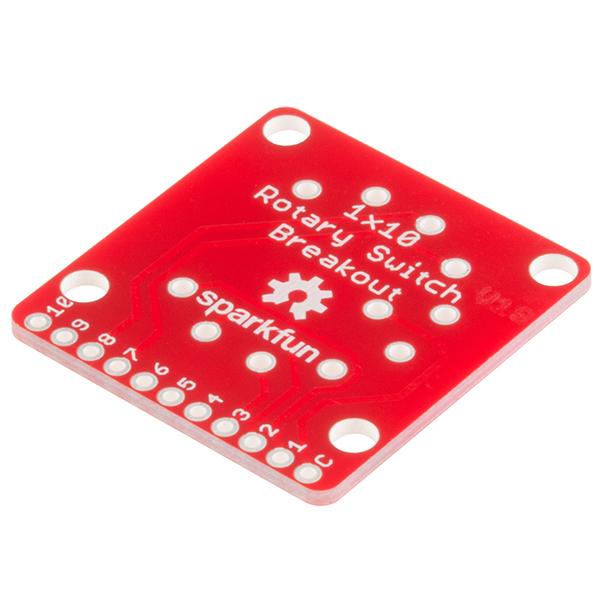

This is the SparkFun Rotary Switch Breakout, a very simple board designed to easily provide you access to each pin on our [10-position rotary switches](https://www.sparkfun.com/products/13253). This breakout allows you to easily add a rotary switch to your next project without having to worry about attaching its unique footprint to a custom board or solderless breadboard. All you need to do is solder the 10-position rotary switch into the breakout (using the silkscreen on the board as a guide) and each pin will become available for breadboard or hookup wire compatibility.

Each one of these boards breaks out the common ( C ), 1, 2, 3, 4, 5, 6, 7, 8, 9, and 10 positions on the board into 0.1" spaced pins.

**Note:** A 10-position rotary switch is NOT included with this breakout. Check the _Recommended Products_ section below for the correct switch.

**Documents:**

* [Schematic](https://cdn.sparkfun.com/datasheets/BreakoutBoards/Rotary_Switch_Breakout.pdf)
* [Eagle Files](https://cdn.sparkfun.com/datasheets/BreakoutBoards/Rotary_Switch_Breakout.zip)
* [GitHub](https://github.com/sparkfun/Rotary_Switch_Breakout) (Design Files)
