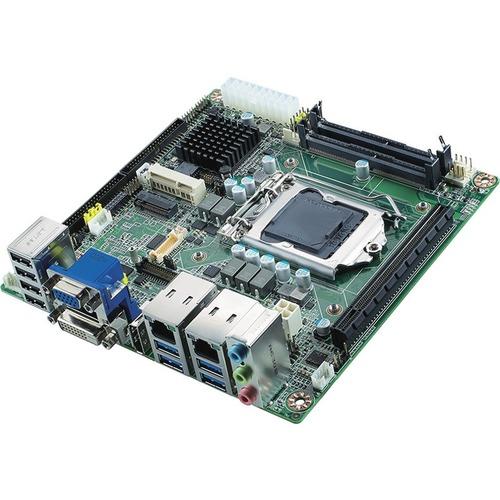

Advantech AIMB-205 Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - Mini ITX - 32 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - DisplayPort - 2 x SATA Interfaces
Advantech AIMB-205 Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - Mini ITX - 32 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - DisplayPort - 2 x SATA Interfaces
- Supports Intel® 7th Gen Core™ & 6th Gen Core™ i processor /Pentium / Celeron (LGA1151) with Intel H110 chipset
- Two 260-pin SO-DIMM up to 32GB DDR4 2400/2133 MHz SDRAM
- Supports Dual display configuration by multiple interface: DP/DVI-D/VGA/ LVDS(eDP)
- Supports DirectX 12, OpenGL 4.4, OpenCL 2.0 and outstanding 3D graphics performance
- Supports 1 F/S MiniPCIe and 1 M.2 2242 (B key for SSD)
| Audio Channels | 7.1 |
| Controller Type | Serial ATA/600 |
| Gigabit Ethernet | Yes |
| Onboard Video | CPU Dependent Video |
| Number of Total Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 2 |
| Form Factor | Mini ITX |
| Width | 6.70" (170.18 mm) |
| Depth | 6.70" (170.18 mm) |
| Number of SATA Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 6 |
| Number of M.2 Interfaces | 1 |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| WEEE | |
| Brand Compatibility | Intel |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 2 |
| Memory Form Factor | SoDIMM |
| Memory Speed Supported | 2400 MHz |
| 2133 MHz |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | AIMB-205G2-00A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | AIMB-205 |
| Product Name | AIMB-205 Desktop Motherboard |
| Brand Name | Advantech |
| DVI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Processor Supported | Pentium |
| Core i5 | |
| Core i3 | |
| Celeron | |
| Core i7 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Chipset Manufacturer | Intel |
