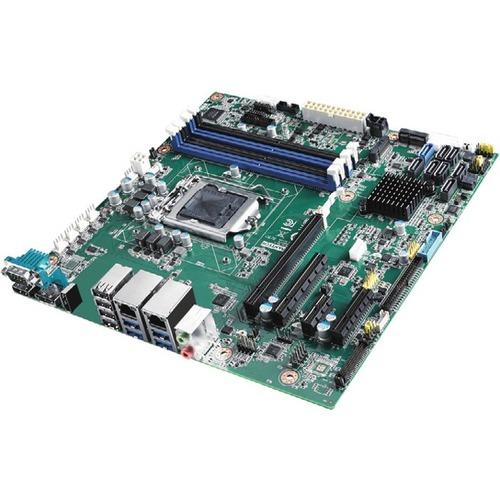

Advantech AIMB-586 Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - Micro ATX - 128 GB DDR4 SDRAM Maximum RAM - DIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces

AdvantechSKU: PL5-AIMB-586QG2-00A1E-132WWM-EN
filler

Price:
Sale price$493.99

Description

Advantech AIMB-586 Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - Micro ATX - 128 GB DDR4 SDRAM Maximum RAM - DIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces
Features
  • Supports Intel® Xeon® 8th / 9th Gen Core™ i7/i5/i3 processor with Q370/ C246/H310 chipset
  • Supports triple displays. (HDMI, 2DP++, eDP or LVDS display)
  • Supports Intel AMT 12.0 and Intel vPro competent
  • Supports PCIe Gen3, max up to 4x USB 3.1 (Gen2), 2x USB 3.0, 8x SATAIII,
  • 4 GbE LAN, 2x M.2 (M & E Key)
  • Supports Software RAID 0, 1, 5, 10, TPM 1.2/2.0 (optional)
  • Supports DeviceOn and Embedded Software APIs
Audio Channels 7.1
Controller Type Serial ATA/600
Gigabit Ethernet Yes
Onboard Video CPU Dependent Video
Form Factor Micro ATX
Width 9.60" (243.84 mm)
Depth 9.60" (243.84 mm)
Number of PCI Express x1 Slots 1
Number of Total Expansion Slots 3
Number of PCI Express x4 Slots 1
Number of PCI Express x16 Slots 1
Total Number of PCI Express Slots 3
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 4
Number of Onboard USB 2.0 Ports 2
Number of Onboard USB 3.0 Ports 2
Number of M.2 Interfaces 2
Processor Supported Core i5
Core i3
Celeron
Core i7
Xeon
Pentium Gold
Total Processor Supported 1
Processor Socket Socket H4 LGA-1151
Chipset Manufacturer Intel
HDMI Yes
Number of Network (RJ-45) Ports 2
DisplayPort Yes
Total Number of USB Ports 8
Number of USB 2.0 Ports 4
Number of USB 3.1 Ports 4
Maximum Memory Supported 128 GB
Memory Technology DDR4 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM
Memory Speed Supported 2400 MHz
2666 MHz
Package Contents
  • AIMB-586 Server Motherboard
  • 2 x SATA HDD Cable
  • 2 x SATA Power Cable
  • 1 x I/O Port Bracket
  • 1 x Startup Manual
  • 2 x M.2 Device Screw
Environmentally Friendly Yes
Environmental Certification WEEE
RoHS
China RoHS
Brand Compatibility Intel
Product Type Server Motherboard
Manufacturer Part Number AIMB-586QG2-00A1E
Manufacturer Website Address http://www.advantech.com
Manufacturer Advantech Co., Ltd
Product Model AIMB-586
Product Name AIMB-586 Server Motherboard
Brand Name Advantech
