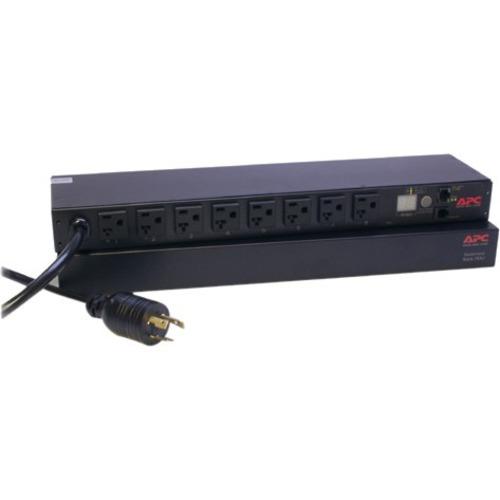

Schneider Electric APC by Schneider Electric Rack PDU, Switched, 1U, 20A, 120V, (8)5-20 - Switched - NEMA L5-20P - 8 x NEMA 5-20R - 120 V AC - 2.40 kW - Network (RJ-45) - 1U - Rack-mountable

Schneider ElectricSKU: PL5-AP7901B-7332DQ-0731304331575-EN
filler

Price:
Sale price$981.99

Description

APC by Schneider Electric Rack PDU, Switched, 1U, 20A, 120V, (8)5-20 - Switched - NEMA L5-20P - 8 x NEMA 5-20R - 120 V AC - 2.40 kW - Network (RJ-45) - 1U - Rack-mountable

Explore APC Rack Power Distribution in 3D animation.
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
Network (RJ-45) Yes
Limited Warranty 2 Year
Package Contents
  • Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
  • Cord Retention Vrackets
  • Horizontal Mounting Brackets
  • Installation Guide
  • User Manual
Environmentally Friendly Yes
Environmental Certification RoHS
REACH
Input Voltage 120 V AC
Output Voltage 120 V AC
Input Current 20 A
Power Rating (VA) 2.40 kVA
Plug/Connector Type NEMA L5-20P
Receptacle Type NEMA 5-20R
PDU Type Switched
Receptacle Detail 8 x NEMA 5-20R
Plug/Connector Detail 1 x NEMA L5-20P
Product Type PDU
Manufacturer Part Number AP7901B
Manufacturer Website Address http://www.schneider-electric.com
Manufacturer Schneider Electric SA
Product Name Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Brand Name APC by Schneider Electric
Weight (Approximate) 2.27 kg
Mount Type Rack-mountable
Rack Height 1U
Height 1.73" (43.94 mm)
Width 12.29 ft (3746.50 mm)
Depth 4.25" (107.95 mm)
