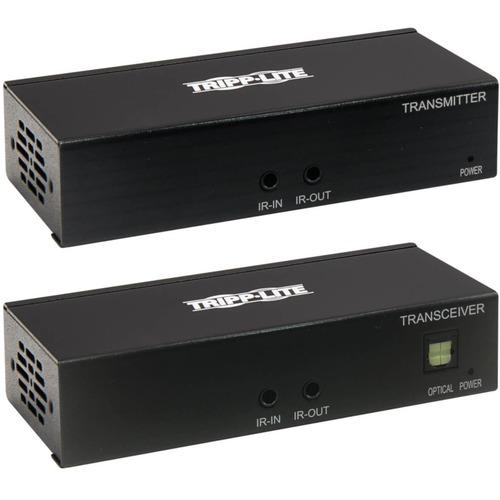

Tripp Lite Video Extender Transmitter/Receiver - 2 Input Device - 3 Output Device - 230 ft (70104 mm) Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K UHD - 3840 x 2160 - Twisted Pair - Category 6 - Wall Mountable, Rack-mountable - TAA Compl

Tripp LiteSKU: PL5-B127A-111-BHTH-450A1X-0037332258618-EN
filler

Price:
Sale price$385.99
 More payment options

Description

Tripp Lite Video Extender Transmitter/Receiver - 2 Input Device - 3 Output Device - 230 ft (70104 mm) Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K UHD - 3840 x 2160 - Twisted Pair - Category 6 - Wall Mountable, Rack-mountable - TAA Compliant

Features

HDMI Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls
This complete transmitter and transceiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127A-111-BHTH extends 4K signals from an HDMI source device to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. IR remote control lets you operate the source from the display end of the installation.

Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-111-BHTH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the transceiver, connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

Built-In PoC Technology Provides Transceiver Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the transceiver over Cat6 cable. LEDs on both the transmitter and transceiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the transceiver where needed without worrying about finding a nearby AC outlet.

Create a Daisy Chain to Achieve Even More Distance
This extender kit is capable of forming daisy-chain installations up to 920 feet from the transmitter by connecting additional B127A-110-BH transceivers (sold separately). Up to four total B127A-110-BH transceivers can be chained together, each capable of extending a 4K/60 Hz signal up to 230 feet per unit. The transceiver is also compatible with Tripp Lite's B127A-010-H signal booster (sold separately), which allows the signal to be boosted up to 400 feet total between the transmitter and transceiver. When used in a daisy-chain installation, this brings the total extension distance up to 1,090 ft. Note: B127A-010-H will only work when used in the first link of the daisy-chain installation.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and transceiver units work right out of the box with no software required. Mounting hardware is included for installing the transmitter on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite's P568- or P569-Series). Then, connect the transceiver to the display with another user-supplied HDMI cable. Finally, connect the two units with user-supplied Cat6 patch cable (such as Tripp Lite N202-Series cable).

Features
  • Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0
  • Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
  • Power over Cable (PoC) technology provides power to the transceiver via Cat6 cable
  • Transmitter's local port shows you the 4K image being displayed at the other end
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • 1-year limited warranty
Limited Warranty 1 Year
Twisted Pair Cable Standard Category 6
Media Type Supported Twisted Pair
Graphics Modes 4K UHD
Maximum Video Resolution 3840 x 2160
Connectivity Technology Wired
Maximum Operating Distance 230 ft (70104 mm)
Number of Output Devices Supported 3
Number of Input Devices Supported 2
Form Factor Rack-mountable
Wall Mountable
Transmitter Height 4.53" (115 mm)
Transmitter Width 2.46" (62.50 mm)
Transmitter Depth 1.06" (26.90 mm)
Receiver Height 4.53" (115 mm)
Receiver Width 2.46" (62.50 mm)
Receiver Depth 1.06" (26.90 mm)
Transmitter Weight (Approximate) 453 g
Receiver Weight (Approximate) 453 g
Package Contents
  • 1 x Transmitter
  • 1 x Transceiver
  • External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
  • 4 x International plug adapters (North America, Europe, U.K. and Australia)
  • IR-In cable
  • IR-Out cable
  • Mounting Hardware
  • Owner's Manual
Environmentally Friendly Yes
Environmental Certification RoHS
REACH
TAA Compliant Yes
Product Type Video Extender Transmitter/Receiver
Manufacturer Part Number B127A-111-BHTH
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Name Video Extender Transmitter/Receiver
Brand Name Tripp Lite
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Number of HDMI Inputs 1
Number of HDMI Outputs 1
HDMI In Yes
HDMI Out Yes
