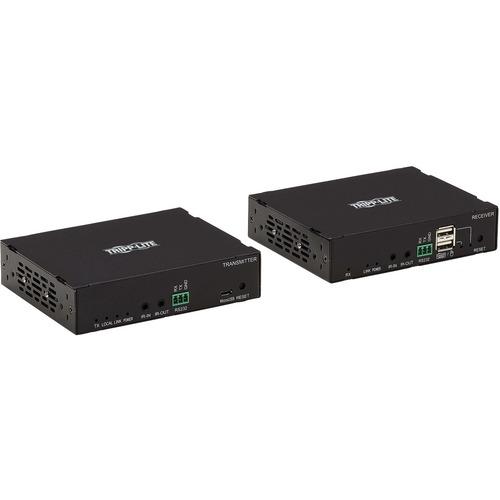

Tripp Lite B127E-1A1-HH Video Extender Transmitter/Receiver - 2 Input Device - 1 Output Device - 328 ft (99974.40 mm) Range - 2 x Network (RJ-45) - 3 x USB - 1 x HDMI In - 2 x HDMI Out - 4K - 3840 x 2160 - Twisted Pair - Category 6 - Rack-mountable, Pole

Tripp LiteSKU: PL5-B127E-1A1-HH-431LLX-0037332239136-EN
filler

Price:
Sale price$819.99
 More payment options

Description

Tripp Lite B127E-1A1-HH Video Extender Transmitter/Receiver - 2 Input Device - 1 Output Device - 328 ft (99974.40 mm) Range - 2 x Network (RJ-45) - 3 x USB - 1 x HDMI In - 2 x HDMI Out - 4K - 3840 x 2160 - Twisted Pair - Category 6 - Rack-mountable, Pole-mountable, Wall Mountable

Features
HDMI Extender Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths
This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127E-1A1-HH extends 4K video and stereo audio signals from an HDMI source device to an HDMI display up to 328 feet (100 meters) away via user-supplied Cat6 cabling.

Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color
The B127-1A1-HH supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full, rich 7.1-channel digital audio. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Monitor your extended content locally by connecting an HDMI TV or display to the transmitter's local HDMI port. In addition, the B127E-1A1-HH supports multi-resolution giving you the flexibility of connecting a 1080p or 4K 30Hz local display without affecting the extended 4K 60Hz signal. While the receiver features built-in equalization, which automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed.

Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
Built-in Power over Cable (PoC) technology powers the low-profile receiver over Cat6 cable. Green and orange LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver away from an AC outlet.

Start, Stop, Fast Forward, Pause, Rewind Video from More Than 300 ft. Away
Use the included bi-directional IR cables or the included RS-232 adapters to control video and audio from the HDMI display's location. You can also connect a keyboard and mouse to the receiver's USB port to operate the video source device from up to 328 feet away from the transmitter.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with user-supplied HDMI cables (such as Tripp Lite's P568- or P569-Series). Then, connect the two units using Cat6 patch cable (such as Tripp Lite N202-Series cable). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the receiver up to 328 feet away.
Plug-and-Play Operation for Quick Setup and Immediate Use The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with user-supplied HDMI cables (such as Tripp Lite's P568- or P569-Series). Then, connect the two units using Cat6 patch cable (such as Tripp Lite N202-Series cable). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the receiver up to 328 feet away.
Features
  • Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
  • Power over Cable (PoC) technology provides power to the receiver via Cat6 cable
  • Transmitter's local HDMI port feature multi-resolution support and allows you to see the Ultra HD image being displayed 328 ft away.
  • Compatible with latest HDMI standards, including 4:4:4 subsampling
  • USB, IR and RS-232 ports let you control the source device
Limited Warranty 1 Year
Twisted Pair Cable Standard Category 6
Media Type Supported Twisted Pair
Graphics Modes 4K
Maximum Video Resolution 3840 x 2160
Connectivity Technology Wired
Maximum Operating Distance 328 ft (99974.40 mm)
Number of Output Devices Supported 1
Number of Input Devices Supported 2
Color Black
Form Factor Wall Mountable
Pole-mountable
Rack-mountable
Transmitter Height 5.04" (128.02 mm)
Transmitter Width 3.94" (100.08 mm)
Transmitter Depth 1.17" (29.72 mm)
Receiver Height 5.04" (128.02 mm)
Receiver Width 3.94" (100.08 mm)
Receiver Depth 1.17" (29.72 mm)
Transmitter Weight (Approximate) 349.3 g
Receiver Weight (Approximate) 349.3 g
Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • IR-OUT cable
  • IR-IN cable
  • 2 x RS-232 Adapters
  • External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
  • 4 x International Plug Adapters (North America, Europe, U.K., Australia)
  • Mounting Hardware
  • Owner's Manual
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
REACH
Product Type Video Extender Transmitter/Receiver
Manufacturer Part Number B127E-1A1-HH
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model B127E-1A1-HH
Product Name B127E-1A1-HH Video Extender Transmitter/Receiver
Brand Name Tripp Lite
USB Yes
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Number of USB Ports 3
Number of HDMI Inputs 1
Number of HDMI Outputs 2
HDMI In Yes
HDMI Out Yes
