Tripp Lite B140-101X-U video Console/Extender - 1 Input Device - 1 Output Device - 125 ft (38100 mm) Range - 2 x Network (RJ-45) - 2 x USB - 1 x DVI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant

Tripp LiteSKU: PL5-B150-1A1-DVI-6658CH-0037332191311-EN
filler

Price:
Sale price$216.99

Description

Tripp Lite B140-101X-U video Console/Extender - 1 Input Device - 1 Output Device - 125 ft (38100 mm) Range - 2 x Network (RJ-45) - 2 x USB - 1 x DVI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant

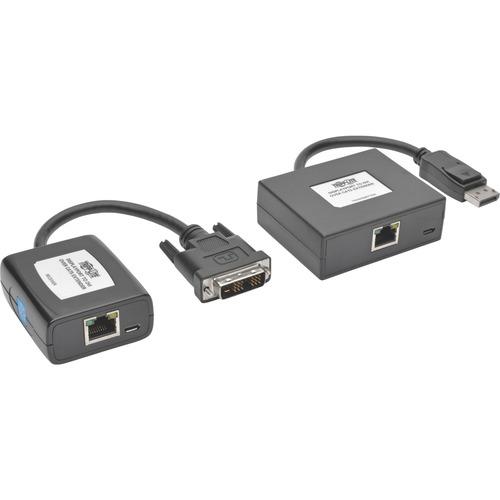

The B150-1A1-DVI DisplayPort to DVI over Cat5/6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to convert a DisplayPort audio/video signal to DVI and then extend it to a projector, monitor or television up to 125 feet away. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than convention cables allow.

One Cat5e/6 cable connects the transmitter and receiver (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). A built-in DisplayPort plug connects the transmitter to the source, while a built-in DVI-D single-link plug connects the receiver to the display. Included USB Micro-B cables supply power to the units via USB ports on the source and display or USB wall chargers. No external power supplies are needed.

The B150-1A1-DVI can extend a high-definition 1920 x 1080 (60 Hz) signal up to 125 feet. In addition to crystal-clear video, including 24-bit True Color (8 bits per channel), the kit delivers full, rich stereo. LEDs on the RJ45 ports indicate when the units are receiving power and a DVI signal from the source. Built-in equalization control lets you fine-tune the image on the DVI display. Easy to set up with no software or drivers to install. Compatible with all operating systems. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

Converts DisplayPort Signal to DVI, Extends It Up to 125 Ft.

  • Ideal for digital signs, trade shows, presentations, classrooms, churches and retail settings
  • Extends a high-definition 1920 x 1080 (60 Hz) signal up to 125 ft.
  • Transmitter and receiver connect with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)
  • Supports 24-bit True Color (8 bits per channel) and stereo audio
  • Built-in equalization control lets you adjust the image on the display

Easy to Set Up and Use

  • Plug-and-play engineering-no software or drivers to download and install
  • Works with all operating systems
  • Built-in cables connect transmitter to DisplayPort source and receiver to DVI-D display
  • Included USB Micro-B cables provide power to the units
  • LEDs indicate when the units are receiving power and sharing a signal

TAA Compliant

  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

  • Computer with DisplayPort output port*
  • Display with DVI-D input port
Features
  • Supports high-definition video resolutions up to 1920 x 1080 (60 Hz)
  • Supports 24-bit True Color (8 bits per channel) and stereo audio
  • Included USB Micro-B cables supply power to both units
  • Works with all operating systems
  • Plug and play-no software or drivers to install
Color Black
Limited Warranty 1 Year
Twisted Pair Cable Standard Category 6
Media Type Supported Twisted Pair
Graphics Modes Full HD
Maximum Video Resolution 1920 x 1080
Connectivity Technology Wired
Maximum Operating Distance 125 ft (38100 mm)
Number of Output Devices Supported 1
Number of Input Devices Supported 1
Package Contents
  • Transmitter Unit
  • Receiver Unit
  • Screwdriver for Adjusting Equalization
  • 2 x USB Micro-B cables, 3 ft.
  • Owner's Manual
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
USB Yes
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Number of USB Ports 2
Number of DVI Outputs 1
DVI Out Yes
Product Type Video Extender Transmitter/Receiver
Manufacturer Part Number B150-1A1-DVI
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model B150-1A1-DVI
Product Name B140-101X-U video Console/Extender
Brand Name Tripp Lite
