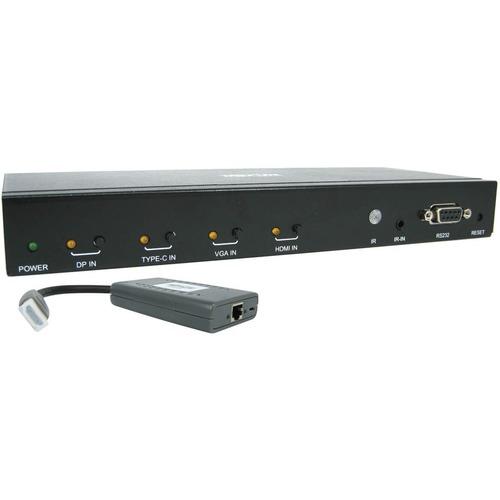

Tripp Lite B320-4X1-MHB-K 4-Port over Cat6 Presentation Switch/Extender Kit - 4 Input Device - 1 Output Device - 50 ft (15240 mm) Range - 2 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - DisplayPort - 4K - 3840 x 2160 - Twisted P

Save 23%
Tripp LiteSKU: PL5-B320-4X1-MHB-K-295VVH-0037332255167-EN
filler

Price:
Sale price$843.99 Regular price$1,091.74

Description

Tripp Lite B320-4X1-MHB-K 4-Port over Cat6 Presentation Switch/Extender Kit - 4 Input Device - 1 Output Device - 50 ft (15240 mm) Range - 2 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - DisplayPort - 4K - 3840 x 2160 - Twisted Pair - Category 6 - TAA Compliant

4-Port Multi-Format Presentation Switch Connects 4 Video Sources to One HDMI Display

This presentation switch connects four separate source devices to your 4K television, projector or monitor's HDMI input and switches between them. It then transmits the audio/video signals through Cat6 cable to the included receiver located up to 50 feet away. HDMI, DisplayPort, USB-C and VGA + Audio inputs connect Windows laptops, cable boxes, media servers, Blu-ray players, game consoles and other sources. Switch from one source to another using the manual push buttons, RS-232 commands or the included remote control.

Suitable for a Wide Range of Audio/Video Applications for Work or Play

This kit is recommended anywhere a variety of video signals is transmitted to a hi-def display. It is suitable for home theaters, video and multimedia presentations, or digital signage applications in classrooms, bars, restaurants, conference rooms, lecture halls, exhibition centers and trade shows.

Transmits Crystal-Clear 4K Video with HDR, 4:4:4 Color and 7.1-Channel Audio

The HDMI, DisplayPort and USB-C ports support UHD 4K resolutions up to 3840 x 2160 at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Full, rich, uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital surround sound ensure your ears receive the same treat as your eyes. The VGA port supports HD video up to 1920 x 1080 (1080p) at 60 Hz.

Remote Receiver Works Up to 50 ft. Away

The presentation switch connects to the included passive remote receiver with a user-supplied Cat6 cable (sold separately). The pigtail-style receiver extends 4K video and digital audio signals to an HDMI display up to 50 feet away from the switch.

Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks

Power over Cable (PoC) technology powers the remote receiver over Cat6 cable. Green and orange LEDs will light up to indicate the system is receiving sufficient power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver away from an AC outlet.

PD 3.0 Charging Port Charges the USB-C Source to Avoid Battery Drain and Signal Loss

The USB-C Power Delivery port provides up to 20V 5A (100W), of which 90W is used to charge and power the connected USB-C device, such as a MacBook Pro or Windows laptop. Connect the device's power supply or power adapter between the USB-C PD 3.0 port and an available AC outlet to prevent the source from running out of power prematurely.

Plug-and-Play Operation for Quick Setup and Immediate Use

The switch works right out of the box with no software required. Mounting hardware is included for installing the switch on a wall, pole or 19-inch rack. Connect your devices to the switch's ports with user-supplied cables (sold separately), and plug the switch's external power supply into an AC power source.

TAA-Compliant for GSA Schedule Purchases

The B320-4X1-MHB-K is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Features
  • HDMI, DisplayPort and USB-C ports support UHD 4K resolutions @ 60 Hz (4:4:4) over Cat6
  • Push buttons, IR remote or RS-232 commands allow quick switching between sources
  • USB-C PD 3.0 port charges source device to avoid battery drain and untimely shutdowns
  • Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • 1-year limited warranty
Limited Warranty 1 Year
Twisted Pair Cable Standard Category 6
Media Type Supported Twisted Pair
Graphics Modes 4K
Maximum Video Resolution 3840 x 2160
Connectivity Technology Wired
Maximum Operating Distance 50 ft (15240 mm)
Number of Output Devices Supported 1
Number of Input Devices Supported 4
Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • IR Remote Control
  • IR Receiver Cable, 5 ft.
  • External Power Supply with 4.5 ft. cord (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
  • 4 x International plug adapters (North America, U.K., Europe, Australia)
  • Mounting hardware
  • Owner's Manual
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
REACH
TAA Compliant Yes
Product Type Video Extender Transmitter/Receiver
Manufacturer Part Number B320-4X1-MHB-K
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model B320-4X1-MHB-K
Product Name B320-4X1-MHB-K 4-Port over Cat6 Presentation Switch/Extender Kit
Brand Name Tripp Lite
Color Black
Transmitter Height 9.25" (234.95 mm)
Transmitter Width 3.94" (100.08 mm)
Transmitter Depth 1.17" (29.72 mm)
Receiver Height 3.74" (95 mm)
Receiver Width 2.36" (59.94 mm)
Receiver Depth 0.73" (18.54 mm)
Transmitter Weight (Approximate) 648.6 g
Receiver Weight (Approximate) 77.1 g
USB Yes
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Number of USB Ports 2
DisplayPort Yes
Number of HDMI Inputs 1
Number of HDMI Outputs 1
VGA In Yes
HDMI In Yes
HDMI Out Yes
Number of VGA Inputs 1
