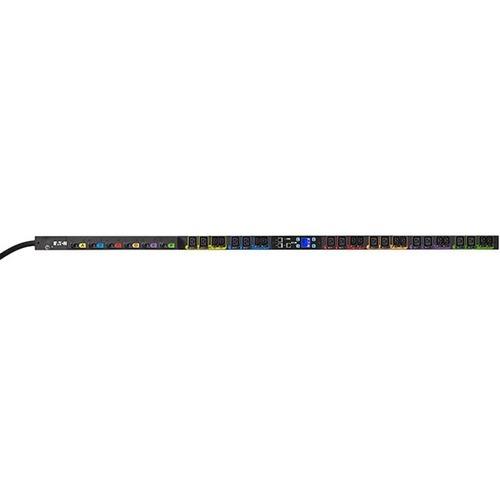

Eaton ePDU G3 Managed 38U-C IN: CS8365 35A 3P OUT: 18xC13:6xC19 - Switched - CS8365 - 18 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 12.48 kW - Network (RJ-45) - 38U - Vertical

EatonSKU: PL5-EMA328-10-70958X-EN
filler

Price:
Sale price$3,982.99

Description

Eaton ePDU G3 Managed 38U-C IN: CS8365 35A 3P OUT: 18xC13:6xC19 - Switched - CS8365 - 18 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 12.48 kW - Network (RJ-45) - 38U - Vertical

Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on, off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • IEC outlet grip plug retention secures plugs in place using standard cables
Features
  • Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
  • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
  • Single-phase and three-phase configurations provide solutions for SMB and networking closets, blade server applications, and colocation and large data centers
  • Manages entire environment remotely over the network from a single interface
  • ePDU G3 Managed provides ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter, IEC grip outlets, color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified
Certifications & Standards
    • cUL
    • TAA
Network (RJ-45) Yes
Serial Port Yes
Circuit Breaker Yes
Input Voltage 230 V AC
Output Voltage 230 V AC
Input Current 35 A
Power Rating (Watt) 12.48 kW
Product Type PDU
Manufacturer Part Number EMA328-10
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Manufacturer Eaton Corporation
Product Model EMA328-10
Product Name ePDU Managed EMA324-10 24-Outlets PDU
Product Line ePDU
Product Series Managed
Brand Name Eaton
Color Black
Rack Height 38U
Cord Length 10 ft
Height 66.50" (1689.10 mm)
Width 2.05" (52.07 mm)
Depth 2.56" (65.02 mm)
Mounting Orientation Vertical
Plug/Connector Type CS8365
Receptacle Type IEC 60320 C19
IEC 60320 C13
PDU Type Switched
Receptacle Detail 18 x IEC 60320 C13
6 x IEC 60320 C19
Plug/Connector Detail 1 x CS8365
