Description

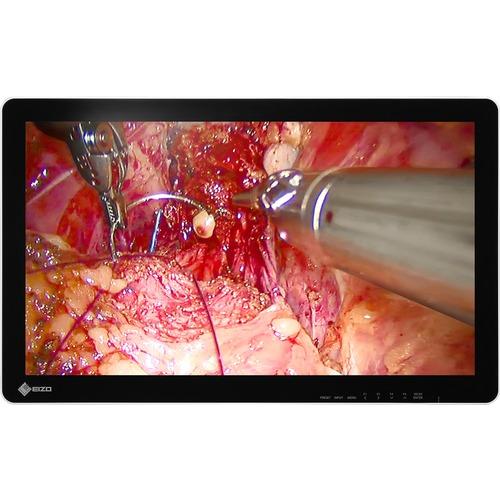

EIZO CuratOR EX2620-3D 26" Full HD LED LCD Monitor - 16:9 - Black, White - 1920 x 1080 - 1.07 Billion Colors - 580 cd/m² Typical - 18 ms - DVI - VGA
3D Surgical Display with High Visibility
This monitor uses a 3D LCD panel with an LED backlight, a brightness of 580 cd/m² and a contrast ratio of 1400:1. It displays in full HD resolution, and faithfully reproduces 3D surgical images for endoscopy and operation microscope feeds; creating a feeling of depth where stereoscopic imagery is required.
Comfortably View from Any Angle
It has a viewing angle of 178 degrees so images can be viewed from various directions with minimal changes in contrast.
Fully Flat Design
Operating rooms contain various medical devices that are arranged by the type of surgery being undertaken. In consideration of safety, EIZO's surgical monitors adopt rounded corners. The front is covered with a fully flat protective glass that is dustproof and waterproof (Monitor front: IP45, overall: IP32).
Cable Cover for Safety and Hygiene
As it is fanless, there is no fan vent; making it easy to clean and disinfect. Cables can be neatly stored in the cable cover, improving safety and hygiene in the operating room.
Reduced Reflections
Reflections on the screen of LCD monitors are caused when external light hits the screen and reflects off of the glass and air layer at different refractive indices. Optical bonding technology minimizes the refractive index by bonding the LCD display with the external protective glass; removing the air pocket between, and reducing eye fatigue caused by screen reflections.
High Durability
The protective glass used has a hardnes of more than 9H, making it difficult to scratch.
Optical bonding improves the physical strength even more by injecting optoelastic resin into the air pocket between the LCD panel and external glass. Since there is no gap between the LCD panel and the external glass, damage to the LCD panel from dust and moisture can be prevented.
Condensation Prevention
When using a monitor in an environment where the temperature can fluctuate severely, condensation may appear in the air pocket between the LCD panel and protective glass. Using optical bonding, there is no air pocket, meaning that condensation does not form and visibility is not compromised.
Bright and Flicker-Free 3D Image
The CuratOR EX2620-3D uses a polarized system for displaying 3D images with excellent color characteristics and without flicker.
Lightweight, Anti-Fog 3D Glasses for Clear Vision
The supplied 3D polarizing glasses required to view images in 3D do not require batteries for operation and are lightweight. This makes them perfect for long surgeries where heavy, battery operated glasses may fail and become uncomfortable. Furthermore, the glasses have an anti-fog coating to prevent fog and maintain clear vision even when wearing a surgical mask.
Various 3D Signal Format Support
The monitor support Side by Side, Line by Line, Top/Bottom, and SIMUL 3D signal formats.
3D-mode: 180 Degree Rotation
Regardless of the orientation of the endoscopic camera, you can display the image in a direction that is easy to see.
3D-mode: Parallax Adjustment
With the parallax adjustment function, you can adjust 3D images both vertically and horizontally so that it displays a natural sense of depth.
2D-mode: Picture by Picture Support
Two separate signal sources can be viewed simultaneously on the one monitor screen side by side.
Operating Power Consumption | 95 W |
Limited Warranty | 2 Year |
DVI | Yes |
VGA | Yes |
Brightness | 580 cd/m² - Typical |
Color Supported | 1.07 Billion Colors |
Maximum Resolution | 1920 x 1080 |
Native Contrast Ratio | 1,400:1 |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | China RoHS |
WEEE | |
RoHS |
Product Type | LCD Monitor |
Manufacturer Part Number | EX2620-3D |
Manufacturer Website Address | http://www.eizo.com |
Manufacturer | EIZO |
Product Model | EX2620-3D |
Product Name | 3D Surgical Monitor CuratOR EX2620-3D |
Product Line | CuratOR |
Brand Name | EIZO |
Weight (Approximate) | 8.50 kg |
Color | Black |
White | |
Height | 15.59" (396 mm) |
Width | 25.31" (643 mm) |
Depth | 3.15" (80 mm) |
VESA Mount Compatible | Yes |
VESA Mount Standard | 100 x 100 |
Aspect Ratio | 16:9 |
Pixel Pitch | 11.81 mil (0.30 mm) |
Response Time | 18 ms |
Viewable Screen Size | 26" |
Screen Mode | Full HD |
Number of Screens | 1 |
Backlight Technology | LED |
3D Type | 3D |
Horizontal Frequency | 15 kHz to 80 kHz - Analog |
15 kHz to 75 kHz - Digital | |
Vertical Frequency | 24 Hz to 60 Hz - Digital |
24 Hz to 85 Hz - Analog |
