IOGEAR Video Console - 1 Input Device - 1 Output Device - 990 ft (301752 mm) Range - 1 x Network (RJ-45) - 1 x VGA Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 6

IogearSKU: PL5-GVE140RX-4909CE-0881317507785-EN
filler

Price:
Sale price$287.99

Description

IOGEAR Video Console - 1 Input Device - 1 Output Device - 990 ft (301752 mm) Range - 1 x Network (RJ-45) - 1 x VGA Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 6

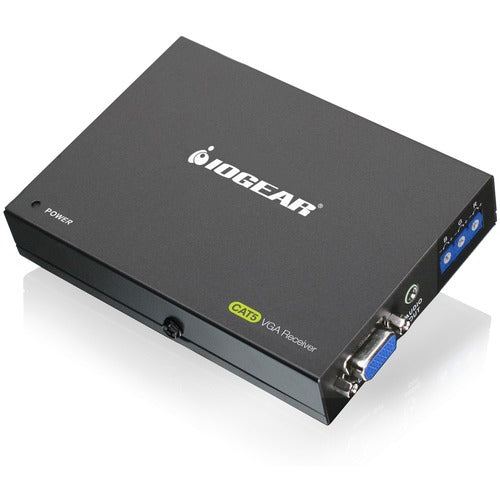

The GVE140RX is an audio video CAT5e/6 receiver for IOGEAR's GVS144TX / GVS148TX VGA CAT5e/6 Audio / Video Splitter. By utilizing CAT5e/6 its able to receive extended audio video broadcasts up to 990ft and connect to monitors or displays with powered speakers at greater distances.

Provides high resolution support at greater distances ranging from up to 1920 x 1200 @ 60Hz for 495ft (150m) and 1280 x1024 @ 60Hz for 990ft (300m). It also provides professional RGB deskew capability with adjustable video gain / compensation control to fine tune at greater distances.

Features
  • Works with 4 / 8-Port VGA CAT5e/6 Audio / Video Splitter (IOGEAR Part No: GVS144TX / GVS148TX)
  • Connects to the IOGEAR transmitter unit via a single CAT5e/6 cable
  • Maximum distance of 990ft (300m) away from the transmitter unit
  • High resolution support
  • 1920 x 1200 @ 60 Hz for 495ft (150m)
  • 1280 x 1024 @ 60Hz for 990ft (300m)
  • Audio supported (Mono)
  • Adjustable Video Gain / Compensation control
  • Professional RGB deskew function control for adjusting color phase and timing errors of RGB signals to provide crystal clear video experience
  • Built-in 8KV / 15KV ESD protection
Limited Warranty 3 Year
Twisted Pair Cable Standard Category 6
Media Type Supported Twisted Pair
Graphics Modes WUXGA
Maximum Video Resolution 1920 x 1200
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Number of VGA Outputs 1
VGA Out Yes
Product Type Video Extender Receiver
Manufacturer Part Number GVE140RX
Manufacturer Website Address http://www.iogear.com
Manufacturer IOGEAR, Inc
Product Model GVE140RX
Product Name Video Console
Brand Name IOGEAR
Package Contents
  • Video Console
  • 1 x Power Adapter
  • 1 x Rack Mount Kit
  • 1 x Grounding Wire
  • 1 x Quick Start Guide
  • 1 x Warranty Card
Environmentally Friendly Yes
Environmental Certification RoHS
WEEE
Connectivity Technology Wired
Maximum Operating Distance 990 ft (301752 mm)
Number of Output Devices Supported 1
Number of Input Devices Supported 1
Material Metal
Receiver Height 1" (25.40 mm)
Receiver Width 4.75" (120.65 mm)
Receiver Depth 3.25" (82.55 mm)
Receiver Weight (Approximate) 226.8 g
