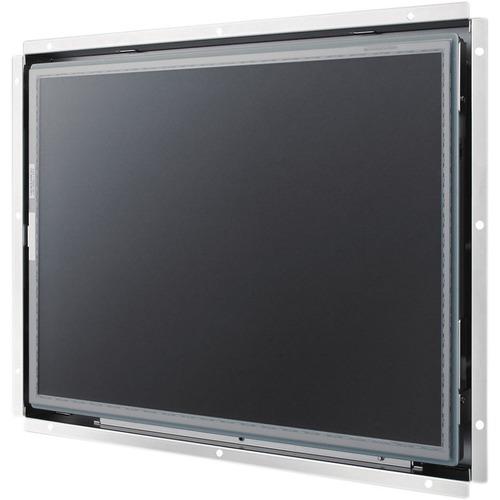

Advantech IDS-3115P-K2XGA1E 15" Open-frame LCD Touchscreen Monitor - 4:3 - 25 ms - 15" (381 mm) Class - Projected CapacitiveMulti-touch Screen - 1024 x 768 - XGA - 16.2 Million Colors - 1200 cd/m‚² - LED Backlight - DVI - USB - VGA - RoHS - 2 Year
Advantech IDS-3115P-K2XGA1E 15" Open-frame LCD Touchscreen Monitor - 4:3 - 25 ms - 15" (381 mm) Class - Projected CapacitiveMulti-touch Screen - 1024 x 768 - XGA - 16.2 Million Colors - 1200 cd/m‚² - LED Backlight - DVI - USB - VGA - RoHS - 2 Year
Advantech IDS-3115P-K2XGA1E 15" Open-frame LCD Touchscreen Monitor - 4:3 - 25 ms - 15" (381 mm) Class - Projected CapacitiveMulti-touch Screen - 1024 x 768 - XGA - 16.2 Million Colors - 1200 cd/m² - LED Backlight - DVI - USB - VGA - RoHS - 2 Year
IntroductionThe Advantech IDS-3115 Embedded Open Frame Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series supports rear and VESA mounting. The integrated brackets bring the benefits of easy installation and provide flexibility for different applications.
- 15" 1024 x 768 XGA LCD panel with LED backlight for 20% power saving and environmental protection
- -20~ 60° C operating temperature support
- 5-wires resistive and projected capacitive touchscreen solution
- Combo touch interface of RS-232 and USB
- Dual signal interface with VGA and DVI
- Integrated bracket for easy installation
- Versatile mounting methods for Rear mounting and VESA mounting
- Anti-Reflective surface treatment for sunlight readable enhancement (optional)
- Ultra high brightness solution of 1200 nits for outdoor application (optional)
| Operating Power Consumption | 60 W |
| Limited Warranty | 2 Year |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| USB | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Aspect Ratio | 4:3 |
| Response Time | 25 ms |
| Viewable Screen Size | 15" |
| Screen Mode | XGA |
| Backlight Technology | LED |
| Screen Size Class | 15" (381 mm) |
| Brightness | 1200 cd/m² |
| Color Supported | 16.2 Million Colors |
| Maximum Resolution | 1024 x 768 |
| Native Contrast Ratio | 700:1 |
| Weight (Approximate) | 4.50 kg |
| Height | 11.34" (288 mm) |
| Width | 14.25" (362 mm) |
| Depth | 1.43" (36.20 mm) |
| VESA Mount Compatible | Yes |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Manufacturer Part Number | IDS-3115P-K2XGA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3115P-K2XGA1E |
| Product Name | 15" XGA Industrial Open Frame Monitor |
| Product Series | IDS-3115 |
| Brand Name | Advantech |
