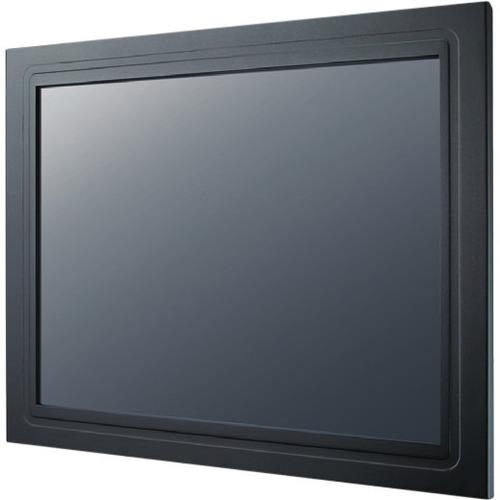

Advantech IDS-3217EG-25SXA1E 17" LCD Touchscreen Monitor - 5 ms - 17" (431.80 mm) Class - 5-wire Resistive - 1280 x 1024 - SXGA - 16.2 Million Colors - 250 cd/m² - LED Backlight - DVI - USB - VGA - RoHS - 2 Year
Advantech IDS-3217EG-25SXA1E 17" LCD Touchscreen Monitor - 5 ms - 17" (431.80 mm) Class - 5-wire Resistive - 1280 x 1024 - SXGA - 16.2 Million Colors - 250 cd/m² - LED Backlight - DVI - USB - VGA - RoHS - 2 Year
Advantech IDS-3217EG-25SXA1E 17" LCD Touchscreen Monitor - 5 ms - 17" (431.80 mm) Class - 5-wire Resistive - 1280 x 1024 - SXGA - 16.2 Million Colors - 250 cd/m² - LED Backlight - DVI - USB - VGA - RoHS - 2 Year
The Advantech IDS-3217 Embedded Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation and provide flexibility for different applications.- 17" SXGA LCD panel with LED backlight for 20% power saving and environmental protection
- -20 ~ +60° C wide range operating temperature
- 5-wire resistive touchscreen solution or 3mm tempered smudge resistant protected glass
- Combo touch interface: RS-232 and USB
- Dual signal interface with VGA & DVI (on selected models)
- Standard integrated frame
- Versatile mounting methods for front mounting and VESA mounting
- Anti-Reflective treatment (optional)
- Ultra high brightness solution of 1200 cd/m2 for outdoor applications (optional)
| Operating Power Consumption | 60 W |
| Touchscreen Type | 5-wire Resistive |
| Limited Warranty | 2 Year |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| USB | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | IDS-3217EG-25SXA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3217EG-25SXA1E |
| Product Name | 17" SXGA Industrial Panel Mount Monitor |
| Product Series | IDS-3217 |
| Brand Name | Advantech |
| Brightness | 250 cd/m² |
| Color Supported | 16.2 Million Colors |
| Maximum Resolution | 1280 x 1024 |
| Native Contrast Ratio | 1,000:1 |
| Weight (Approximate) | 4.50 kg |
| Height | 14.07" (357.50 mm) |
| Width | 16.73" (425 mm) |
| Depth | 1.54" (39 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Response Time | 5 ms |
| Mount Type | Panel Mount |
| Viewable Screen Size | 17" |
| Screen Mode | SXGA |
| Backlight Technology | LED |
| Screen Size Class | 17" (431.80 mm) |
