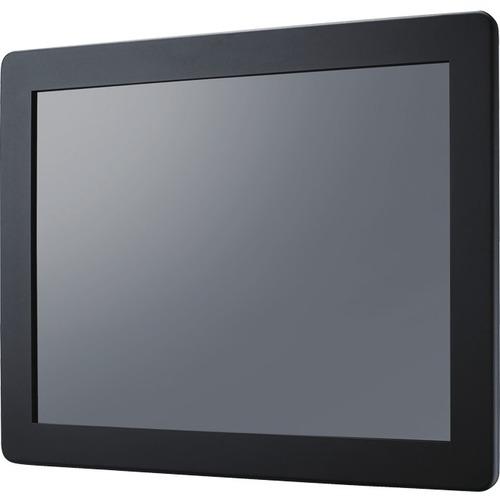

Advantech IDS-3315P-1KXGA1 15" LCD Touchscreen Monitor - 23 ms - 15" (381 mm) Class - Projected Capacitive - 1024 x 768 - XGA - 16.2 Million Colors - 1200 cd/m² - LED Backlight - DVI - HDMI - USB - VGA - RoHS
Advantech IDS-3315P-1KXGA1 15" LCD Touchscreen Monitor - 23 ms - 15" (381 mm) Class - Projected Capacitive - 1024 x 768 - XGA - 16.2 Million Colors - 1200 cd/m² - LED Backlight - DVI - HDMI - USB - VGA - RoHS
Advantech IDS-3315P-1KXGA1 15" LCD Touchscreen Monitor - 23 ms - 15" (381 mm) Class - Projected Capacitive - 1024 x 768 - XGA - 16.2 Million Colors - 1200 cd/m² - LED Backlight - DVI - HDMI - USB - VGA - RoHS
Introduction
The Advantech IDS-3315 Front IP65 Monitor Series offer waterproof and dustproof design supporting a 15" 1024 x 768 pixels TFT LCD screen, with -20 ~ 60? wide operating temperature, and optional touch touchscreens. The series supports rear and VESA mounting and is ideal for different embedded applications in different environments.
- Front IP65 for waterproof and dustproof
- 15" XGA LCD panel with LED backlight for 20% power saving and environmental protection
- -20 ~ +60 °C wide range operating temperature
- 5-wire resistive and P-cap touchscreen solution or tempered smudge resistant protected glass
- Multiple signal interfaces with HDMI, VGA & DVI
- Standard integrated frame
- Versatile mounting methods for rear mounting and VESA mounting
- Anti-Reflective treatment (optional)
- Ultra high brightness solution of 1200 cd/m2 for outdoor applications (optional)
| Touchscreen Type | Projected Capacitive |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Brightness | 1200 cd/m² |
| Color Supported | 16.2 Million Colors |
| Maximum Resolution | 1024 x 768 |
| Native Contrast Ratio | 2,000:1 |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | IDS-3315P-1KXGA1 |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3315P-1KXGA1 |
| Product Name | IDS-3315P-1KXGA1 LCD Touchscreen Monitor |
| Product Series | IDS-3315P |
| Brand Name | Advantech |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Weight (Approximate) | 4.50 kg |
| Height | 11.46" (291 mm) |
| Width | 14.37" (365 mm) |
| Depth | 1.81" (46 mm) |
| VESA Mount Compatible | Yes |
| Response Time | 23 ms |
| Mount Type | Rear Mount |
| Viewable Screen Size | 15" |
| Screen Mode | XGA |
| Backlight Technology | LED |
| Screen Size Class | 15" (381 mm) |
