Super Micro Supermicro X10SLA-F Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - ATX - 32 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Int

Super MicroSKU: PL5-MBD-X10SLA-F-B-215BBW-EN
filler

Price:
Sale price$284.99

Description

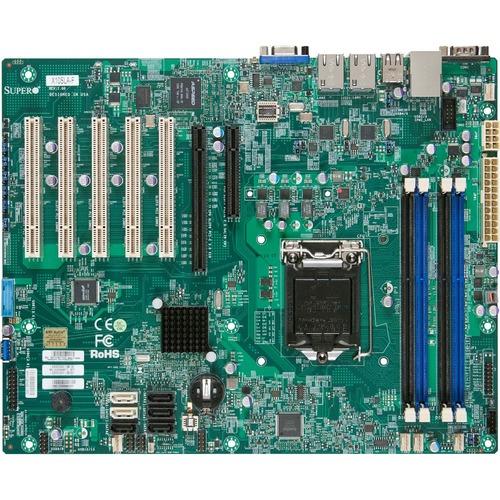

Supermicro X10SLA-F Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - ATX - 32 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling.
Gigabit Ethernet Yes
Form Factor ATX
Width 12.01" (305 mm)
Depth 9.61" (244 mm)
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2400
Onboard Video On-board Video Chipset
Package Contents
  • X10 Series X10SLA-F Server Motherboard
  • 1 x I/O Shield
Compatibility
    • CSE-732D4-903B
    • CSE-731i-300B
    • CSE-732D4-500B
    • CSE-732D4-865B
    • CSE-732i-500B
    • CSE-733TQ-500B
    • CSE-733TQ-665B
Certifications & Standards
    • ACPI 5.0
    • CE
    • FCC
Environmentally Friendly Yes
Environmental Certification RoHS-6
VGA Yes
Number of Network (RJ-45) Ports 3
Network (RJ-45) Yes
Serial Port Yes
Total Number of USB Ports 4
Number of USB 2.0 Ports 4
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 4
Number of Onboard USB 2.0 Ports 2
Number of Onboard USB 3.0 Ports 2
Onboard LEDs Header Yes
Onboard Serial Header Yes
Product Type Server Motherboard
Manufacturer Part Number MBD-X10SLA-F-B
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model X10SLA-F
Product Name X10 Series X10SLA-F Server Motherboard
Package Type Bulk
Product Series X10
Brand Name Supermicro
RAID Levels 5
1+0
1
0
Controller Type Serial ATA/600
Serial ATA/300
RAID Supported Yes
Number of PCI Slots 5
Number of Total Expansion Slots 7
Number of PCI Express x8 Slots 1
Number of PCI Express x16 Slots 1
PCI Express Standard PCI Express 3.0
PCI Express 2.0
Total Number of PCI Express Slots 2
Processor Supported Core i3
Celeron
Pentium
Xeon
Total Processor Supported 1
Processor Socket Socket H3 LGA-1150
64-bit Processing Yes
Chipset Manufacturer Intel
Maximum Memory Supported 32 GB
Memory Technology DDR3 SDRAM
Memory Standard DDR3-1600/PC3-12800
DDR3-1066/PC3-8500
DDR3-1333/PC3-10600
Number of Memory Slots 4
Memory Form Factor UDIMM
DIMM
Memory Speed Supported 1600 MHz
1066 MHz
1333 MHz
