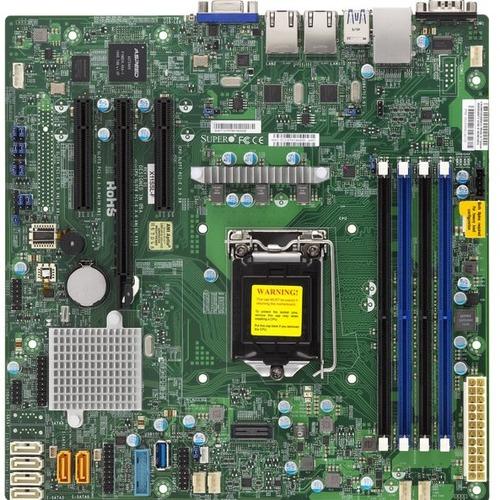

Super Micro Supermicro X11SSL-F Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - Micro ATX - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Super MicroSKU: PL5-MBD-X11SSL-F-O-83502Z-0672042200917-EN
filler

Price:
Sale price$277.99

Description

Supermicro X11SSL-F Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - Micro ATX - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151)

Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.

Compatibility
    Supermicro SuperChassis

    1U Chassis:
    • SC813MFTQC-505CB
    • SC813MFTQ-R400CB
    • SC813MTQ-350CB
    • SC512L-200B
    • SC512F-350B
    • SC811TQ-441B
    • SC113MFAC2-341CB
    • SC113MFAC2-R606CB
    • SC510-203B
    • SC813MFTQC-350CB
    2U Chassis:
    • SC213LT-600LPB
    • SC825TQ-R720LPB
    • SC823TQ-653LPB
    3U Chassis:
    • SC833T-653B
    Mid/Mini Tower Chassis:
    • SC732I-500B
    • SC731i-300B
    4U / Tower Chassis:
    • SC842TQ-665B
    • SC842i-500B
    Supermicro SuperServers
    • SYS-5039D-I
    • SYS-5019S-L
Gigabit Ethernet Yes
VGA Yes
Total Number of USB Ports 4
Number of USB 3.0 Ports 2
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 7
Number of Onboard USB 3.0 Ports 3
Form Factor Micro ATX
Width 9.60" (243.84 mm)
Depth 9.60" (243.84 mm)
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2400
Onboard Video On-board Video Chipset
Number of Total Expansion Slots 3
Number of PCI Express x8 Slots 2
Number of PCI Express x16 Slots 1
Total Number of PCI Express Slots 3
RAID Levels 1
0
5
10
Controller Type Serial ATA/600
RAID Supported Yes
Processor Supported Xeon
Core i3
Celeron
Pentium
Total Processor Supported 1
Processor Socket Socket H4 LGA-1151
Chipset Manufacturer Intel
Product Type Server Motherboard
Manufacturer Part Number MBD-X11SSL-F-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model X11SSL-F
Product Name X11SSL-F Server Motherboard
Package Type Retail
Brand Name Supermicro
Maximum Memory Supported 64 GB
Memory Technology DDR4 SDRAM
Number of Memory Slots 4
Memory Form Factor UDIMM
DIMM
Memory Speed Supported 2133 MHz
1600 MHz
1866 MHz
