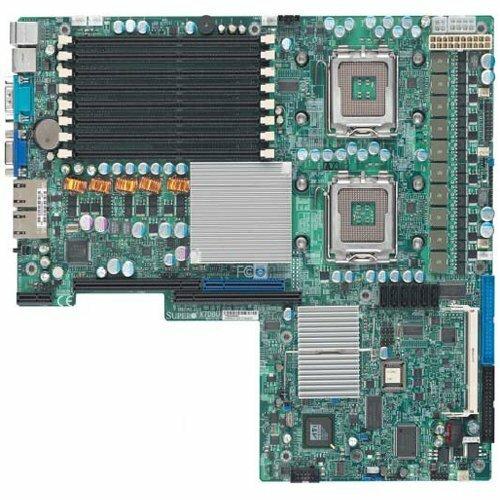

Super Micro Supermicro X7DBU Server Motherboard - Intel Chipset - Socket J LGA-771 - 32 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 8 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Super MicroSKU: PL5-MBD-X7DBU-O-83463Z-EN
filler

Price:
Sale price$517.99

Description

Supermicro X7DBU Server Motherboard - Intel Chipset - Socket J LGA-771 - 32 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 8 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Built upon the functionality and the capability of the 5000P chipset, the X7DBU Server Board provides the performance and feature set required for dual processor-based servers with configuration options optimized for communications, presentation, storage, computation or database applications.

Gigabit Ethernet Yes
Width 12" (304.80 mm)
Depth 13" (330.20 mm)
Additional Information

    Expansion Slots:

    • PCI-Express / PCI-X / UIO:
    • Left Side: 1 (x8) PCI-Express & 1 UIO slot
    • Right Side 1 64-bit 133MHz PCI-X or 1 (x8) PCI-Express
Environmentally Friendly Yes
Environmental Certification RoHS
Number of IDE Interfaces 1
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 2
Onboard LEDs Header Yes
Graphics Controller Manufacturer ATI
Graphics Controller Model ES1000
Graphics Controller Memory 16 MB
Onboard Video On-board Video Chipset
VGA Yes
Network (RJ-45) Yes
Serial Port Yes
Total Number of USB Ports 2
Number of USB 2.0 Ports 2
RAID Levels 0
1+0
5
1
Controller Type Serial ATA/300
Ultra ATA/100 (ATA-6)
Floppy Controller
RAID Supported Yes
Maximum Memory Supported 32 GB
Memory Technology DDR2 SDRAM
Memory Standard DDR2-533/PC2-4200
DDR2-667/PC2-5300
Number of Memory Slots 8
Memory Speed Supported 667 MHz
533 MHz
Product Type Server Motherboard
Manufacturer Part Number MBD-X7DBU-O
Manufacturer Website Address http://www.supermicro.com
Packaged Quantity 1
Manufacturer Supermicro Computer, Inc
Product Model X7DBU
Product Name X7DBU Server Motherboard
Package Type Retail
Brand Name Supermicro
Packing Box
Processor Supported Xeon Quad-core
Xeon Dual-Core
Total Processor Supported 2
Processor Socket Socket J LGA-771
Processor Technology Enhanced SpeedStep Technology
Front Side Bus 1066 MHz
1333 MHz
667 MHz
64-bit Processing Yes
Chipset Manufacturer Intel
