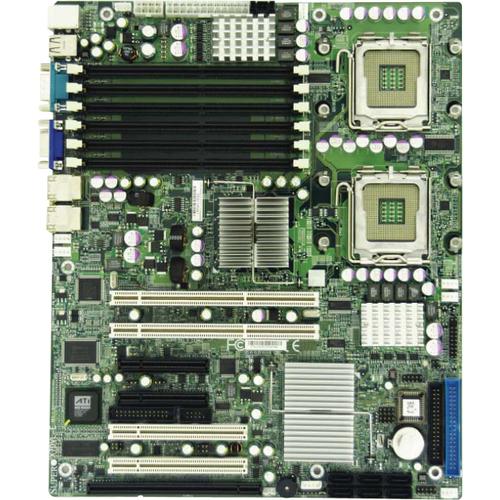

Super Micro Supermicro X7DVL-E Server Motherboard - Intel Chipset - Socket J LGA-771 - ATX - 16 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 6 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Super MicroSKU: PL5-MBD-X7DVL-E-O-83472Z-EN
filler

Price:
Sale price$437.99

Description

Supermicro X7DVL-E Server Motherboard - Intel Chipset - Socket J LGA-771 - ATX - 16 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 6 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

X7DVL-E Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Gigabit Ethernet Yes
Form Factor ATX
Width 12" (304.80 mm)
Depth 10" (254 mm)
Additional Information

    System BIOS:

    • BIOS Type:
    • 8Mb Flash EEPROM with Phoenix BIOS
    • BIOS Features:
    • Plug and Play (PnP)
    • SMBIOS 2.3
    • DMI 2.1
    • PCI 2.2
    • ACPI 1.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
Package Contents
  • X7DVL-E Server Board
  • 1 x Motherboard Manual
  • 1 x ATX Floppy Cable
  • 1 x ATA 66/100 IDE LP Cable
  • 6 x 2ft. Amphenol, SATA Cable
  • 1 x Version 1.01 CD or later
  • 1 x Motherboard I/O Shield
  • 1 x CPU Retention Module
Environmentally Friendly Yes
Environmental Certification RoHS
Number of IDE Interfaces 1
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 2
Onboard LEDs Header Yes
Graphics Controller Manufacturer ATI
Graphics Controller Model ES1000
Graphics Controller Memory 16 MB
Onboard Video On-board Video Chipset
VGA Yes
Network (RJ-45) Yes
Serial Port Yes
Total Number of USB Ports 2
Number of USB 2.0 Ports 2
Processor Supported Xeon Dual-Core
Xeon Quad-core
Total Processor Supported 2
Processor Socket Socket J LGA-771
Processor Technology Enhanced SpeedStep Technology
Front Side Bus 667 MHz
1066 MHz
1333 MHz
64-bit Processing Yes
Chipset Manufacturer Intel
Number of PCI Slots 2
Number of Total Expansion Slots 6
Number of PCI-X Slots 2
Number of PCI Express x4 Slots 1
Number of PCI Express x8 Slots 1
Total Number of PCI Express Slots 2
Maximum Memory Supported 16 GB
Memory Technology DDR2 SDRAM
Memory Standard DDR2-533/PC2-4200
DDR2-667/PC2-5300
Number of Memory Slots 6
Memory Speed Supported 667 MHz
533 MHz
Product Type Server Motherboard
Manufacturer Part Number MBD-X7DVL-E-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model X7DVL-E
Product Name X7DVL-E Server Motherboard
Package Type Retail
Brand Name Supermicro
RAID Levels 1+0
5
0
1
Controller Type Ultra ATA/100 (ATA-6)
Serial ATA/300
Floppy Controller
RAID Supported Yes
