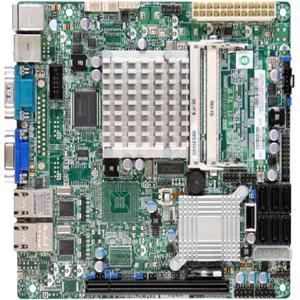

Super Micro Supermicro X7SPA-H Server Motherboard - Intel Chipset - Socket BGA-559 - Mini ITX - 4 GB DDR2 SDRAM Maximum RAM - DDR266/PC2100 - 2 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces
Super Micro Supermicro X7SPA-H Server Motherboard - Intel Chipset - Socket BGA-559 - Mini ITX - 4 GB DDR2 SDRAM Maximum RAM - DDR266/PC2100 - 2 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces
Supermicro X7SPA-H Server Motherboard - Intel Chipset - Socket BGA-559 - Mini ITX - 4 GB DDR2 SDRAM Maximum RAM - DDR266/PC2100 - 2 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces
The X7SPA-L comes integrated with the single-core Intel ATOM D410 (1.66GHz,11.6W) processor while the X7SPA-H/X7SPA-HF/X7SPE-H/X7SPE-HF features the Intel ATOM D510 (Dual Core, 1.66GHz, 14.6W) processor. With memory support for up to 4 GB of non-ECC, unbuffered 667 MHz DDR2 SO-DIMMs in 2 sockets, 6 SATA ports, on-board VGA, and up to 10 USB 2.0 ports, the X7SPA-L/X7SPA-H/X7SPA-HF/X7SPE-H/X7SPE-HF delivers cost-effective performance in a small form factor.
| Gigabit Ethernet | Yes |
| Number of Total Expansion Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Form Factor | Mini ITX |
| Width | 6.75" (171.45 mm) |
| Depth | 6.75" (171.45 mm) |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | GMA 3150 |
| Onboard Video | On-board Video Chipset |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 3 |
| Onboard LEDs Header | Yes |
| Onboard Audio Header | Yes |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 2.0 Ports | 2 |
| PS/2 Port | Yes |
| Number of PS/2 Ports | 2 |
| Maximum Memory Supported | 4 GB |
| Memory Technology | DDR2 SDRAM |
| Memory Standard | DDR266/PC2100 |
| Number of Memory Slots | 2 |
| Memory Speed Supported | 266 MHz |
| Processor Supported | Atom |
| Total Processor Supported | 1 |
| Processor Socket | Socket BGA-559 |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| RAID Levels | 0 |
| 1 | |
| 1+0 | |
| 5 | |
| Controller Type | Serial ATA/300 |
| RAID Supported | Yes |
| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-X7SPA-H-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X7SPA-H |
| Product Name | X7SPA-H Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
