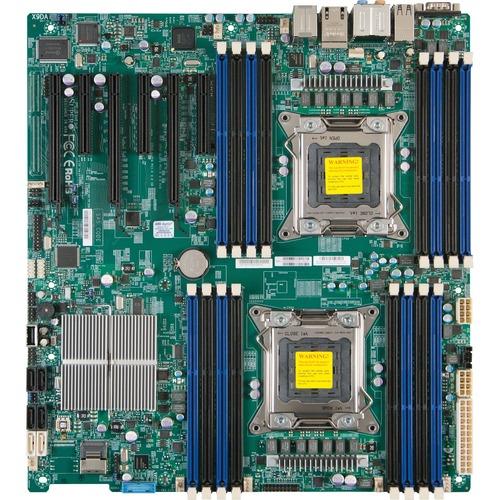

Super Micro Supermicro X9DAi Server Motherboard - Intel Chipset - Socket R LGA-2011 - Extended ATX - 512 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - 16 x Memory Slots - Gigabit Ethernet -

Super MicroSKU: PL5-MBD-X9DAI-O-83415Z-0672042093557-EN
filler

Price:
Sale price$677.99

Description

Supermicro X9DAi Server Motherboard - Intel Chipset - Socket R LGA-2011 - Extended ATX - 512 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - 16 x Memory Slots - Gigabit Ethernet - 10 x SATA Interfaces

Major Benefits from Supermicro's in-house Design Superiority

Supermicro motherboard advantages:

  • Technologically-advanced Motherboard Designs Since 1993
  • Consistent highest-quality Design, Components, and Production Expertise
  • Extensive Range of x86 Serverboards Available
  • Competitive Price/Performance
  • High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
  • Standard Form Factors offer Feature - rich Support and application optimization
  • These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.

    Gigabit Ethernet Yes
    Power Supply Supported EPS12V
    Limited Warranty 3 Year
    Sound Controller Manufacturer Realtek
    Sound Controller Model ALC889
    Audio Channels 7.1
    Form Factor Extended ATX
    Width 13" (330.20 mm)
    Depth 12" (304.80 mm)
    Package Contents
    • X9DAi Server Motherboard
    • 1 x Manual
    • 1 x Driver Disk
    • 2 x Sata Cable 61CM Flat
    • 1 x I/O Shield
    • 1 x Internal to External For 1394 Connector
    • 1 x 30AWG 50CM Ipass to 4 Sata
    Certifications & Standards
      • FCC
      • CE
    Environmentally Friendly Yes
    Environmental Certification RoHS-6
    Number of Total Expansion Slots 6
    Number of PCI Express x8 Slots 3
    Number of PCI Express x16 Slots 3
    PCI Express Standard PCI Express 3.0
    Total Number of PCI Express Slots 6
    Processor Supported Xeon Octa-core
    Total Processor Supported 2
    Processor Socket Socket R LGA-2011
    64-bit Processing Yes
    Chipset Manufacturer Intel
    QuickPath Interconnect 8 GT/s
    Maximum Memory Supported 512 GB
    Memory Technology DDR3 SDRAM
    Memory Standard DDR3-800/PC3-6400
    DDR3-1066/PC3-8500
    DDR3-1333/PC3-10600
    DDR3-1600/PC3-12800
    Number of Memory Slots 16
    Memory Form Factor RDIMM
    DIMM
    UDIMM
    Memory Speed Supported 1066 MHz
    800 MHz
    1333 MHz
    1600 MHz
    RAID Levels 5
    1+0
    1
    0
    Controller Type Serial ATA/300
    Serial ATA/600
    RAID Supported Yes
    Number of SATA Interfaces 10
    Total Number of Onboard USB Ports 5
    Number of Onboard USB 2.0 Ports 3
    Number of Onboard USB 3.0 Ports 2
    Total Number of Onboard FireWire/i.LINK Ports 2
    Number of Onboard FireWire/i.LINK 400 Ports 2
    Onboard LEDs Header Yes
    Product Type Server Motherboard
    Manufacturer Part Number MBD-X9DAI-O
    Manufacturer Website Address http://www.supermicro.com
    Packaged Quantity 1
    Manufacturer Supermicro Computer, Inc
    Product Model X9DAi
    Product Name X9DAi Server Motherboard
    Package Type Retail
    Brand Name Supermicro
    Number of Network (RJ-45) Ports 2
    Network (RJ-45) Yes
    Audio Line In Yes
    Audio Line Out Yes
    Serial Port Yes
    Microphone Port Yes
    Total Number of USB Ports 6
    Number of USB 2.0 Ports 4
    Number of USB 3.0 Ports 2
    PS/2 Port Yes
    Number of PS/2 Ports 1
