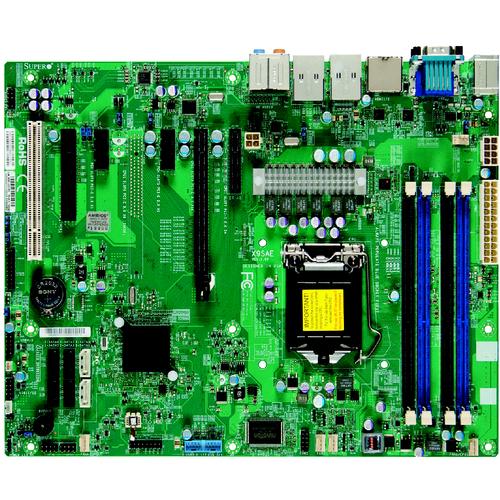

Super Micro Supermicro X9SAE-V Desktop Motherboard - Intel Chipset - Socket H2 LGA-1155 - ATX - 32 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600 - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - 6 x SATA Interfaces

Super MicroSKU: PL5-MBD-X9SAE-V-O-83550Z-0672042119455-EN
filler

Price:
Sale price$307.99

Description

Supermicro X9SAE-V Desktop Motherboard - Intel Chipset - Socket H2 LGA-1155 - ATX - 32 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600 - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - 6 x SATA Interfaces

Major Benefits from Supermicro's in-house Design Superiority

Supermicro motherboard advantages:

  • Technologically-advanced Motherboard Designs Since 1993
  • Consistent highest-quality Design, Components, and Production Expertise
  • Extensive Range of x86 Serverboards Available
  • Competitive Price/Performance
  • High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
  • Standard Form Factors offer Feature - rich Support and application optimization

These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.

Gigabit Ethernet Yes
Limited Warranty 3 Year
Sound Controller Manufacturer Realtek
Sound Controller Model ALC889
Audio Channels 7.1
Certifications & Standards
    • FCC
    • APM 1.2
    • ACPI 1.0 / 2.0 / 3.0 / 4.0
Environmentally Friendly Yes
Environmental Certification RoHS-6
Form Factor ATX
Width 12" (304.80 mm)
Depth 9.60" (243.84 mm)
Graphics Controller Manufacturer Intel
Graphics Memory Technology DDR3 SDRAM
Graphics Memory Accessibility Shared
Onboard Video CPU Dependent Video
RAID Levels 5
1+0
1
0
Controller Type Serial ATA/600
Serial ATA/300
RAID Supported Yes
Product Type Desktop Motherboard
Manufacturer Part Number MBD-X9SAE-V-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model X9SAE-V
Product Name X9SAE-V Desktop Motherboard
Package Type Retail
Brand Name Supermicro
S/PDIF Yes
HDMI Yes
VGA Yes
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Audio Line In Yes
Audio Line Out Yes
Serial Port Yes
Number of HDMI Outputs 2
Microphone Port Yes
Total Number of USB Ports 6
Number of USB 2.0 Ports 4
Number of USB 3.0 Ports 2
Number of S/PDIF Out Ports 1
PS/2 Port Yes
Number of PS/2 Ports 1
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 6
Number of Onboard USB 2.0 Ports 4
Number of Onboard USB 3.0 Ports 2
Onboard LEDs Header Yes
Onboard Audio Header Yes
Onboard S/PDIF Header Yes
Onboard Serial Header Yes
Number of PCI Slots 1
Number of PCI Express x1 Slots 2
Number of Total Expansion Slots 7
Number of PCI Express x4 Slots 1
Number of PCI Express x8 Slots 1
Number of PCI Express x16 Slots 2
PCI Express Standard PCI Express 3.0
PCI Express 2.0
Total Number of PCI Express Slots 6
Maximum Memory Supported 32 GB
Memory Technology DDR3 SDRAM
Memory Standard DDR3-1333/PC3-10600
DDR3-1600/PC3-12800
Number of Memory Slots 4
Memory Form Factor DIMM
UDIMM
Memory Speed Supported 1600 MHz
1333 MHz
Processor Supported Core i3
Core i5
Core i7
Xeon
Celeron
Pentium
Total Processor Supported 1
Processor Socket Socket H2 LGA-1155
Processor Technology vPro Technology
64-bit Processing Yes
Chipset Manufacturer Intel
