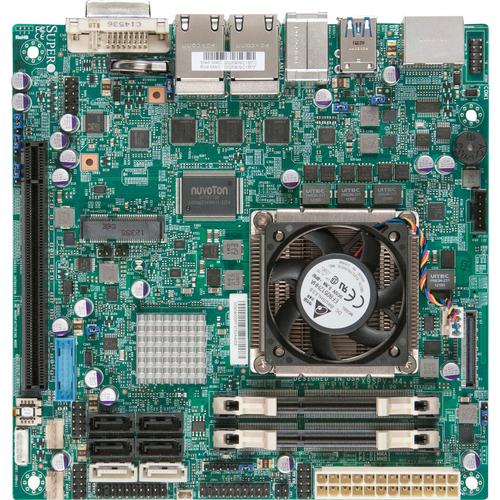

Super Micro Supermicro X9SPV-M4-3QE Server Motherboard - Intel Chipset - Socket BGA-1023 - Mini ITX - Intel Core i7 i7-3612QE - 16 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600 - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI

Super MicroSKU: PL5-MBD-X9SPV-M4-3QE-O-83579Z-EN
filler

Price:
Sale price$1,135.99

Description

Supermicro X9SPV-M4-3QE Server Motherboard - Intel Chipset - Socket BGA-1023 - Mini ITX - Intel Core i7 i7-3612QE - 16 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600 - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces

QM77 Express chipset / Socket FCBGA1023 Boards

Supermicro X9SPV-F and X9SPV-LN4F motherboards based on the Mobile Intel QM77 Express chipset support Intel's 3rd Generation Core i7/i5/i3 processors. The compact mini-ITX motherboards are ideal for high-performance, low-power embedded applications, with features that include support for 16GB DDR3 Memory, SATA 3 & SATA 2 HDD/SSD storage with RAID support, 4x Gigabit Ethernet LAN Ports, PCI-E 3.0 x16 slot for added Graphics, Networking or I/O expansion. Compared to the previous generation architecture, this solution delivers 15% more processing performance, up to 50% more 3D graphics performance supporting the latest graphic APIs - DX11, OpenCL 1.1 and OpenGL 3.1 and new features such as Intel® Smart Response Technology enabling increased storage I/O performance with SSD caching.
Gigabit Ethernet Yes
Sound Controller Manufacturer Realtek
Sound Controller Model ALC888S
Graphics Controller Manufacturer Intel
Onboard Video On-board Video Chipset
Form Factor Mini ITX
Width 6.75" (171.50 mm)
Depth 6.75" (171.50 mm)
Processor Socket Socket BGA-1023
64-bit Processing Yes
Chipset Manufacturer Intel
Compatibility
    1U Chassis
    • CSE-504-203B
    • CSE-505-203B
    Mini-ITX Chassis
    • CSE-101i
Certifications & Standards
    • ACPI 2.0
Environmentally Friendly Yes
Environmental Certification WEEE
Number of Total Expansion Slots 2
Number of PCI Express x16 Slots 1
Number of Mini PCI Express Slots 1
PCI Express Standard PCI Express 3.0
Total Number of PCI Express Slots 1
Integrated Processor Manufacturer Intel
Integrated Processor Type Core i7
Integrated Processor Model i7-3612QE
Integrated Processor Speed 2.10 GHz
Integrated Processor Cache 6 MB
Product Type Server Motherboard
Manufacturer Part Number MBD-X9SPV-M4-3QE-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model X9SPV-M4-3QE
Product Name X9SPV-M4-3QE Server Motherboard
Brand Name Supermicro
RAID Levels 0
5
1+0
1
Controller Type Serial ATA/300
RAID Supported Yes
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 8
Number of Onboard USB 2.0 Ports 6
Number of Onboard USB 3.0 Ports 2
Onboard LEDs Header Yes
Onboard Serial Header Yes
Maximum Memory Supported 16 GB
Memory Technology DDR3 SDRAM
Memory Standard DDR3-1600/PC3-12800
DDR3-1333/PC3-10600
Number of Memory Slots 2
Memory Form Factor SoDIMM
Memory Speed Supported 1333 MHz
1600 MHz
HDMI Yes
DVI Yes
Number of Network (RJ-45) Ports 4
Network (RJ-45) Yes
DisplayPort Yes
Number of DisplayPort Outputs 1
Number of DVI Outputs 1
Number of HDMI Outputs 1
Total Number of USB Ports 4
Number of USB 2.0 Ports 2
Number of USB 3.0 Ports 2
