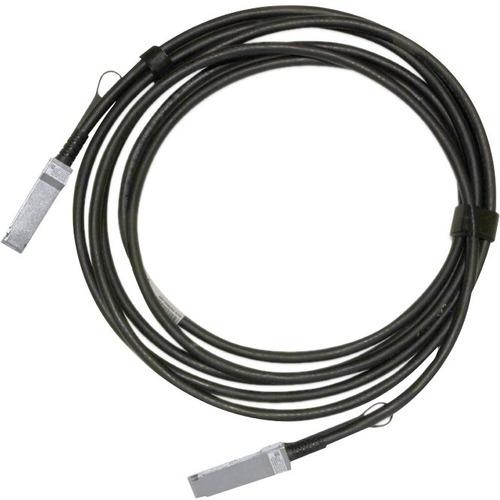

Mellanox Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 1m, Black, 30AWG, CA-N - 3.3 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 30 AWG - Black

MellanoxSKU: PL5-MCP1600-C001E30N-342EEA-7290108482638-EN
filler

Price:
Sale price$211.99

Description

Mellanox Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 1m, Black, 30AWG, CA-N - 3.3 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 30 AWG - Black

Mellanox® MCP1600-C0xxxxxx direct attach copper (DAC) passive cable assemblies are high speed, costeffective alternatives to fiber optics in 100Gb/s Ethernet applications.
Mellanox QSFP28 passive copper cable contains four high-speed copper pairs, each operating at data rates of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system.
Mellanox's unique quality, passive, copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
MCP1600 cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability
Features
  • Up to 100GbE data rate
  • SFF-8665 compliant QSFP28
  • Operating case temperature 0-70°C
  • Single 3.3V supply voltage
  • Bit Error Rate (BER) better than 1E-15 with Mellanox systems
  • Hot pluggable
  • RoHS compliant
  • LSZH (Low Smoke Zero Halogen) jacket
  • LF (Lead Free) HF (Halogen Free) PCB
Limited Warranty 1 Year
Environmentally Friendly Yes
Environmental Certification RoHS
Cable Length 3.3 ft
Data Transfer Rate 100 Gbit/s
Device Supported Network Device
Features Passive
Halogen Free
Lead-free
Connector on First End 1 x QSFP28 Network
Connector on Second End 1 x QSFP28 Network
Cable Type QSFP28
American Wire Gauge 30 AWG
Material Copper
Low Smoke Zero Halogen - Jacket
Color Black
Product Type Network Cable
Manufacturer Part Number MCP1600-C001E30N
Manufacturer Website Address http://www.mellanox.com
Manufacturer Mellanox Technologies Ltd
Product Name Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 1m, Black, 30AWG, CA-N
Product Line LinkX
Brand Name Mellanox
