Mellanox 200Gb/s HDR QSFP56 Active Optical Cable - 32.8 ft Fiber Optic Network Cable for Network Device - First End: 1 x QSFP56 Male Network - Second End: 1 x QSFP56 Male Network - 200 Gbit/s - Black
Mellanox 200Gb/s HDR QSFP56 Active Optical Cable - 32.8 ft Fiber Optic Network Cable for Network Device - First End: 1 x QSFP56 Male Network - Second End: 1 x QSFP56 Male Network - 200 Gbit/s - Black
Mellanox 200Gb/s HDR QSFP56 Active Optical Cable - 32.8 ft Fiber Optic Network Cable for Network Device - First End: 1 x QSFP56 Male Network - Second End: 1 x QSFP56 Male Network - 200 Gbit/s - Black

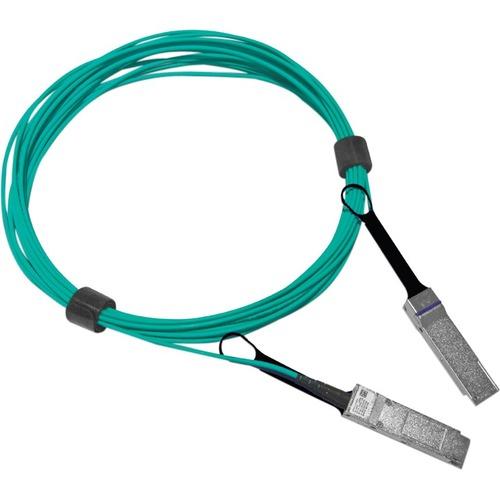

Mellanox ® MFS1S00-HxxxE is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) activeoptical cable (AOC) designed for use in 200Gb/s InfiniBand HDR systems. The MFS1S00 AOC offers highport density and configurability, and a much longer reach than passive copper cables in the data centers.Since the AOC is hot pluggable, it is easy to install and replace.MFS1S00 has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end; each operating at data rates of up to 50Gb/s. MFS1S00 offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gbp/s rates.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability. Mellanox's unique quality active fiber cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers.
- Supports IBTA InfiniBand HDR
- Up to 200Gb/s data rate
- 4x 50Gb/s PAM4 modulation
- Programmable Rx output amplitude and pre-emphasis
- SFF-8665 compliant QSFP56 port
- Single 3.3V power supply
- 4.5W power dissipation (typ., each end, with retiming)
- BER better than 1E-15 with Mellanox systems
- Up to 100m length
- Hot pluggable
- RoHS compliant
- SFF-8636 compliant I C management interface
| Color | Black |
| Limited Warranty | 1 Year |
| Cable Length | 32.8 ft |
| Data Transfer Rate | 200 Gbit/s |
| Device Supported | Network Device |
| Features | Halogen Free |
| Active | |
| Connector on First End | 1 x QSFP56 Male Network |
| Connector on Second End | 1 x QSFP56 Male Network |
| Cable Type | Fiber Optic |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Product Type | Network Cable |
| Manufacturer Part Number | MFS1S00-H010E |
| Manufacturer Website Address | http://www.mellanox.com |
| Manufacturer | Mellanox Technologies Ltd |
| Product Name | 200Gb/s HDR QSFP56 Active Optical Cable |
| Product Line | LinkX |
| Brand Name | Mellanox |
