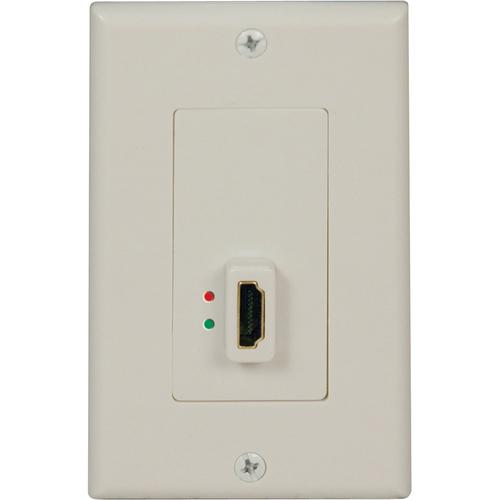

Tripp Lite HDMI Display-Side Wallplate with Active Signal Booster F/F - 2 x Socket(s) - HDMI Video - White

Tripp LiteSKU: PL5-P166-001-A-7356CH-0037332141033-EN
filler

Price:
Sale price$133.99

Description

Tripp Lite HDMI Display-Side Wallplate with Active Signal Booster F/F - 2 x Socket(s) - HDMI Video - White

Tripp Lite's P166-001-A HDMI Display-side Wallplate with Signal Booster increases the distance a 1080p (24Hz) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports video resolutions up to 1080p, and a maximum distance of 150 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p (24Hz) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the P166-001-A, and the shorter cable (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant.

Features
  • Extend a 1080p (24Hz) HDMI signal up to 150 ft. from the source
  • When extending a 1080p (24Hz) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD
  • 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable
  • Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
Number of HDMI Ports 2
Color White
Product Type Faceplate
Manufacturer Part Number P166-001-A
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model P166-001-A
Product Name HDMI Display-side Wallplate with Active Signal Booster (F/F)
Brand Name Tripp Lite
Limited Warranty 3 Year
Features
    • Extend a 1080p (24Hz) HDMI signal up to 150 ft. from the source
    • When extending a 1080p (24Hz) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD
    • 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable
    • Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
Mount Type Wall Mount
Total Number of Sockets 2
Package Contents
  • HDMI Display-side Wallplate
  • Signal Booster
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
