Tripp Lite PDU3XEVSR6G30B 30-Outlet PDU - Switched - IEC 60309 30A RED 3P+N+E - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
Tripp Lite PDU3XEVSR6G30B 30-Outlet PDU - Switched - IEC 60309 30A RED 3P+N+E - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
Tripp Lite PDU3XEVSR6G30B 30-Outlet PDU - Switched - IEC 60309 30A RED 3P+N+E - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant

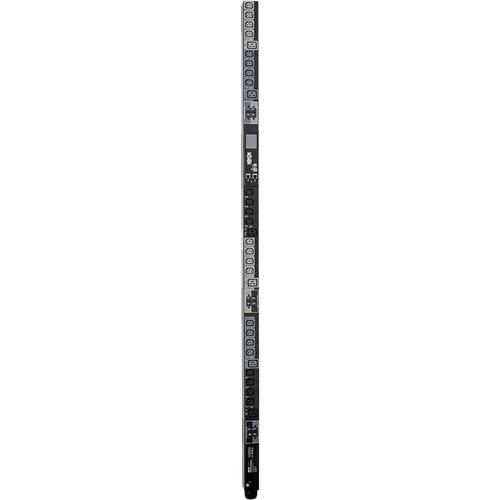

The PDU3XEVSR6G30B 17.3kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.
The 0U PDU features 30 switched 240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 1.8-meter (six-foot) cord with IEC 309 30A Red 415V plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
- 17.3kW 240V 3-phase switched 1.8m 0U PDU
- 30 individually controllable outlets-24 C13, 6 C19
- Built-in LX Platform interface for remote access 24/7
- IEC 309 30A Red 415V PDU input with 1.8m AC power cord
- Touchscreen LCD with mobile access option via QR code
| Network (RJ-45) | Yes |
| Management |
|
| Limited Warranty | 2 Year |
| Input Voltage | 415 V AC |
| Output Voltage | 240 V AC |
| Input Current | 24 A |
| Power Rating (Watt) | 17.30 kW |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| TAA Compliant | Yes |
| Product Type | PDU |
| Manufacturer Part Number | PDU3XEVSR6G30B |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite |
| Product Model | PDU3XEVSR6G30B |
| Product Name | PDU3XEVSR6G30B 30-Outlet PDU |
| Brand Name | Tripp Lite |
| Weight (Approximate) | 7.98 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.17" (55.12 mm) |
| Depth | 2.52" (64.01 mm) |
| Mounting Orientation | Vertical |
| Protection Type | Overload Protection |
| Plug/Connector Type | IEC 60309 30A RED 3P+N+E |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Switched |
| Receptacle Detail | 24 x IEC 60320 C13 |
| 6 x IEC 60320 C19 |
