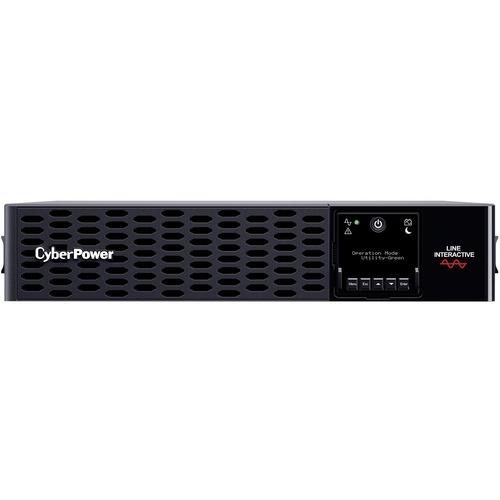

Cyber Power CyberPower UPS Systems PR3000RTXL2UN New Smart App Sinewave - Capacity: 3000 VA / 3000 W - 3000VA/3000W Sine Wave UPS 2U Rack/Tower, 8xNEMA 5-20R+1xNEMA L5-30R, NEMA L5-30P, 3Yr Wty

Cyber PowerSKU: PL5-PR3000RTXL2UN-8878ZS-0649532930487-EN
filler

Price:
Sale price$2,329.99

Description

CyberPower UPS Systems PR3000RTXL2UN New Smart App Sinewave - Capacity: 3000 VA / 3000 W - 3000VA/3000W Sine Wave UPS 2U Rack/Tower, 8xNEMA 5-20R+1xNEMA L5-30R, NEMA L5-30P, 3Yr Wty

The PR3000RTXL2UN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

The Smart App Sinewave PR3000RTXL2UN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UN.

Features
  • Capacity: 3000 VA / 3000 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 100-120 VAC ± 5%
  • Plug type & cord: NEMA L5-30P, 10 ft. cord
  • Outlet types: 8 × NEMA 5-20R; 1 x NEMA L5-30R
  • Communication: USB, Serial, SNMP, Relay, EPO
  • Management software: PowerPanel® Business
  • Remote management: Yes, pre-installed RMCARD205
  • Warranty: 3 year
Status Indicators
    • Multifunction LCD Panel
    LED Indicators:
    • Power on
    • Line mode
    • Battery mode
    • Fault
    • Night mode
    • Wiring Fault
Limited Warranty 3 Year
Directly Connected Equipment Guarantee $400000 - Lifetime
Network (RJ-45) Yes
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
Network Management SNMP/HTTP Remote Monitoring
Alarm Overheat
Overload
Over-charge
Battery Mode
Low Battery
Additional Information
    • Active PFC Compatible: Yes
    • Replacement Battery Cartridge Quantity: 1
    • Adjustable Voltage Range: 70 - 155 VAC
    • Circuit Breaker: 30A
    • Plug Style: Straight (Twist Lock)
    • Automatic Voltage Regulation: Double Boost
    • On Battery Frequency: 50/60 Hz ± 1%
    • Output Power Factor: 1
    • Overload Protection: Internal Circuitry Limiting
    • Network Protection RJ45: 1 in / 1 out
    • LCD: Multifunction LCD
    • Management Cable: USB Cable
    • SNMP / HTTP Remote Monitoring: Yes - RMCARD205 pre-installed
    • Software (Free Download): PowerPanel® Business
    • Material of Construction: Metal
    • Operating Relative Humidity: 0 - 95 % (non-condensing)
    • Operating Temperature: 32 - 104 °F (0 - 40 °C)
    • Storage Relative Humidity: 0 - 95% (non-condensing)
Certifications & Standards
    • UL1778
    • VCCI
    • FCC Class A
Country of Origin Philippines
Environmentally Friendly Yes
Environmental Certification RoHS
Energy Star Yes
Sound Emission 57.5 dB(A)
Thermal Dissipation 120.80 BTU/h
Maximum Operating Temperature 104°F (40°C)
Maximum Operating Elevation 10000 ft (3048000 mm)
Maximum Storage Elevation 50000 ft (15240000 mm)
Storage Relative Humidity 0% - 95%
Storage Temperature 5°F (-15°C) - 113°F (45°C)
Dataline Protection RJ-45
Overload Protection Yes
Plug/Connector Type NEMA L5-30P
Cord Length 10 ft
Receptacle Type NEMA L5-30R
NEMA 5-20R
EMI/RFI Noise Filter Yes
AVR Yes
Energy Saving GreenPower UPS? Bypass Technology
Number of Battery & Surge Outlets 9
Number of Critical Load Outlets 4
Transfer Time 4 ms
Receptacle Detail 1 x NEMA L5-30R
8 x NEMA 5-20R
Weight (Approximate) 34.20 kg
Color Black
Form Factor Tower/Rack Convertible
Rack Height 2U
Height 3.40" (86.36 mm)
Width 17.10" (434.34 mm)
Depth 19.70" (500.38 mm)
Product Type Line-interactive UPS
Manufacturer Part Number PR3000RTXL2UN
Manufacturer Website Address http://www.cyberpowersystems.com
Manufacturer CyberPower Systems, Inc
Product Model PR3000RTXL2UN
Product Name Smart App Sinewave PR3000RTXL2UN 3KVA Tower/Rack Convertible UPS
Product Line Smart App Sinewave
Brand Name CyberPower
Battery Chemistry Lead Acid
Hot Swappable Yes
Battery Size 12V
Battery Capacity 9000 mAh
Number of Batteries 4
Backup/Run Time (Half Load) 7 Minute
Backup/Run Time (Full Load) 1.70 Minute
Battery Characteristics Sealed
Replaceable Battery Yes
DC System Voltage 12 V DC
Typical Battery Recharge Time 3 Hour
Circuit Breaker Yes
Input Voltage 120 V AC
Output Voltage 120 V AC
110 V AC
100 V AC
Load Capacity 3 kVA/3 kW
Surge Energy Rating 2430 J
Waveform Type Sine Wave
Input Voltage Range 75 V AC 149 V AC
Output Frequency 60 Hz
Input Frequency 63 Hz
