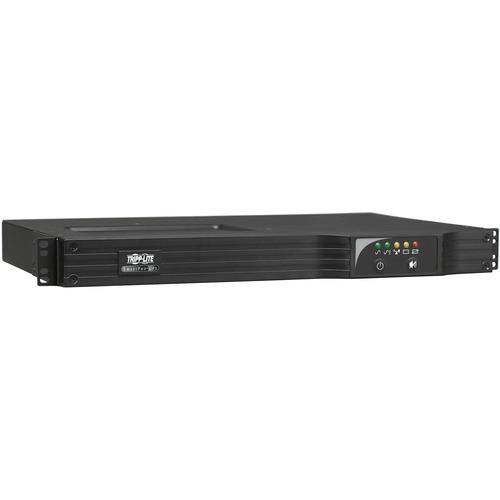

Tripp Lite SmartPro SMART500RT1UN 500VA Rack/Tower UPS - 1U Rack/Tower - AVR - 14.40 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 120 V AC, 110 V AC, 115 V AC Output - 6 x NEMA 5-15R
Tripp Lite SmartPro SMART500RT1UN 500VA Rack/Tower UPS - 1U Rack/Tower - AVR - 14.40 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 120 V AC, 110 V AC, 115 V AC Output - 6 x NEMA 5-15R
Tripp Lite SmartPro SMART500RT1UN 500VA Rack/Tower UPS - 1U Rack/Tower - AVR - 14.40 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 120 V AC, 110 V AC, 115 V AC Output - 6 x NEMA 5-15R
500VA/300W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
The SmartPro® line-interactive SMART500RT1UN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The seven-outlet 120V battery backup is ideal protection for rack-mount equipment in your server room or network closet.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep a half load (150W) powered as long as 14 minutes and a full load (300W) up to three minutes.
Included WEBCARDLX Network Interface Offers 24/7 Access
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimal communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
6 NEMA Outlets Protect Your Connected Components
Six 5-15R outlets provide battery backup, 567 joules of surge protection and voltage regulation for your crucial components. Five are UPS-supported, and one is surge-only to connect peripherals not requiring battery backup. One UPS-supported outlet is switchable, allowing you to power its connected device on and off remotely to reset or reboot it or to shed a less significant load to extend battery runtime for more critical equipment.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART500RT1UN maintains regulated 120V nominal output during brownouts as low as 90V, while keeping the battery fully charged and ready to take over in case of power failure. The internal batteries are field-replaceable and hot-swappable.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Designed for High Efficiency to Help You Save Money and Protect the Environment
A 96% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
LED Indicators and Audible Alarms Keep You Informed
Five front-panel LEDs keep you apprised of line power, battery power, overload, voltage regulation and battery low/replace status at a glance. A multi-function alarm sounds to warn you of power failure, overload and low-battery conditions.
- Rack-mount UPS offers complete power protection for small network applications, including telecom, security and digital signage.
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Maintains continuous 120V nominal output during brownouts and overvoltages
- Included WEBCARDLX network interface allows you 24/7 remote access from anywhere
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- $250,000 Ultimate Lifetime Insurance
| Status Indicators |
LED Indicators: |
| Limited Warranty | 3 Year |
| Thermal Dissipation | 44 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Network Management | SNMP/Telnet/SSH |
| Alarm | Power Failure |
| Low Battery | |
| Overload |
| Application/Usage | Telecommunication |
| Business | |
| Desktop Computer | |
| Digital Signage | |
| Electronic | |
| Mission Critical Equipment | |
| Network Closet | |
| POS Terminal | |
| Security System | |
| Server Room | |
| VoIP | |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Number of Surge-only Outlets | 1 |
| Transfer Time | 4 ms |
| Receptacle Detail | 6 x NEMA 5-15R |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 14 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 14.40 Hour |
| Weight (Approximate) | 7.98 kg |
| Form Factor | Rack/Tower |
| Rack Height | 1U |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 11.26" (286 mm) |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART500RT1UN |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite |
| Product Model | SMART500RT1UN |
| Product Name | SmartPro SMART500RT1UN 500VA Rack/Tower UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| 115 V AC | |
| 110 V AC | |
| Load Capacity | 500 VA/300 W |
| Surge Energy Rating | 567 J |
| Waveform Type | Sine Wave |
| Input Frequency | 60 Hz |
