Description

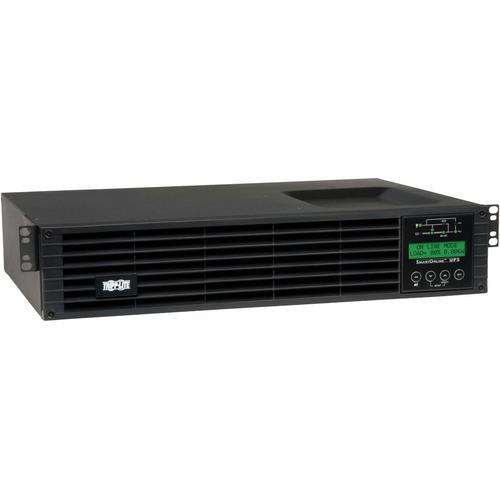

Tripp Lite SmartOnline SU1000RTXLCD2UN 1000VA Rack-mountable UPS - 2U Rack-mountable - 3 Hour Recharge - 4.80 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 127 V AC Output - 6 x NEMA 5-15R
Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss
This 100/110/120/127V 50/60 Hz UPS system with IGBT technology maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in online and battery modes. Featuring a 900W capacity, high 0.9 power factor, 570 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer time to battery mode in on-line double-conversion mode, the SmartOnline® SU1000RTXLCD2UN double-conversion UPS provides the highest level of AC power protection and battery backup for critical network closet, computer room and data center equipment.
Individually Controllable Load Banks Let You Access and Control Outlets Remotely
Two NEMA 5-15R outlets are split into two switchable single-outlet load banks, allowing you to reboot select components or shed loads remotely. In addition to those two outlets, this UPS provides four more 5-15R outlets for powering critical components.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides 14 minutes of support at half load (450W) and 4.8 minutes at full load (900W), keeping protected equipment operational through power failures. For mission-critical applications demanding scalable extended runtime, the UPS supports external battery packs, such as Tripp Lite's BP24V15RT2U (sold separately). The intelligent battery management system with temperature-compensated charging extends battery life.
ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.
Automatically Turns Back On After Power Is Restored
Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement.
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The front-panel LCD features nine selectable screens of UPS data (including load, voltage and battery data) and 16 screens of configuration and setup options. LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, ECO mode operation, bypass mode operation and AC output status.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. An EPO port connects the UPS to a contact closure switch to enable emergency inverter shutdown. Cables are included.
WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
The SU1000RTXLCD2UN includes the Java-free HTML5-based WEBCARDLX that enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. WEBCARDLX allows you to use the Auto Probe feature, which can prevent costly service calls by automatically rebooting non-responsive network devices.
- Offers network-grade protection against power failures and voltage fluctuations
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Optional external battery packs provide additional runtime for applications requiring it
- Included WEBCARDLX network interface allows you 24/7 remote access from anywhere
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
Status Indicators |
7 Front Panel LEDs Indicator: Front Panel LCD Display: |
Limited Warranty | 2 Year |
Serial Port | Yes |
EPO Port | Yes |
USB (HID Compliant) Port | Yes |
Sound Emission | 50 dB(A) |
Maximum Operating Temperature | 104°F (40°C) |
Maximum Operating Elevation | 10000 ft (3048000 mm) |
Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
Package Contents |
|
Country of Origin | United States |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Energy Star | Yes |
Hot Swappable | Yes |
Backup/Run Time (Half Load) | 14 Minute |
Backup/Run Time (Full Load) | 4.80 Minute |
Replaceable Battery | Yes |
DC System Voltage | 24 V DC |
Typical Battery Recharge Time | 3 Hour |
Application/Usage | Mission Critical Equipment |
Network Closet | |
Server | |
Computer Room | |
Data Center | |
Dataline Protection | RJ-11 |
RJ-45 | |
Overload Protection | Yes |
Plug/Connector Type | NEMA 5-15P |
Phase | Single Phase |
Receptacle Type | NEMA 5-15R |
EMI/RFI Noise Filter | Yes |
Energy Saving | Green Energy-Saving |
Transfer Time | 0 ns |
Receptacle Detail | 6 x NEMA 5-15R |
Weight (Approximate) | 13.15 kg |
Form Factor | Rack-mountable |
Rack Height | 2U |
Height | 3.50" (89 mm) |
Width | 17.52" (445 mm) |
Depth | 12.52" (318 mm) |
Network Management | SNMP/HTTP Remote Monitoring |
Alarm | UPS StartUp |
Low Battery | |
Overload | |
Power Failure | |
Remote Shutdown | |
UPS Fault |
Product Type | Dual Conversion Online UPS |
Manufacturer Part Number | SU1000RTXLCD2UN |
Manufacturer Website Address | http://www.tripplite.com |
Manufacturer | Tripp Lite |
Product Model | SU1000RTXLCD2UN |
Product Name | SmartOnline SU1000RTXLCD2UN 1000VA Rack-mountable UPS |
Product Line | SmartOnline |
Brand Name | Tripp Lite |
Input Voltage | 120 V AC |
Output Voltage | 127 V AC |
115 V AC | |
100 V AC | |
110 V AC | |
Load Capacity | 1 kVA/900 W |
Surge Energy Rating | 570 J |
Waveform Type | Pure Sine Wave |
Output Frequency | 60 Hz |
